Setting the Units (units)

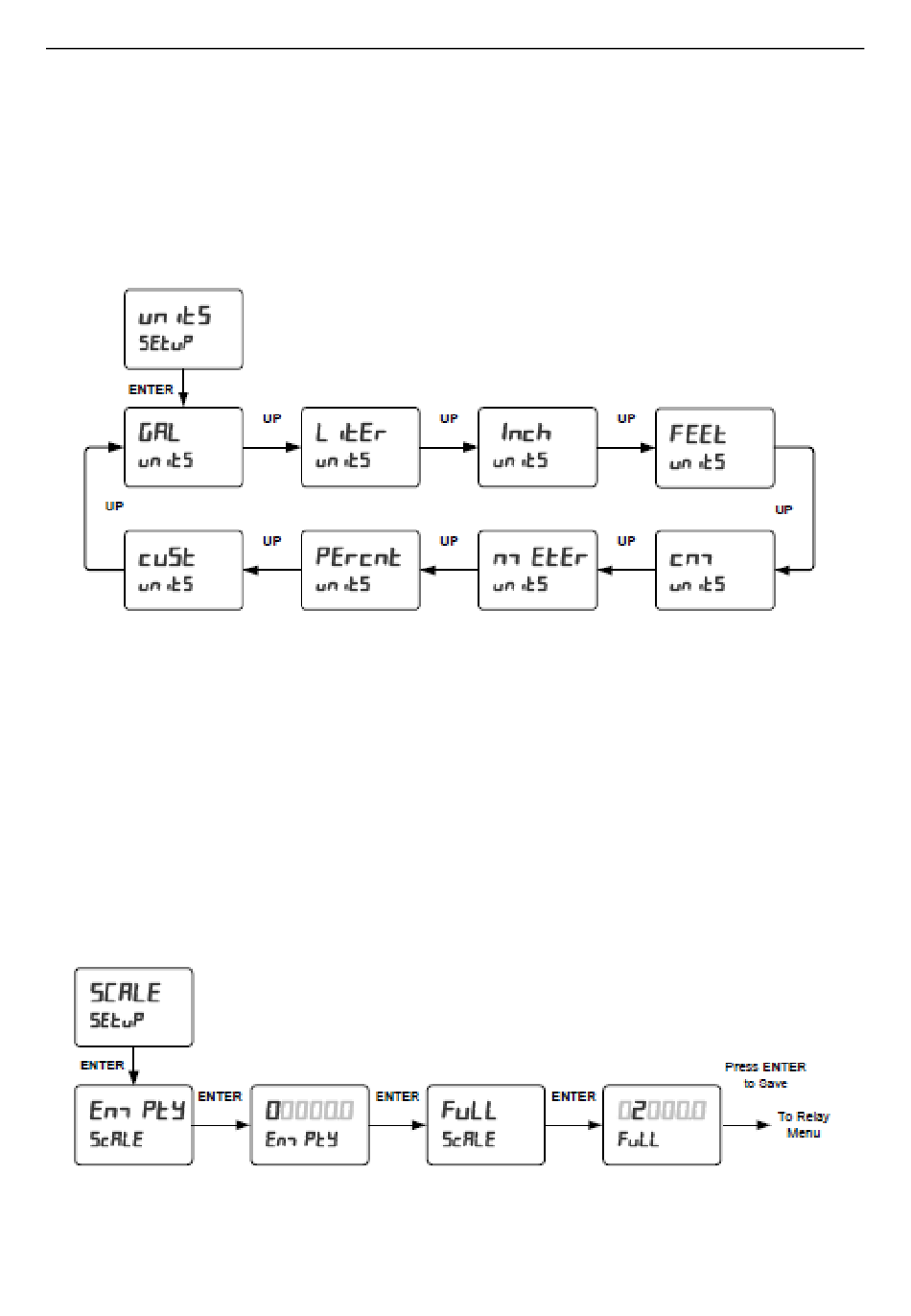

Select units from list or enter a custom tag to be shown on the lower display.
Press the Up button to scroll through the unit choices. Press Enter to accept unit
choice.
For custom units press the Up button to scroll through characters. Press the
Right button to move to the next segment. Up to six characters may be
configured for units. Press Enter to accept settings.

Setting the Decimal Point (dEc pt)

To set the decimal point see page 44 for details.

Scaling the Meter (SCALE)

The process input (4-20 mA, ±10 VDC) can be scaled to display the
process variable in engineering units.
A signal source is not needed to scale the meter; simply program the
inputs and corresponding display values.
Enter the Empty value for when the input is 4 mA. Enter the Full value
for when the input is 20 mA.
