Setting The Relay Action - FlowLine DataView LI55 Instruction Manual

DataView™ LI55 Level Controller

Setting the Relay Action

Operation of the relays are programmed in the Action menu. The relays may be
set up for any of the following modes of operation:
1. Automatic reset (non-latching) [default & typical for most applications]
2. Automatic + manual reset at any time (non-latching)
3. Latching (manual reset only, at any time)
4. Latching with Clear (manual reset only after alarm condition has
cleared)
5. Pump alternation control (automatic reset only)
6. Sampling (the relay is activated for a user-specified time)
7. Off (relay state controlled by Interlock feature)

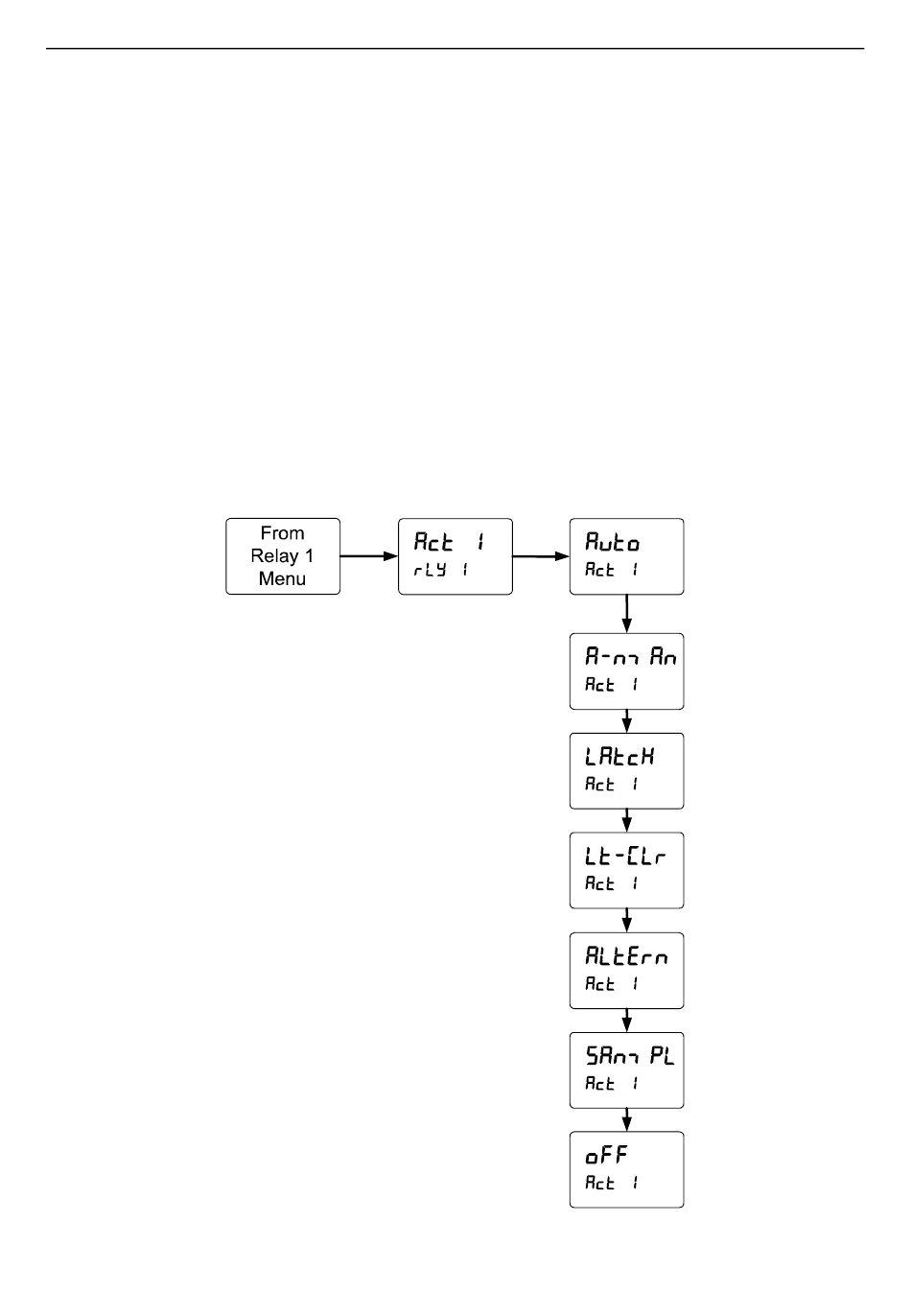

The following graphic shows relay 1 action setup; relay 2-8 are set up in a similar
fashion.
