RELAY AND ALARM OPERATION DIAGRAMS

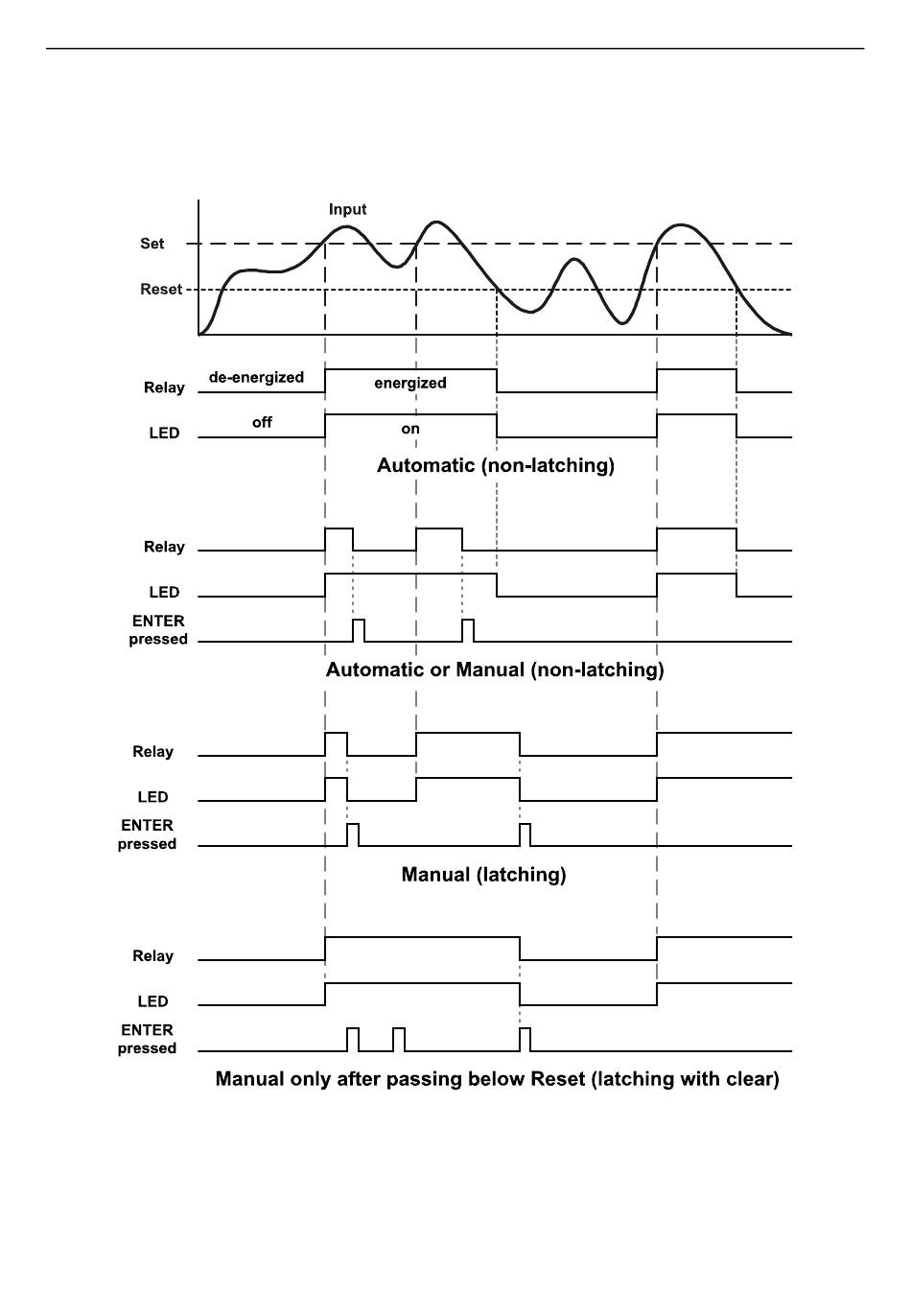

The following graphs illustrate the operation of the relays, status LEDs, and

ENTER button.

High Alarm Operation (Set > Reset)

For Manual reset mode, ENTER can be pressed anytime to turn "off" relay. To

detect a new alarm condition, the signal must go below the set point, and then go

above it.
