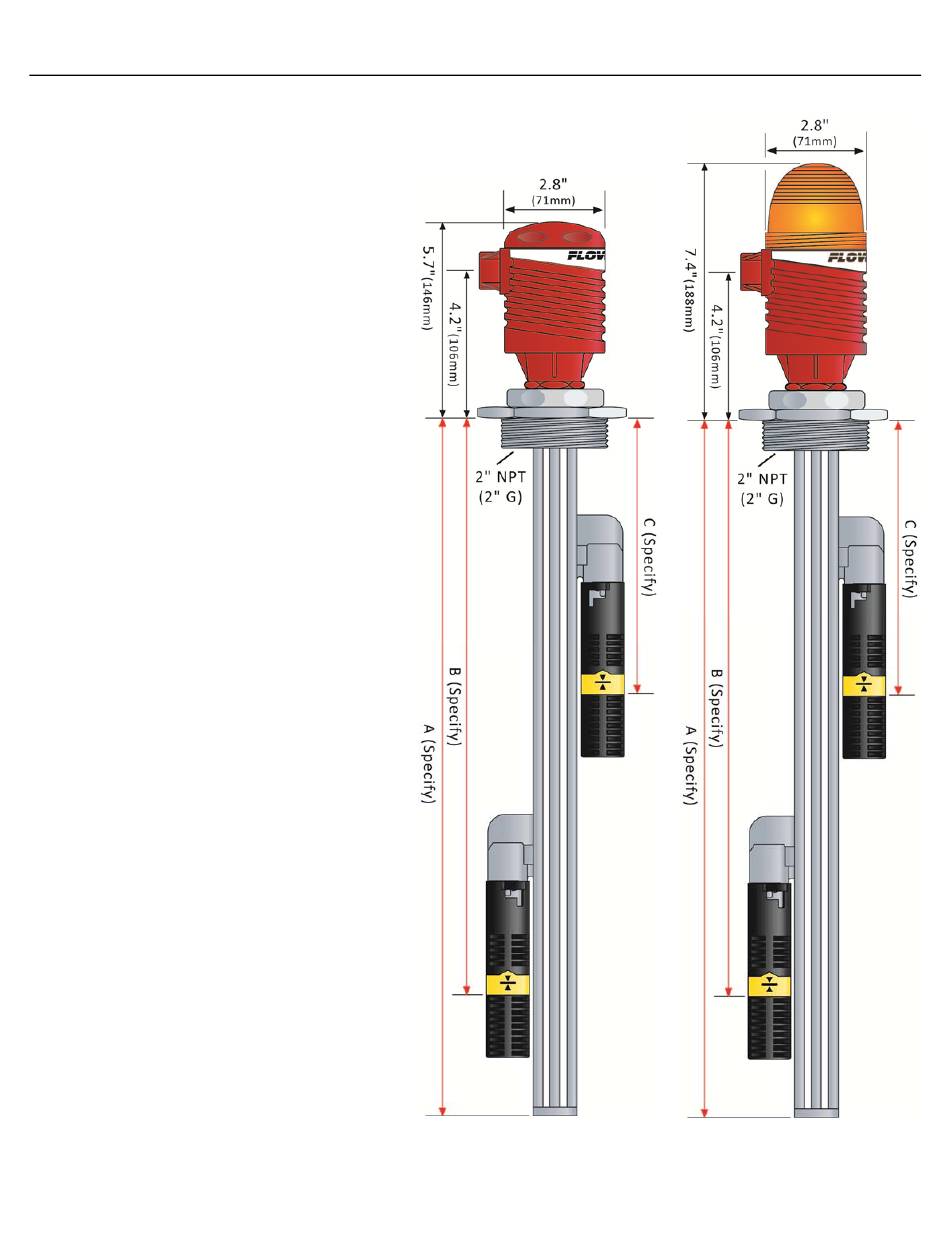

Specifications / Dimensions
Length:
Switch points:
Orientation:
Supply voltage:
Consumption:
Sensor supply:
LED indication:
Contact type:
Contact rating:
Contact output:
Contact delay:
Contact latch:
Process temp.:
Electronics temp.:
Pressure:
Wetted material:
Enclosure rating:
Enclosure material:
Process mount.:
Enclosure rotation:
Conduit entrance:
Installed height:
Classification:
Certificate number:
CE compliance:
Strobe Alert
Flash type:
Flash frequency:
Strobe life:
Supply voltage:
Consumption:
Material:
Enclosure rating:
Color:
MN301410 Rev A
8" (20cm) to 10' (3m)
2 (field adjustable)
± 20° from vertical
120 / 240 VAC, 50 -
60 Hz.
0.25A maximum
13.5 VDC @ 27 mA
Sensor, relay &
power status
(1) SPDT Relay,
Latched
250 VAC, 16A
Selectable NO or NC
0 to 60 seconds
Select On/Off
F: -40°to 176°
C: -40°to 80
F: -40°to 158°
C: -40°to 70°
Atmospheric
PP (20% glass filled)
NEMA 4X (IP65)
PP(U.L. 94 VO)
2" NPT (2" G)
300°swivel base
Single, 1/2" NPT
5.7" (14.4cm)"
7.4" (18.8cm) with
strobe
General purpose
LR 79326-3
EN 61326 EMC
EN 61010-1 Safety
Xenon tube
1 per second
10M cycles
120 VAC, 50-60 Hz.
3 Watts max.
Polycarbonate
NEMA 4X (IP65)
Amber
Without Strobe Alert
Step Two
With Strobe Alert
3 |
