Specifications / Dimensions

SPECIFICATIONS:

Controller
Supply voltage:
Consumption:
Sensor inputs:
Sensor supply:
LED indication:
Contact type:
Contact rating:
Contact output:
Contact delay:
Contact latch:
Electronics temp.:
Enclosure rating:
Enclosure material:
Enclosure mount.:
Enclosure rotation:
Conduit entrance:
Certificate number:
CE compliance*:
* Non-CE versions will not have CE mark
Strobe Alert
Flash type:
Flash frequency:
Strobe life:
Supply voltage:
Consumption:
Material:
Enclosure rating:
Color:
MN301510 Rev A1
120 / 240 VAC, 50 - 60 Hz.
5 Watts max.
LC10: (1) level switch
LC11: (1 or 2) level switches
13.5 VDC @ 27 mA
Sensor, relay & power status
LC10: (1) SPDT Relay
LC11: (1) SPDT Relay, Latched
250 VAC, 16A – Non CE
250 VAC, 12A – CE version
Selectable NO or NC
0 to 60 seconds
Select On/Off – (LC11 series only)
F: -40°to 158°
C: -40°to 70°
NEMA 4X (IP65)
-10_1: PP(U.L. 94 VO)
-10_2: PP(U.L. 94 VO) & Polycarbonate
¾" NPT (¾" Rc)
300°swivel base
Single, 1/2" NPT
LR 79326-3
EN 61326 EMC
EN 61010-1 Safety
Xenon tube
1 per second
10M cycles
120 VAC, 50-60 Hz.
3 Watts max.
Polycarbonate
NEMA 4X (IP65)
Amber

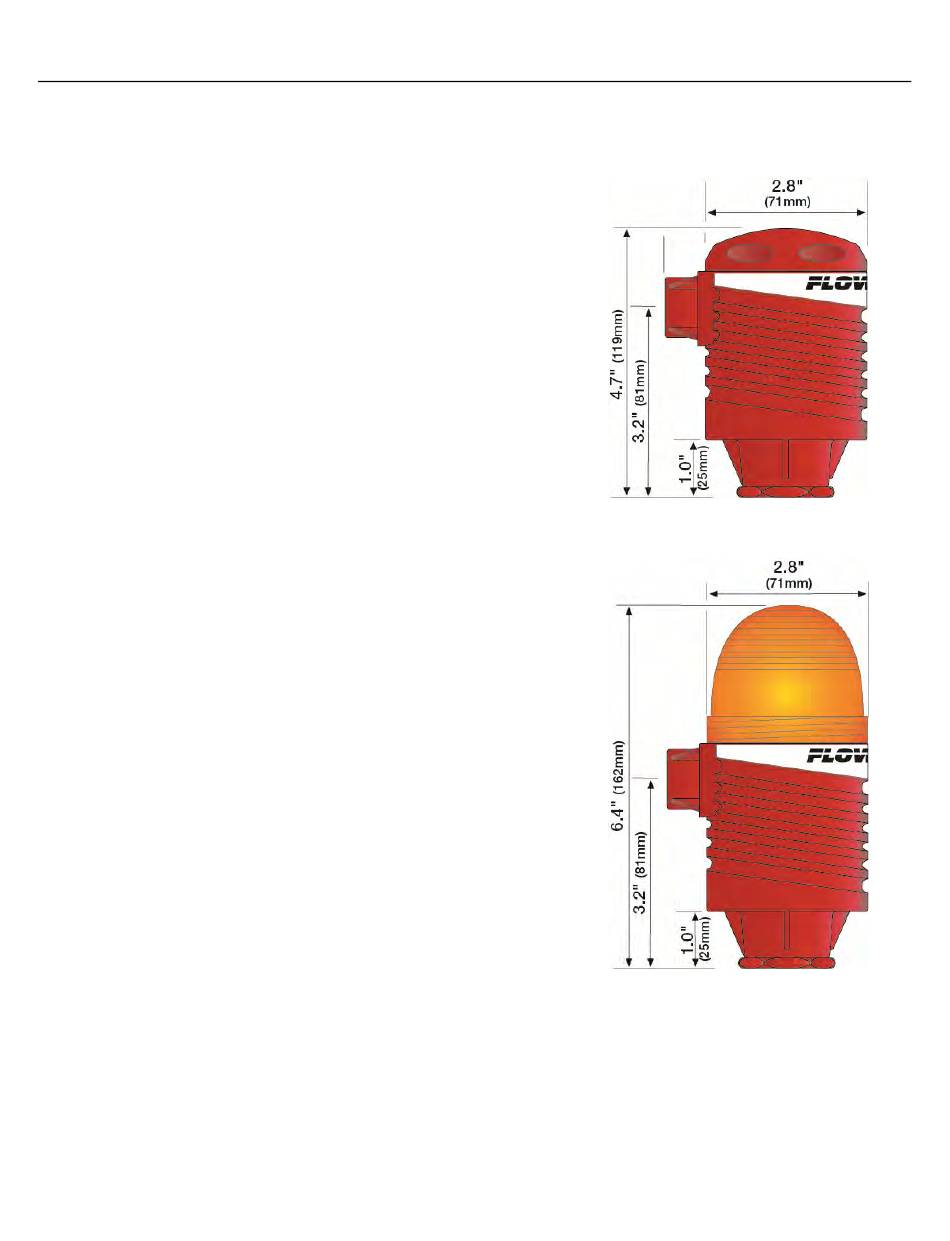

DIMENSIONS:

Side View
LC10 & LC11 Series
Side View
LC10 & LC11 Series with Strobe Alert
