SPECIFICATIONS

Step One
Specifications:
Length: 6" to 10' (15 cm to 3m)
Switch points: 1 (set by factory)
Orientation: ± 30˚ vertical
Supply voltage: 120/240 VAC @ 50-60 Hz.
Contact type: (1) SPDT relay
Contact rating: 250 VAC @ 10A
Contact delay: 0-60 seconds
LED indication: Power, relay and sensor status
Strobe type: _21_: Xenon tube
_22_: N/A
Strobe flash: _21_: 1 per second
_22_: N/A
Process temp.: F: -40˚ to 194˚
C: -40˚ to 90˚
Electronics temp.: F: -40˚ to 140˚
C: -40˚ to 60˚
Pressure: AU13: 150 psi (10 bar)
AZ13: 150 psi (10 bar)
AV13: 25 psi (1.7 bar)
Wetted material: 42__: PP
52__: PVDF Kynar®
Process mount: _2_3: 2" NPT
_2_7: 1 1/2" G
Enclosure rating: NEMA 4X (IP65)

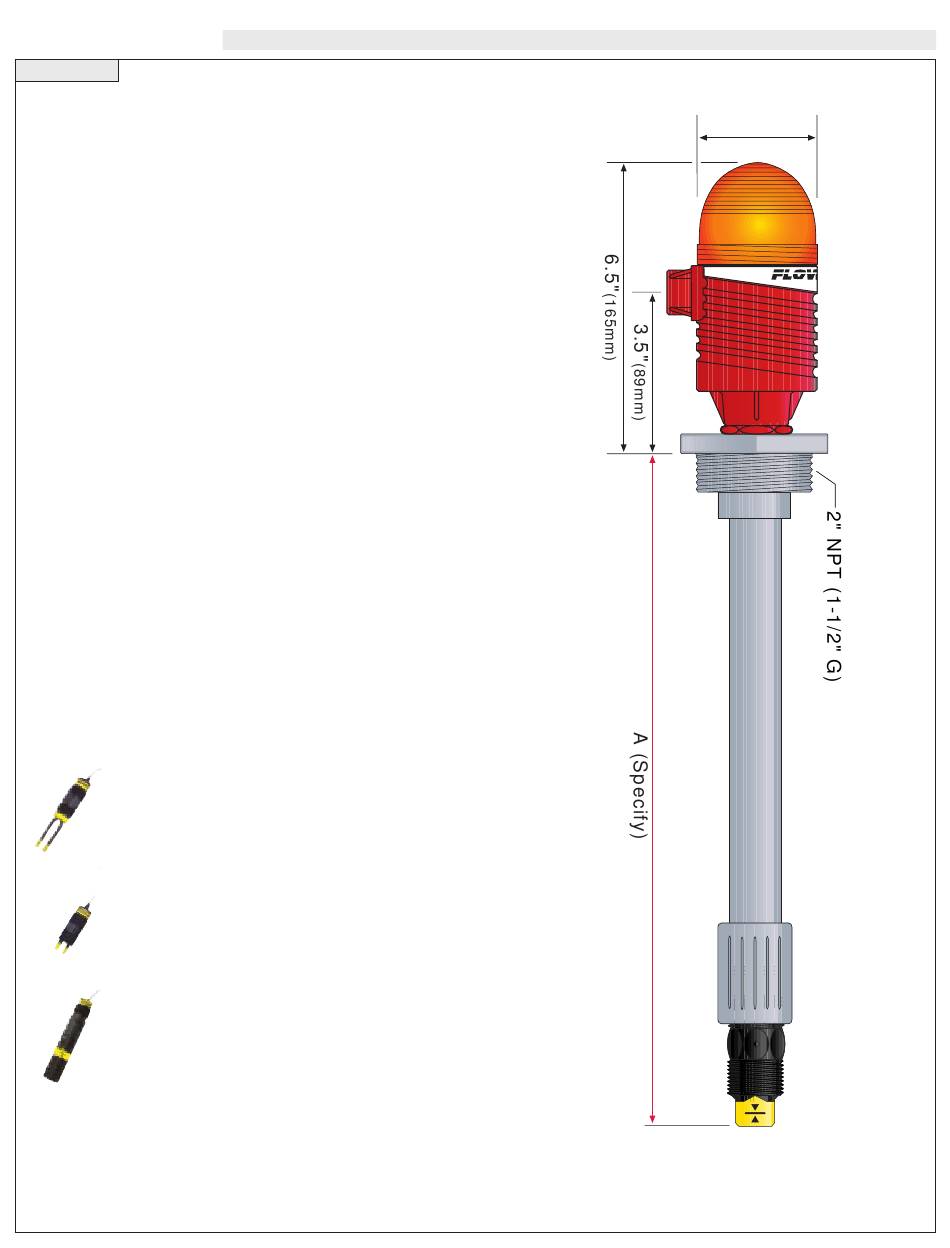

Installed height: _21_: 6.5" (16.5 cm)
_22_: 4.9" (12.4 cm)
Encl. material: _21_: PP, UL94VO and polycarbonate
_22_: PP, UL94VO
Conduit entrance: Single, 1/2" NPT
Classification: General purpose
CE compliance: EN 50082-2 immunity
EN 55011 emission
EN 61010-1 safety
Sensor Technologies:
Vibration (LZ10 series)
Typically applied in wastewater media with light coat-
ing and/or foaming characteristics
Ultrasonic (LU10 series)
Broadly applied in chemical, solvent, hydrocarbon and
light weight oil media
Buoyancy (LV10 series)
Best applied in clean water or water-like chemical
media that is non-coating or scaling
2.8"
(
71mm)
