FlowLine DataView LI55 Series Quick Start Manual

Level controller
Hide thumbs Also See for DataView LI55 Series:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual

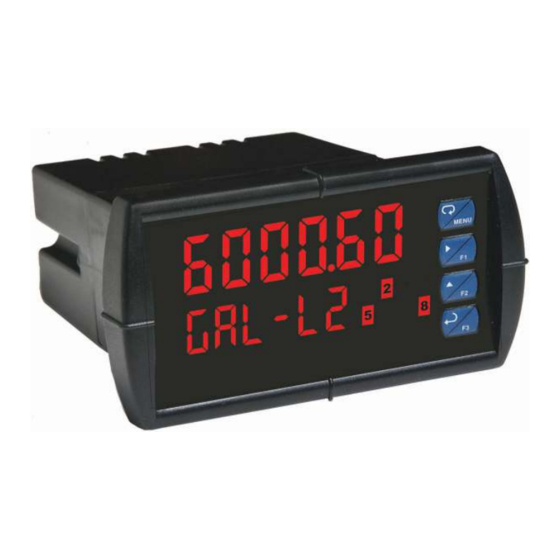

DataView™ Level Controller
The LI55 Quick Start demonstrates the more common level solution setups with the LI55. If you run into an issue
that is not addressed in this quick start or wish to set up with a non-standard configuration, please address the
LI55 Manual at
www.flowline.com
www.flowline.com
Model: LI55
Quick Start
Welcome to the LI55 Quick Start
10500 Humbolt St. • Los Alamitos CA 90720 USA
Tel (562) 598-3015 • Fax (562) 431-8507

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DataView LI55 Series and is the answer not in the manual?

Questions and answers

Related Manuals for FlowLine DataView LI55 Series

Summary of Contents for FlowLine DataView LI55 Series

  • Page 1 LI55 Manual at www.flowline.com 10500 Humbolt St. • Los Alamitos CA 90720 USA Tel (562) 598-3015 • Fax (562) 431-8507...

  • Page 2: Limited Warranty

    Flowline, Inc. warrants this product against defects in material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Flowline’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit.

  • Page 3: Ordering Information

    DataView™ LI55 Level Controller Quick Start We Do Your Level Best Thank you for purchasing the Dataview™ Analog Input Display (LI55). The LI55 Series is a multipurpose, easy to use digital process meter ideal for level applications. It accepts current signals (4-20 mA) and has four front panel buttons for configuration of the display.

  • Page 4: Mounting The Panel

    For most users, installation can be done without opening the case. It will only require opening when changing from a mA to voltage configuration (refer to the full manual found on-line at www.flowline.com). When unpacking the Dataview, thoroughly inspect the unit for any damage that may have occurred during shipping.

  • Page 5: Configuration For 12 Or 24 Vdc Power

    DataView™ LI55 Level Controller Quick Start Configuration for 12 or 24 VDC Power The DataView allows for either a 12 or 24 VDC power option and comes shipped from the factory ready to operate from 24 VDC. DO NOT exceed these voltage ratings for the DataView. To configure the DataView for 12 VDC power: 1.

  • Page 6: Transmitter Supply Voltage Selection (P+, P-)

    3. Slide out the back cover by about 1 inch. 4. Configure the J4 jumper, located behind the input signal connector, for the desired excitation voltage as shown. Transmitter Supply Voltage Selection (Do not change if using a Flowline 4-20 mA transmitter) 6 | P a g e...
  • Page 7 The connectors’ label shows the function of each of the connections, such as POWER, RELAY, SIGNAL, etc. The RJ-45 M-LINK connection is intended for Flowline expansion modules, cables, or meters ONLY. Any other use of the DataView's RJ-45 connection may damage the DataView and any equipment connected thereto.

  • Page 8: Power Connections

    SIGNAL. The COM (common) terminal is the return for the 4-20 mA and the 10 V input signals. The 2-wire connection is the most common for Flowline products (EchoPod, EchoSonic II, EchoSpan, EchoSafe, Echotouch (LU20 series only), DeltaSpan and FloaTek series).
  • Page 9 DataView™ LI55 Level Controller Quick Start Wiring for Current Inputs The following figures show examples of current and voltage connections. There are no switches or jumpers to set up for current and voltage inputs. Setup and programming is performed through the front panel buttons. Most common wiring DataView 2-Wire DataView 3-Wire...

  • Page 10: Relay Connections

    DataView™ LI55 Level Controller Quick Start Wiring for Current and Voltage Inputs The figures shown below are examples of voltage connections. See the section 'Transmitter Supply Voltage Selection' for possible jumper setting with voltage connections. Current reception is protected against overload by a resettable fuse.

  • Page 11: Switching Inductive Loads

    DataView™ LI55 Level Controller Quick Start Switching Inductive Loads Suppressors (snubbers) prevent microprocessor disruption and prolong the life of the relay contacts and should always be employed. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies.

  • Page 12: Analog Output Transmitter Power Supply

    DataView™ LI55 Level Controller Quick Start Repeater Output Wiring (4-20 mA Output Connections) Connections for the 4-20 mA transmitter output to transmitters or other devices are made to the connector terminals labeled MA OUT. The 4-20 mA output may be powered internally or from an external power supply. ...
  • Page 13 DataView™ LI55 Level Controller Quick Start The DataView Interface The Dataview is factory calibrated to read 4-20 mA inputs. The calibration equipment is certified to NIST standards. Overview There are no jumpers to set for the meter input selection. All setup and configuration are performed through the front panel interface.

  • Page 14: Front Panel Operation

    DataView™ LI55 Level Controller Quick Start Front Panel Operation Display (Two-Line Display)  The top line displays the level or volume of the tank.  The bottom line displays the units for the level or volume of the tank. The DataView has 7 preset units [Gallons (GAL), Liters (LitEr), Inches (IncH), Feet (FEEt), Centimeters (cm), Meters (mEtEr) and Percent (PErcnt)] and a custom function [Custom (CuSt)] to configure any other set of units...
  • Page 15 DataView™ LI55 Level Controller Quick Start Buttons Down the right side of the Dataview's front panel are four buttons. It is through these buttons that you will set up and configure the DataView. These buttons are explained as follows: Menu Use this button to enter or exit the DataView's configuration mode, view settings, or access advanced features.

  • Page 16: Setup And Configuration

    DataView™ LI55 Level Controller Quick Start Setup and Configuration This section will take you through the 6 key steps in setting up and programming the DataView (some configurations of DataView will not use all 6 steps). Select and set Units of operation (unitS) This step determines the units of operation for the display.

  • Page 17: Main Menu Overview

    DataView™ LI55 Level Controller Quick Start Main Menu Overview The Main Menu contains all of the most commonly used features of the DataView meter.  Press Menu button to enter the main menu then press the Up arrow button to scroll main menu. ...

  • Page 18: Setting Numeric Values

    DataView™ LI55 Level Controller Quick Start Main Menu To enter Dataview’s Main Configuration menu, press the MENU button. With the UP arrow, you can scroll through six menu options: Units (units), Decimal Point (dEc Pt), Scale (SCALE), Relay (rELAY), Analog Output (Aout) and Password (PASS 1).
  • Page 19 DataView™ LI55 Level Controller Quick Start Setting the Units of Operation ( units The LI55 series can show level (ex. InCHES, cm, FEEt, Meter, etc) or Volume (GAL, LItErS, etc.) or any other engineering units. Please determine the units of operation that you want to appear on the display. The units chosen will not only represent the displayed values, but also the settings for the relay(s) and the repeater output.

  • Page 20: Setting The Decimal Point

    DataView™ LI55 Level Controller Quick Start Setting the Decimal Point ( dEc pt The decimal point may be set to as many as five decimal places. Use the Decimal Point feature to position the decimal point for all values displayed. Placement of the decimal point can influence the displayed output of your process.
  • Page 21 DataView™ LI55 Level Controller Quick Start Setting the SCALE Function ( SCALE The DataView displays information about tank contents in engineering units. The display uses a two point linearization based upon Empty and Full settings. Although a signal source is not needed to scale the meter, you will need to configure the sensor connected to the display to reflect a 4-20 mA current span...
  • Page 22 DataView™ LI55 Level Controller Quick Start 22 | P a g e...
  • Page 23 DataView™ LI55 Level Controller Quick Start Setting the Relay Display ( Relay This step sets when the relay will energize (SET#) and de-energize (RST#). See below for example of common relay configurations.  Note: All the settings are based on the units of liquid defined in the previous scale section.
  • Page 24 DataView™ LI55 Level Controller Quick Start  For high level alarms, use the SET# to indicate the level setting where the relay will turn on and the RST# to indicate the level setting where the relay will turn off. Note: The RST# setting should be a lower setting than the SET#.
  • Page 25 DataView™ LI55 Level Controller Quick Start Scroll through the Relays, usually 1-4, using the Up button. Press the ENTER button to select a Relay. The Relay Set Point (SEt #) will appear. Press the ENTER button again to view the Relay Set Point (SEt #) for the relay.
  • Page 26 DataView™ LI55 Level Controller Quick Start How to Configure the Repeater / Analog Output ( Aout With an optional repeater output, you can transmit the 4-20 mA signal to another device, such as another display, a PLC, a chart recorder, etc. The repeater/analog output can be scaled in two ways: Identical to the 4-20 mA input signal.
  • Page 27 DataView™ LI55 Level Controller Quick Start To set the Repeater / Analog Output: Note: Before configuring the Analog Output, make sure the Scale has been completed. Press the MENU button to enter the Main Menu. Units (unitS) will be the first operation available. Press the Up button to scroll through the menu options until you reach Analog Output (Aout).
  • Page 28 DataView™ LI55 Level Controller Quick Start How to Set a Password ( pass 1 The Password menu is used for programming a 6-digit password to prevent unauthorized changes to the programmed parameter settings. Record the password for future reference. If appropriate, it may be recorded in the space provided.

  • Page 29: Disabling Password Protection

    DataView™ LI55 Level Controller Quick Start Making Changes to a Password Protected Meter If the meter is password protected, the meter will display the message Locd (Locked) when the Menu button is pressed. Press the Enter button while the message is being displayed and enter the correct password to gain access to the menu.
  • Page 30 DataView™ LI55 Level Controller Quick Start Press the Up button to scroll through the menu options until you reach Password (PASS 1). Press the ENTER button to enter a password. 000000 will appear. Enter the correct password again using the Right button to move the highlighted digit to the right and the Up button to increase the setting’s value.

  • Page 31: Reset Meter To Factory Defaults

    DataView™ LI55 Level Controller Quick Start Reset Meter to Factory Defaults When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults. Instructions to load factory defaults: Press and hold MENU button for 5 seconds to enter the Full Main menu.
  • Page 32 Flowline for a period, which is equal to the shorter of one year from the date of purchase of such products or two years from the date of manufacture of such products.
