DataView™ LI55 Level Controller

Signal Loss or Loop Break Relay Operation

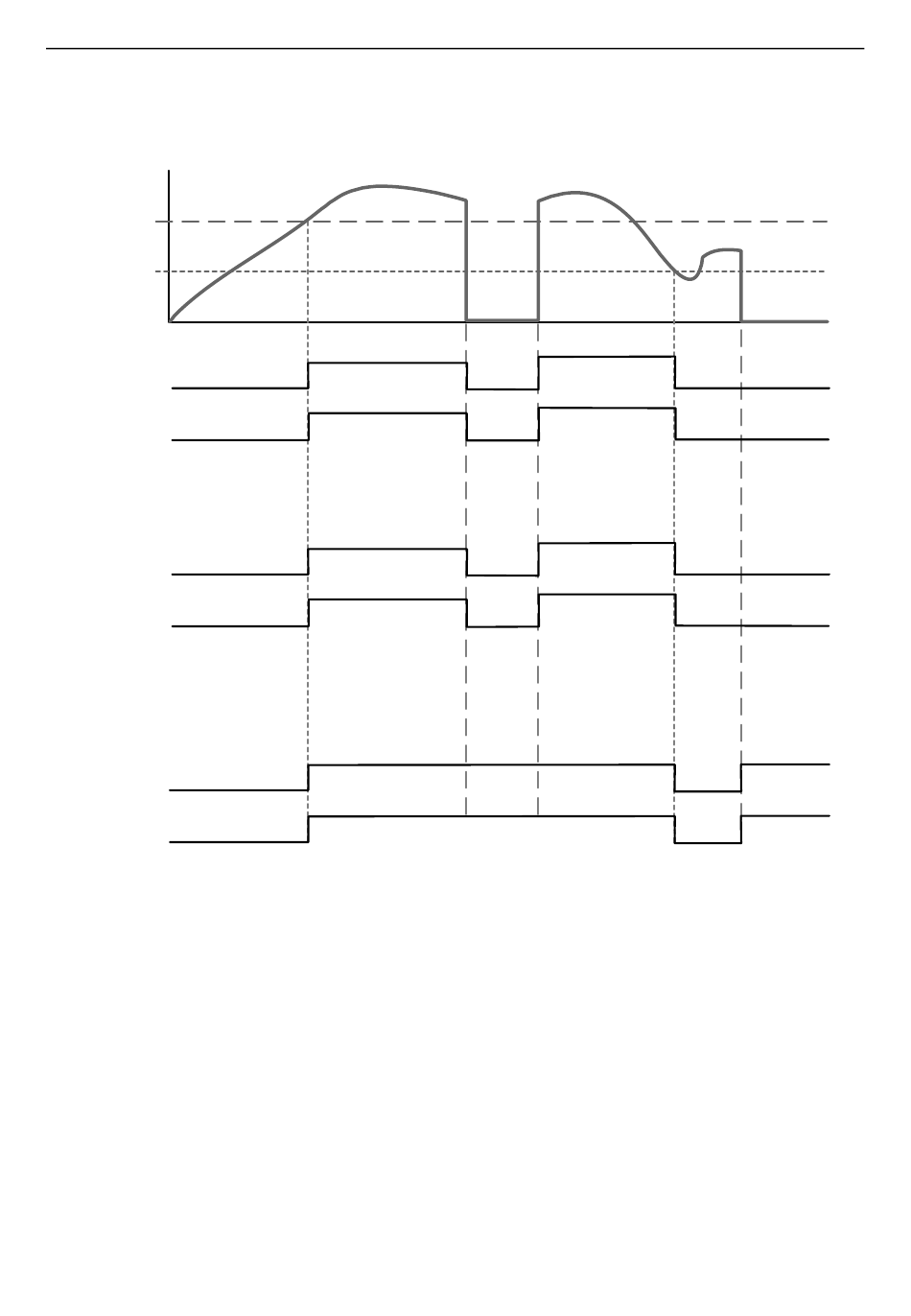

The following graph shows the loop break relay operation for a high alarm relay.
Set
Reset
de-energized
Relay
LED
Relay
LED
Relay
LED
When the meter detects a break in the 4-20 mA loop, the relay will go to one of
the following selected actions:
1.
Turn On (Go to alarm condition)
2.
Turn Off (Go to non-alarm condition)
3.
Ignore (Processed as a low signal condition)
MN301033 Rev B1
Input
energized
off
on
Loop Break = Ignore
Loop Break = Off
Loop Break = On
Instruction Manual
61
