Connections; Figure 6. Transmitter Supply Voltage Selection - FlowLine DataView LI55 Instruction Manual

DataView™ LI55 Level Controller
Transmitter Supply Voltage Selection (P+, P-)
All meters, including models equipped with the 12/24 VDC power option, are
shipped from the factory configured to provide 24 VDC power for the transmitter
or sensor.
If the transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must be
configured accordingly.
To access the voltage selection jumper:
1. Remove all the wiring connectors.
2. Unscrew the back cover.
3. Slide out the back cover by about 1 inch.
4. Configure the J4 jumper, located behind the input signal
connector, for the desired excitation voltage as shown.

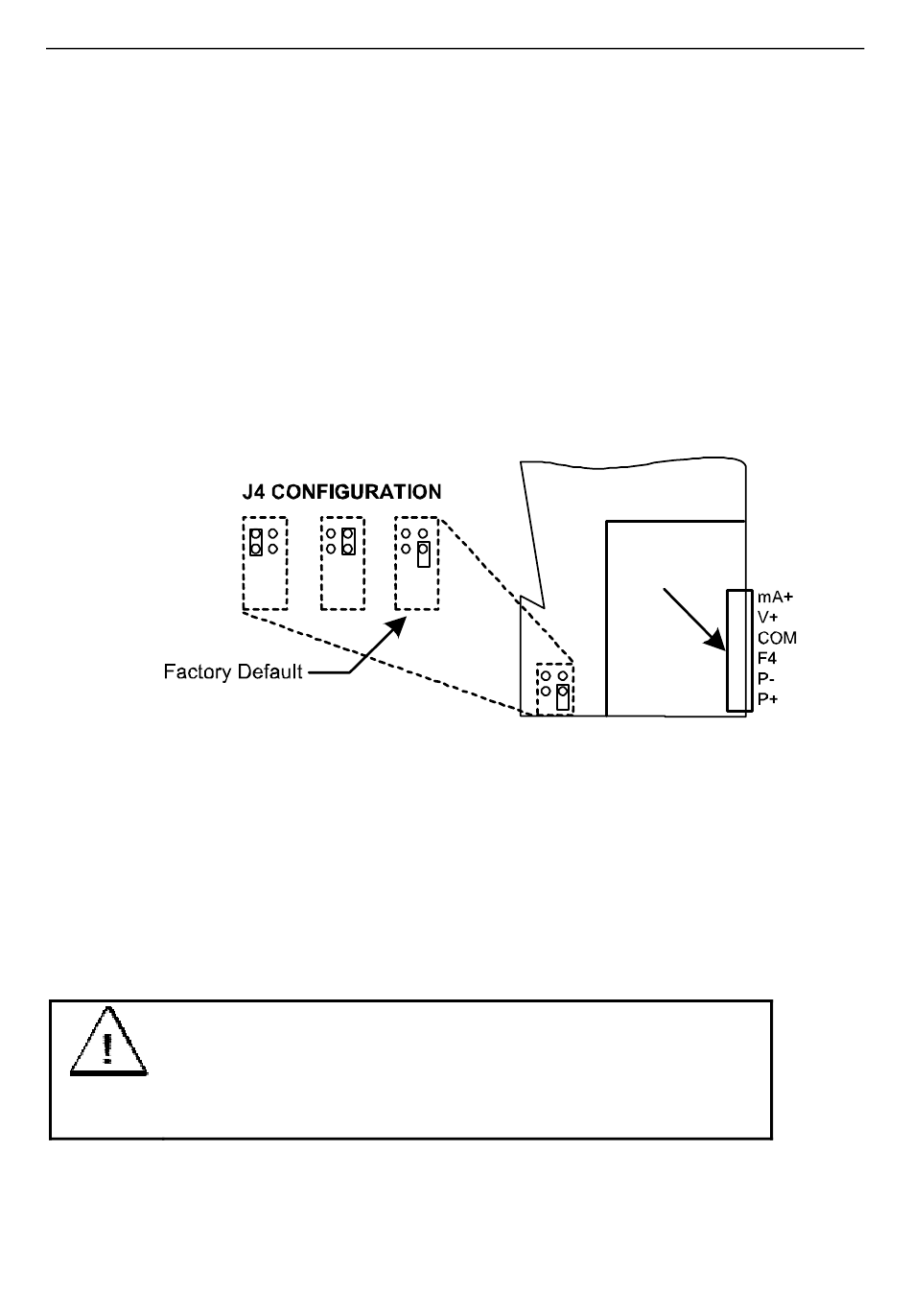

Figure 6. Transmitter Supply Voltage Selection

(Do not change if using a Flowline 4-20 mA transmitter)

Connections

All connections are made to removable screw terminal connectors located at the
rear of the meter.
Use copper wire with 60°C or 60/75°C insulation for all
line voltage connections. Observe all safety regulations.
Electrical wiring should be performed in accordance with
all applicable national, state, and local codes to prevent
damage to the meter and ensure personnel safety.
MN301033 Rev B1
Instruction Manual
