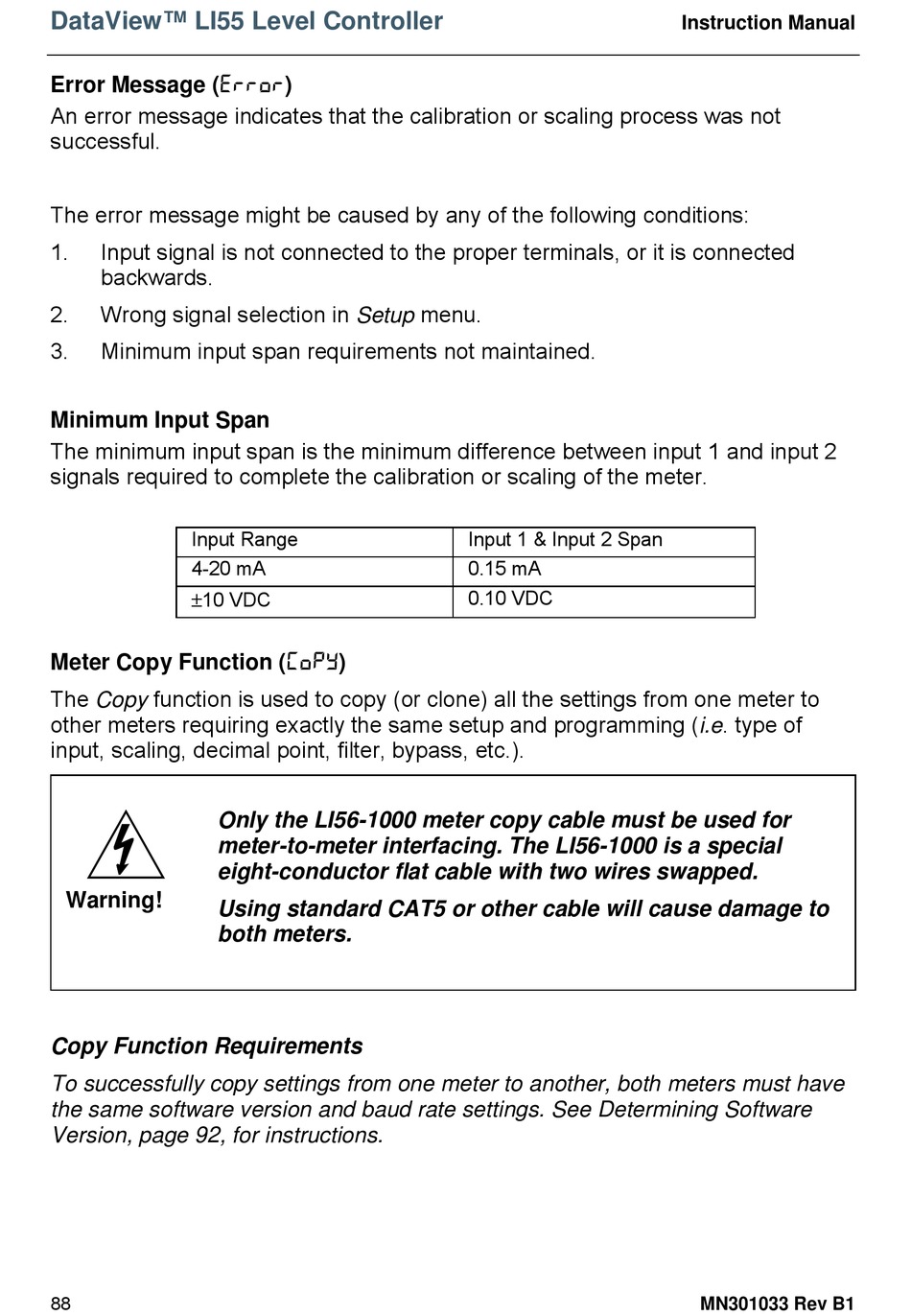

DataView™ LI55 Level Controller
Error Message ( Error )
An error message indicates that the calibration or scaling process was not
successful.
The error message might be caused by any of the following conditions:
1. Input signal is not connected to the proper terminals, or it is connected
backwards.
2. Wrong signal selection in Setup menu.
3. Minimum input span requirements not maintained.
Minimum Input Span
The minimum input span is the minimum difference between input 1 and input 2
signals required to complete the calibration or scaling of the meter.
Input Range
4-20 mA
10 VDC
Meter Copy Function ( Copy )
The Copy function is used to copy (or clone) all the settings from one meter to
other meters requiring exactly the same setup and programming (i.e. type of
input, scaling, decimal point, filter, bypass, etc.).
Only the LI56-1000 meter copy cable must be used for
meter-to-meter interfacing. The LI56-1000 is a special
eight-conductor flat cable with two wires swapped.
Warning!
Using standard CAT5 or other cable will cause damage to
both meters.
Copy Function Requirements
To successfully copy settings from one meter to another, both meters must have
the same software version and baud rate settings. See Determining Software
Version, page 92, for instructions.
88
Input 1 & Input 2 Span
0.15 mA
0.10 VDC
Instruction Manual
MN301033 Rev B1
