SPECIFICATIONS
Step One
Specifications:
Set point range:
AT1_: .04 to 3 fps (.012 to .91 mps)
AG1_: 1 to 90 fps (.3 to 27 mps)
Factory set point: AT1_: .2 fps (.06 mps)
AG1_: 10 fps (3 mps)
Repeatability:
±.5% of set point @ fixed temp.
Response time:
1 to 10 seconds
Set point adjust.:
Potentiometer
Viscosity range:
AT1_: 1 to 200 centipoise
AG1_: N/A
Supply voltage:
120/240 VAC @ 50-60 Hz.
Contact rating:
250 VAC @ 10A
Contact delay:
0 - 60 seconds
LED indication:
Power, relay and sensor status
Strobe type:
_61_: Xenon tube
_62_: N/A
Strobe flash:
_61_: 1 per second
_62_: N/A
Process temp.:
F: -40˚ to 194˚
C: -40˚ to 90˚
Electronics temp.: F: -40˚ to 140˚
C: -40˚ to 60˚
Pressure:
150 psi (10 bar) @ 25 °C., derated @ 1.667 psi
(.113 bar) per °C. above 25 °C.
Wetted material:
16__: PP-Ryton®
36__: PVDF Kynar®
Process mount:
3/4" NPT (3/4" G)
Mount. gasket:
Viton (G version only)
Enclosure rating:
NEMA 4X (IP65)
Encl. material:
_61_: PP, UL94VO and polycarbonate
_62_: PP, UL94VO
Conduit entrance: Single, 1/2" NPT
Classification:
General purpose
CE compliance:
EN 50082-2 immunity
EN 55011 emission
EN 61010-1 safety
Sensor Technologies:
Thermal Dispersion - Liquid (FT10 series)
Best applied in clean water or water-like chemical
media that is non-coating or crystallizing
Thermal Dispersion - Gas (GT10 series)
Best applied in clean air or aggressive media that is
non-coating and particular free

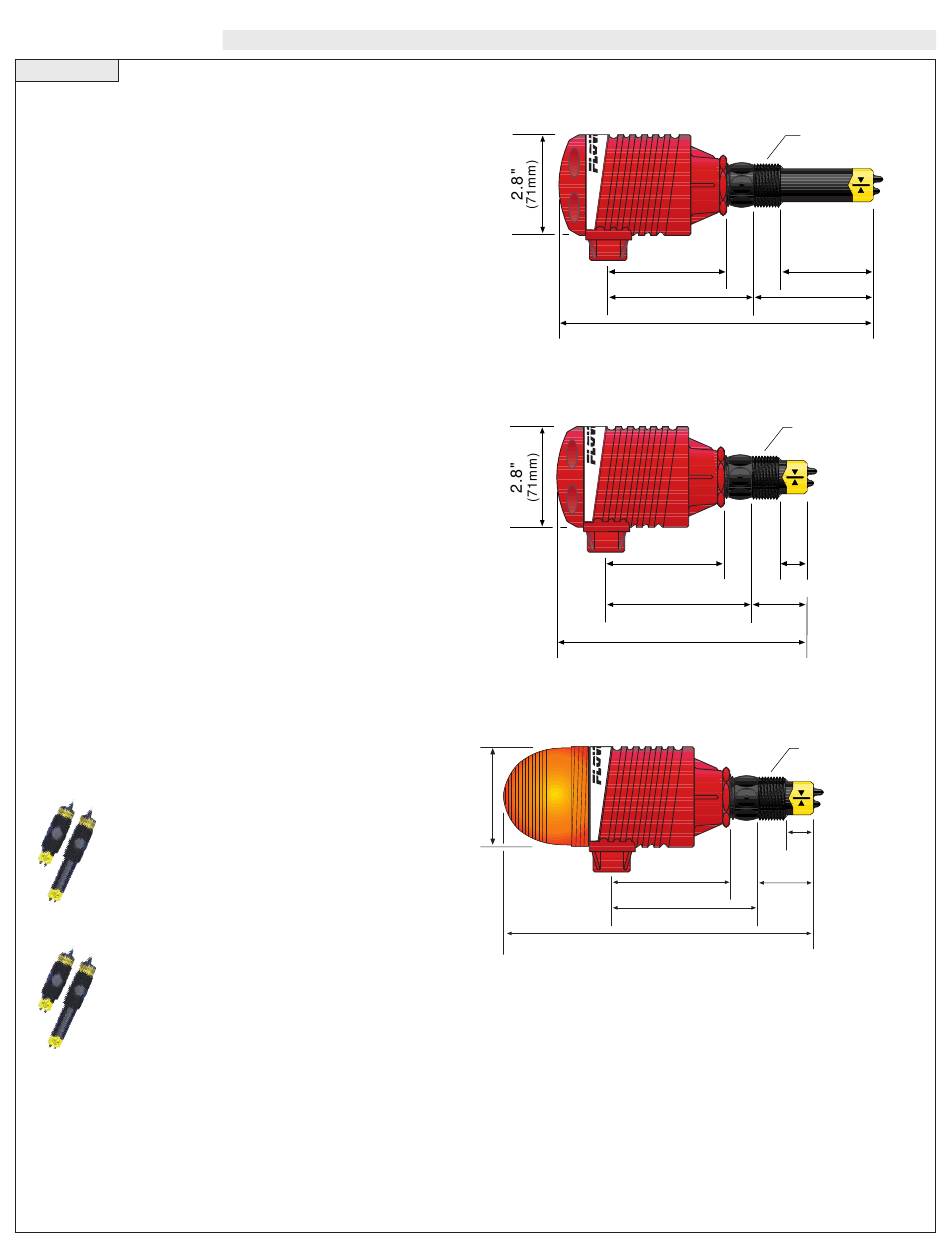

Dimensions (w/ long sensor):
3.2"
(81mm)
3.9"
Dimensions (w/ short sensor):
3.2"
(81mm)
3.9"
6.5"
Dimensions (w/ short sensor and Strobe Alert):
3.2"
(81 mm)
3.9"
8.2"
3/4" NPT
(3/4" G)
2.1"
(54mm)
2.8"
(99mm)
(71mm)
7.9"
(201mm)
3/4" NPT
(3/4" Rp)
0.7"
(19mm)
1.3"
(99mm)
(32mm)
(165mm)
3/4" NPT
(3/4" Rp)
0.7"
(19 mm)
1.3"
(32 mm)
(99 mm)
(207 mm)
