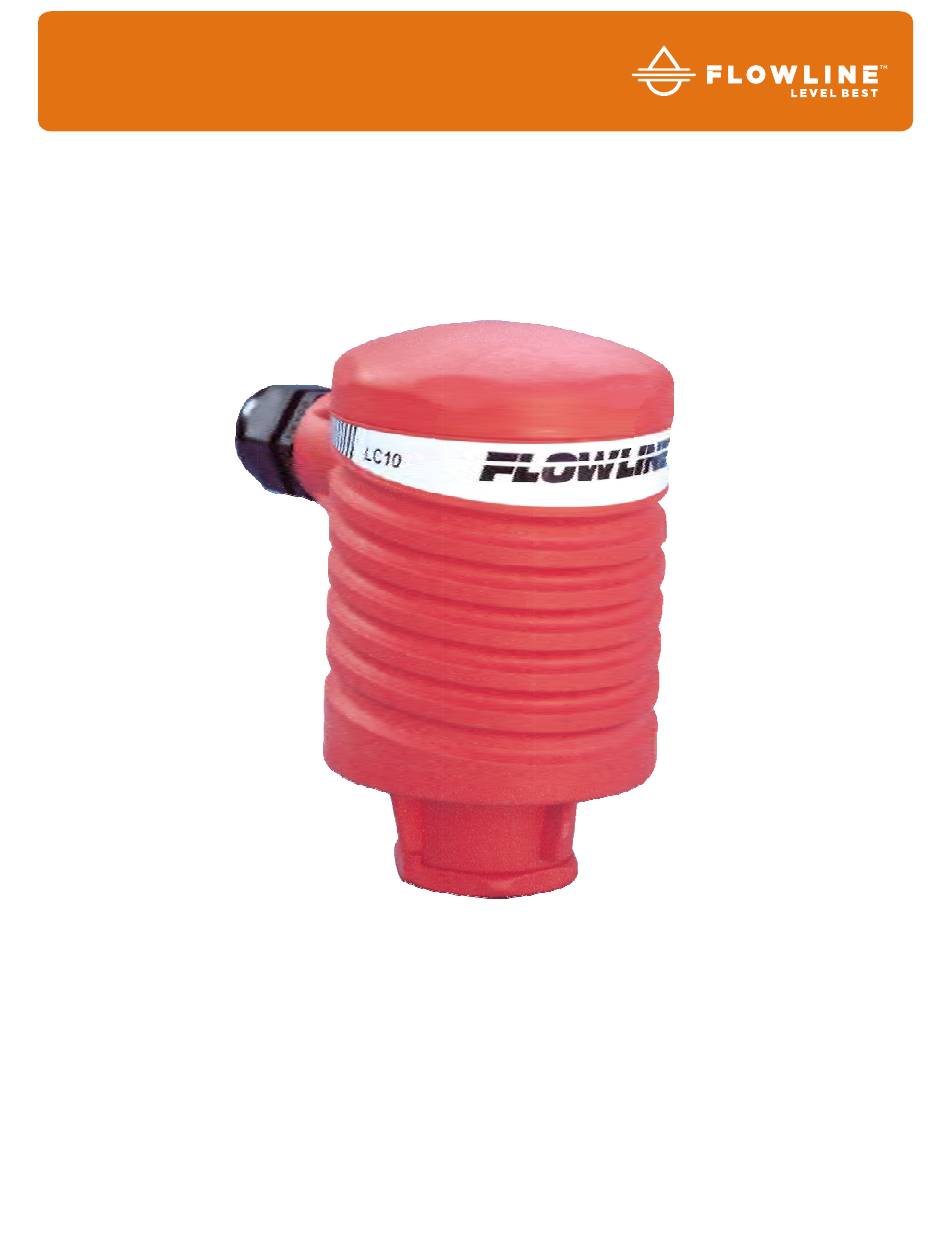

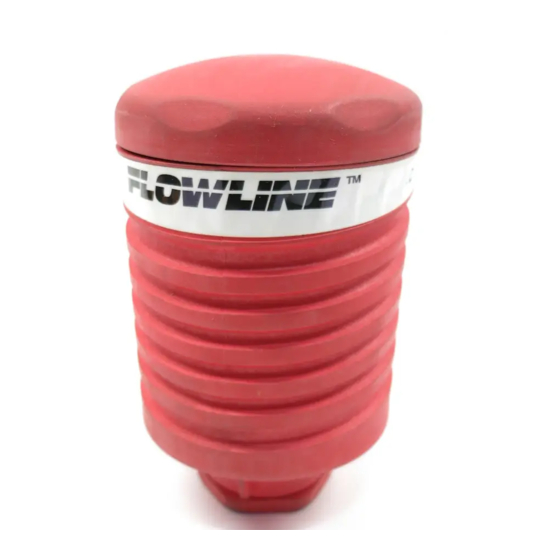

- Page 1 ™ Swit tch-P Compact Lev el Controller LC10 and LC11 Se ries Man Flowlin ne, Inc. | 10500 Hu umbolt Street, Los Alamitos, CA 9072 20 p 562.598.3015 5 f 562.431.8507 w flowline.com MN301510 Rev A A 1...
-
Page 2: Table Of Contents
Introduction / Table of Contents Step One The LC10 & LC11 Series Controllers are general-purpose level controllers offered in two configurations for pump and valve control. The LC10 Series features a single 16A SPDT relay output and can accept one level sensor as an input. -
Page 3: Specifications
Specifications / Dimensions Step Two SPECIFICATIONS: DIMENSIONS: Side View Controller LC10 & LC11 Series Supply voltage: 120 / 240 VAC, 50 - 60 Hz. Consumption: 5 Watts max. Sensor inputs: LC10: (1) level switch LC11: (1 or 2) level switches Sensor supply: 13.5 VDC @ 27 mA LED indication:... -
Page 4: Controller Labels
Specifications / Dimensions Step Two CONTROLLER LABELS LC10 Series (Non CE Version) LC11 Series (Non CE Version) LC10 Series (CE Version) LC11 Series (CE Version) FUNCTIONAL DIAGRAM MN301510 Rev A1... -
Page 5: Safety Precautions
PRODUCT. This manual includes information on three different models of Compact Relay Controllers from Flowline: LC10 and LC11 Series. The LC10 series is a single-input controller with an optional Flash Alarm and the LC11 Series is a dual-input controller. Many aspects of installation and use are similar between the three models. -
Page 6: Make A Fail-Safe System
Such backup systems should use different sensor technologies where possible. While this manual offers some examples and suggestions to help explain the operation of FLOWLINE products, such examples are for information only and are not intended as a complete guide to installing any specific system. -
Page 7: Getting Started
Getting Started Step Four COMPONENTS: Strobe Part Number Thread Input(s) Description Compliant Approval Alert LC10-1001 LC10-1051 High Level, LC10-1002 Low Level or LC10-1052 Single Pump LC10-1001-CE Protection LC10-1051-CE Controller LC10-1002-CE LC10-1052-CE LC11-1001 Automatic Fill, LC11-1051 Automatic LC11-1002 Empty, High LC11-1052 Dual Level, Low LC11-1001-CE... -
Page 8: Features Of The Lc10 Series Single Input Controller
Getting Started Step Four FEATURES OF THE LC10 SERIES SINGLE INPUT CONTROLLER: The LC10 Series are designed to receive a signal from a single liquid sensor. It turns its internal relay ON or OFF (as set by the invert switch) in response to the presence of liquid, and changes the relay status back again when the sensor is dry. -
Page 9: Features Of The Lc11 Series Dual Input Controller
Getting Started Step Four FEATURES OF THE LC11 SERIES DUAL INPUT CONTROLLER: The LC11 Series is designed to receive signals from two liquid sensors. It turns its internal relay ON or OFF (as set by the invert switch) in response to the presence of liquid on both sensors, and changes the relay status back again when both sensors are dry. -
Page 10: Guide To Controls
Series only) to the lower pair. Note the polarity: (+) is a 13.5 VDC, 27 mA power supply (to be connected to the red wire of a Flowline sensor), and (-) is the return path from the sensor (to be connected to the black wire of a Flowline sensor). -
Page 11: Wiring
(series LZ12, LU10, LP15, LP50 & LO10 series) will be wired with the Red wire to the (+) terminal and the Black wire to the (-) terminal. FLOWLINE mechanical reed switches (series LV10, LV2_, LV3_, LV4_, LH2_ & LH3_ series) will have a particular wiring based upon part number. See the illustration below to indicate wiring for your switch. -
Page 12: Strobe Alert Output
Wiring Step Five STROBE ALERT OUTPUT: While wired NO, Strobe Alert can be used as a high or low level alarm, depending on the setting for the invert switch. The Strobe Alert can also be wired NC. Note: Strobe Alert needs to be powered. Since the relay is a true dry contact, power will need to be added. -
Page 13: Installation
The LC10 & LC11 Series are a cost-effective, modular liquid level controller whose body incorporates a female 3/4" NPT (3/4" R) fitting, allowing it to be mounted directly onto any Flowline sensor or any 3/4" connection. Simply provide its required AC power and a controlled device such as a valve, pump, or alarm that can be switched by the controller’s relay in response to the sensor input. -
Page 14: Application Examples
Application Examples Step Seven LOW LEVEL ALARM: The goal is to make sure that an operator is notified if the liquid level falls below a certain point. If it does, an alarm will sound, alerting the operator of a low level. A level switch must be mounted at the location where the alarm will sound. -
Page 15: Pump Protection
Application Examples Step Seven PUMP PROTECTION: The key here is to install a level switch just above the outlet to the pump. As long as the switch is Wet, the pump can operate. If the switch ever becomes Dry, the relay will open preventing the pump from running. -
Page 16: Automatic Empty
Application Examples Step Seven AUTOMATIC EMPTY: Similar system logic can be used for an automatic empty operation. In this example, we will use a pump to empty a tank. The system still consists of a tank with a high level sensor, a low level sensor, and a pump that is controlled by the controller. -
Page 17: Appendix
Appendix Step Eight RELAY LOGIC – LATCHING RELAY Latching relay will only switch when both level switches are in the same state. One Switch Dry, One Wet Both Switches Wet Both Switches Dry In this state, the relay will never In this state, the relay will typically In this state, the relay will typically switch, regardless if this is an Auto... -
Page 18: Relay Latching Logic Table (Lc11 Series Only)
Appendix Step Eight LATCH - ON VS OFF: The relay can either be an independent relay (high level, low level or pump protection) with Latch OFF or can be a latching relay (automatic fill or empty) with Latch ON. With Latch OFF, the relay will only Invert OFF Latch OFF Invert ON... -
Page 19: Troubleshooting
Appendix Step Eight TROUBLESHOOTING PROBLEM SOLUTION Relay switches only from input 1A Latch is turned OFF. Flip the latch switch to turn ON. (ignores input 1B) Level reaches alarm ON, but relay First, check to make sure the input LED is ON. If not, check wiring to is OFF. -
Page 20: Warranty
