Specifications / Dimensions; Specifications; Dimensions - FlowLine Switch-Pro LC4 Series Manual

Specifications / Dimensions

SPECIFICATIONS:

Supply voltage:
Consumption:
Sensor inputs:
(LC41 Series only)
(LC42 Series only)
Sensor supply:
LED indication:
Contact type:
(LC41 Series only)
(LC42 Series only)
Contact rating:
Contact output:
Contact latch:
Contact delay:
Electronics temp.:
Enclosure type:
Enclosure material:
Fail safety:
Certificate number:

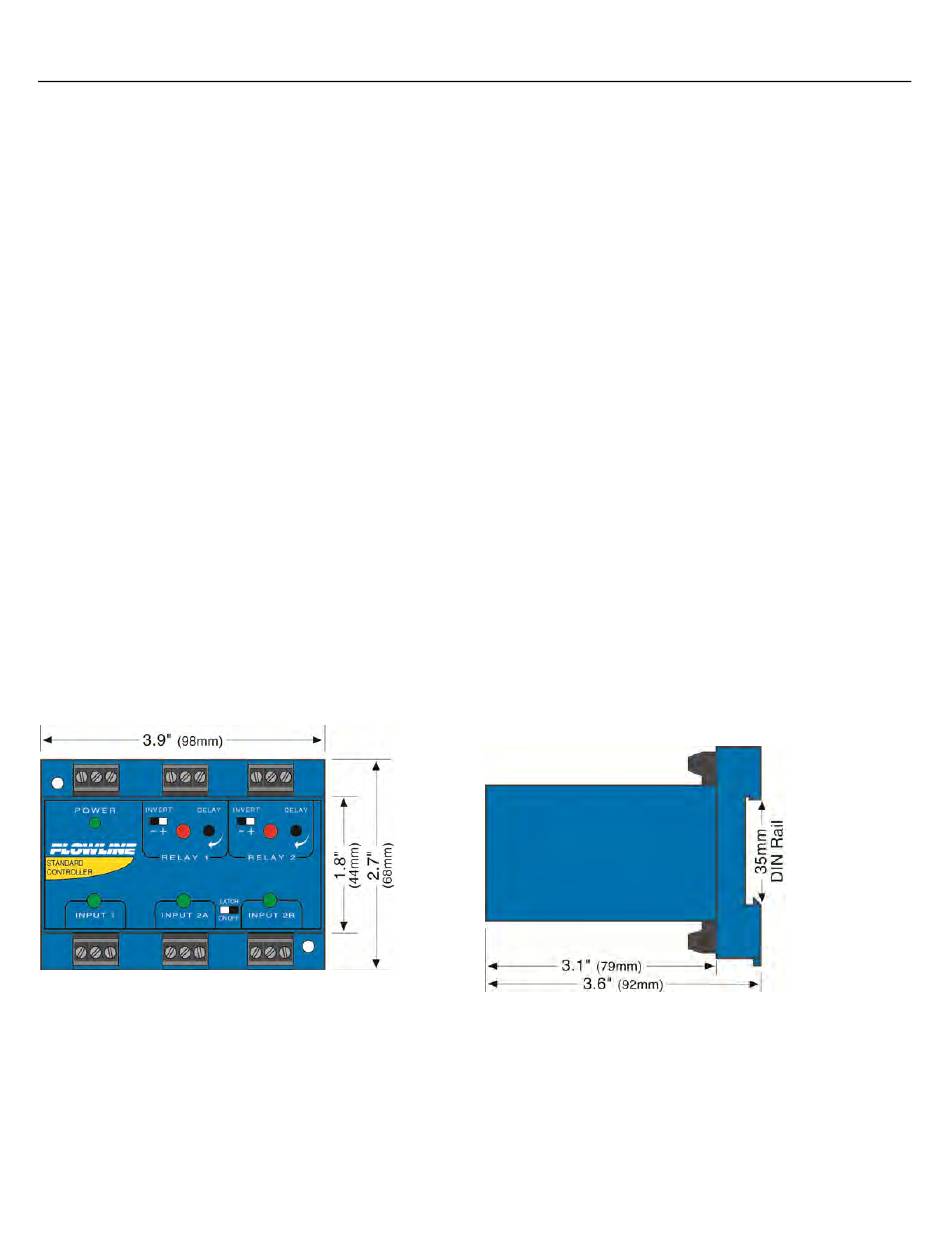

DIMENSIONS:

Top View - All Models
MN301520 Rev A1
120 / 240 VAC, 50 - 60 Hz.
5 Watts max.
(1) level switch
(1 or 2) level switches
(1, 2 or 3) level switches
13.5 VDC @ 27 mA per input
Sensor, relay & power status
(1) SPDT Relay
(1) SPDT Relay, Latched
(2) SPDT Relays, only 1 Latched
250 VAC, 10A
Selectable NO or NC
Select On/Off – LC41 & LC42 only
0.15 to 60 seconds
F: -40°to 158°
C: -40°to 70°
35mm DIN (EN 50 022)
PP (U.L. 94 VO)
Power fail-safe
LR 79326
Side View - All Models
Step Two
3 |
