DataView™ LI55 Level Controller

Relay Sampling Operation

Set
Reset
Relay
LED

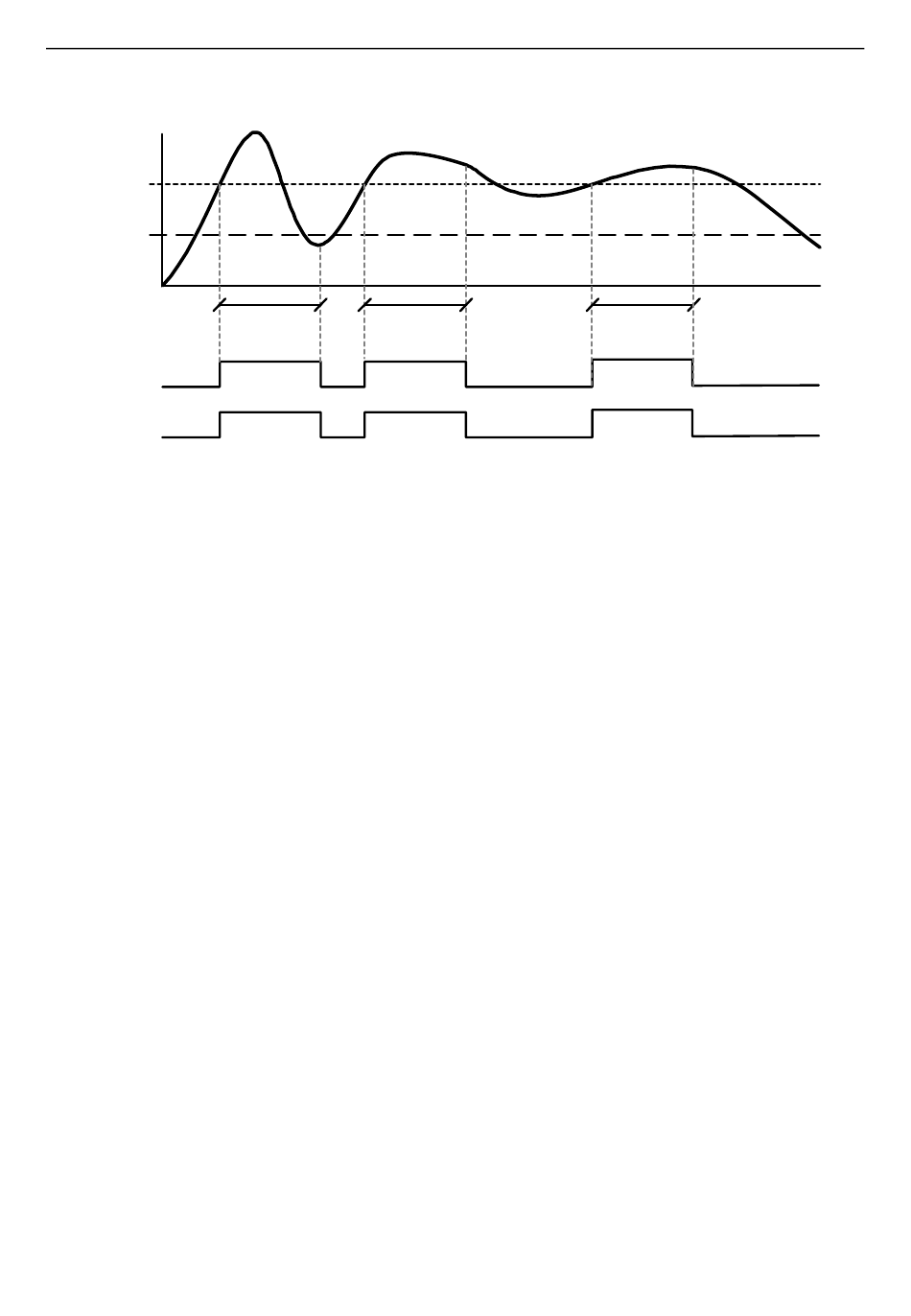

When the signal crosses the set point, the relay trips and the sample time starts.
After the sample time has elapsed, the relay resets. The cycle repeats every time
the set point is crossed, going up for high alarms and going down for low alarms.
The sample time can be programmed between 0.1 and 5999.9 seconds.
60
Input
Sample Sample
Time Time
Instruction Manual
Sample
Time
