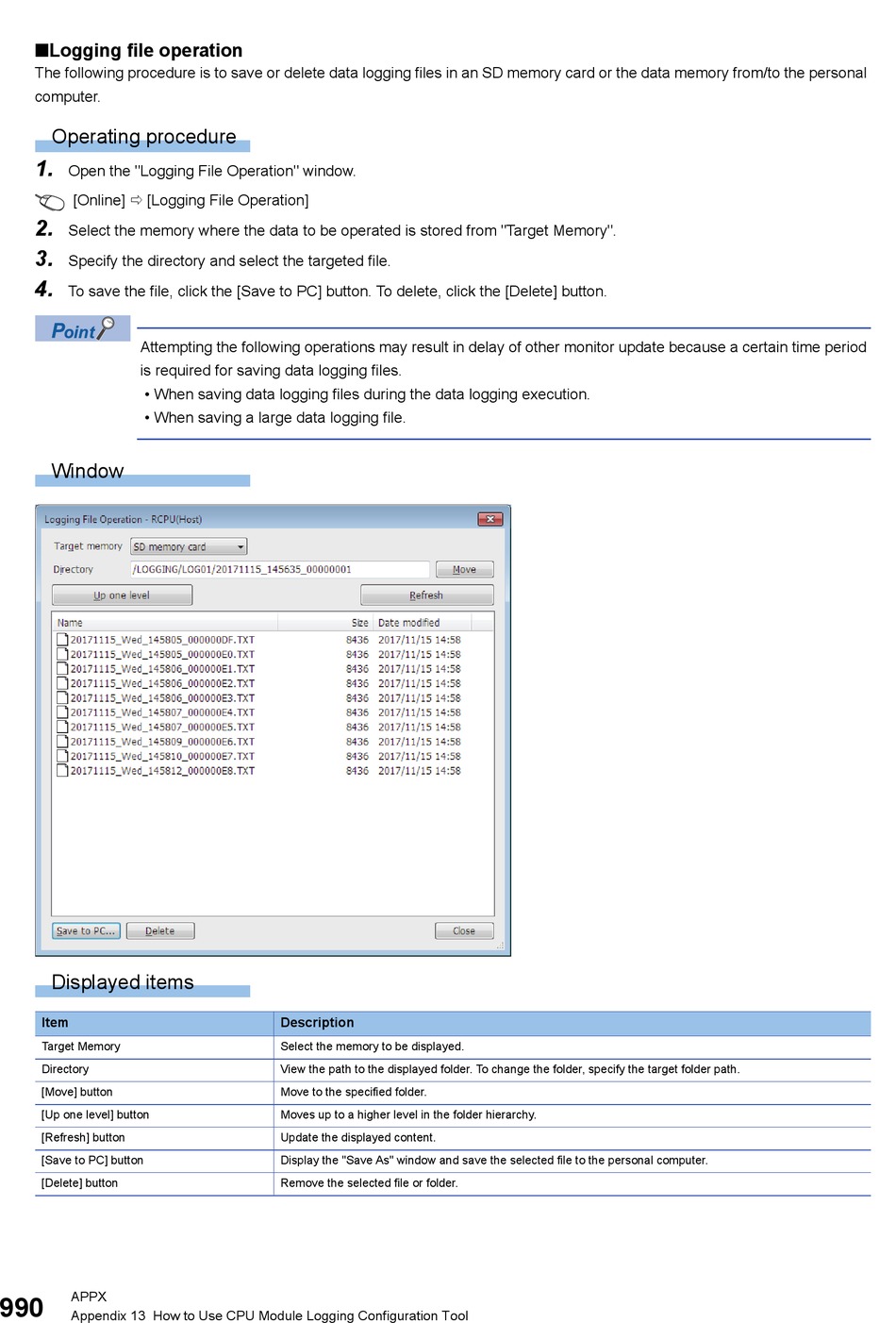

■Logging file operation
The following procedure is to save or delete data logging files in an SD memory card or the data memory from/to the personal
computer.
Operating procedure
1.
Open the "Logging File Operation" window.
[Online]  [Logging File Operation]
2.
Select the memory where the data to be operated is stored from "Target Memory".
3.
Specify the directory and select the targeted file.
4.
To save the file, click the [Save to PC] button. To delete, click the [Delete] button.
Attempting the following operations may result in delay of other monitor update because a certain time period
is required for saving data logging files.
• When saving data logging files during the data logging execution.
• When saving a large data logging file.
Window
Displayed items
Item
Target Memory
Directory
[Move] button
[Up one level] button
[Refresh] button
[Save to PC] button
[Delete] button
APPX
990
Appendix 13 How to Use CPU Module Logging Configuration Tool
Description
Select the memory to be displayed.
View the path to the displayed folder. To change the folder, specify the target folder path.
Move to the specified folder.
Moves up to a higher level in the folder hierarchy.
Update the displayed content.
Display the "Save As" window and save the selected file to the personal computer.
Remove the selected file or folder.
