15 Main menu

The main menu is divided into the following sections:
•
Configuration
•
Diagnostics
•
Yield data
In addition, the following sub-menus are displayed in this view:
•
Cockpit
•
Energy flow
•
Table
These are also located on the left side of the of the VLCD Display (see "VLCD Display" section for more
details) and in additional sub-menus (depending on connected the devices) and as a selection in the main
navigation menu.

15.1 VLCD Display

The VLC Display is located above the left navigation menu and displays the notifications from the So-
lar-Log™in the form of codes and symbols in addition to the date and time. The codes and symbols corre-
spond to those for the LCD display. (Refer to the illustration "VLCD Display" and the chapter "
the symbols on the LCD display"
The notifications are in real-time and are identical to those on the Solar-Log™ LCD Display. (Solar-Log 300,
1200 and 2000) (Also refer to the chapter "Notifications on the LCD Status Display")

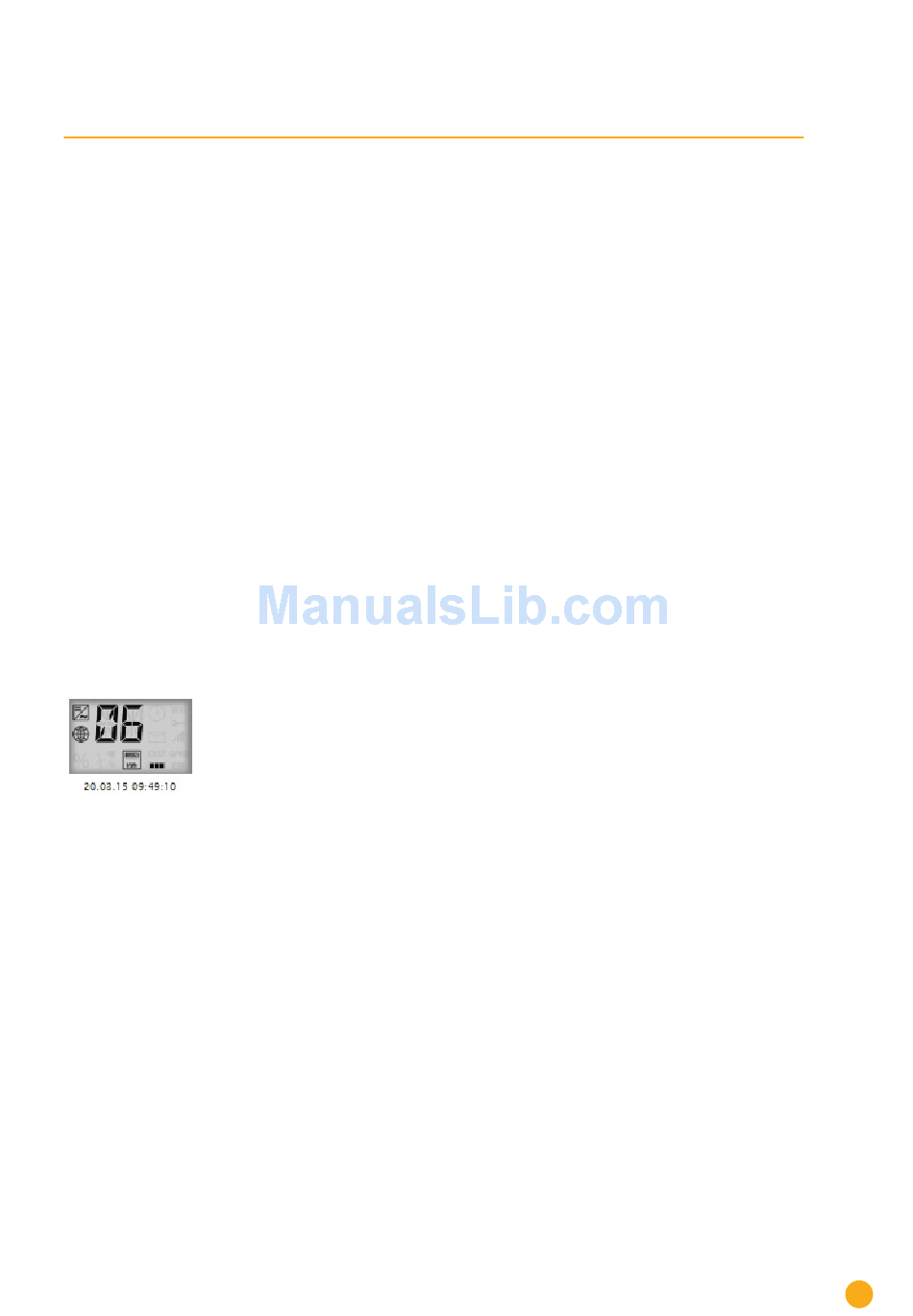

Fig.: VLCD Display

)
Main menu
Meaning of
