18.6 Sensor (only when a sensor is connected)

A graphic evaluation from the connected sensors can be displayed from the

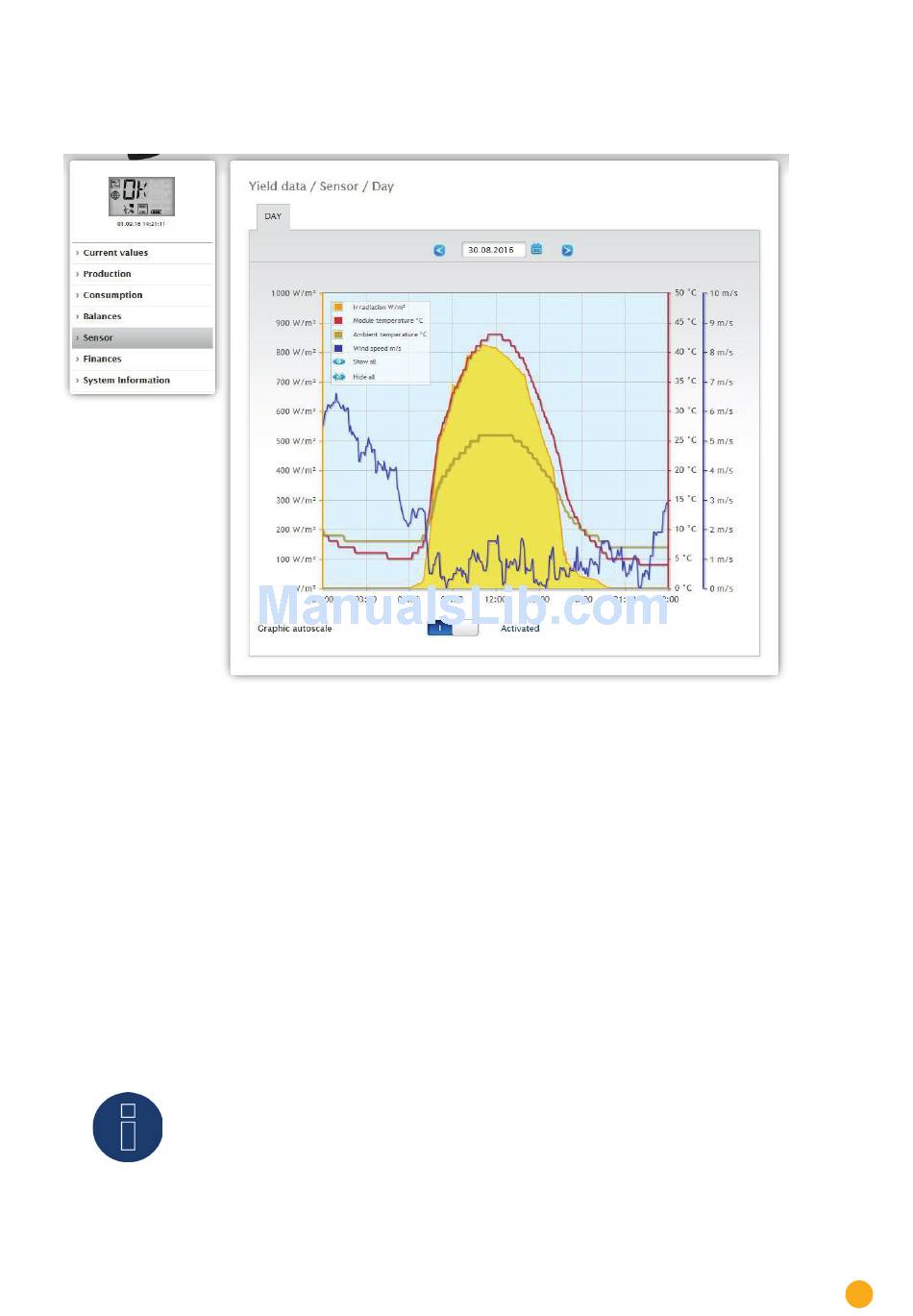

Fig.: Graph of Sensor Box values

The following values can be displayed individually:
•
Irradiation W/m
•
Module temperature C°
•
Ambient temperature C°
•
Wind speed m/s
Different values with different units are displayed in the graph. The units used and their colors are display-
ed in the key at the top.
All of the values displayed can be selected and deselected at anytime with a left-click to display individual
values (curve) or to display or hide all values (curves). With a right-click, all of the values (curves) other
than the one selected can be hidden.
You can select and subsequently evaluate certain days with the Date box.
!
Note
The menu is only visible once a meter is connected.
Accessing Yield Data
Senor
menu.
