8 Unit connections

8.1

Solar-Log 300 / Solar-Log 250

Top connections

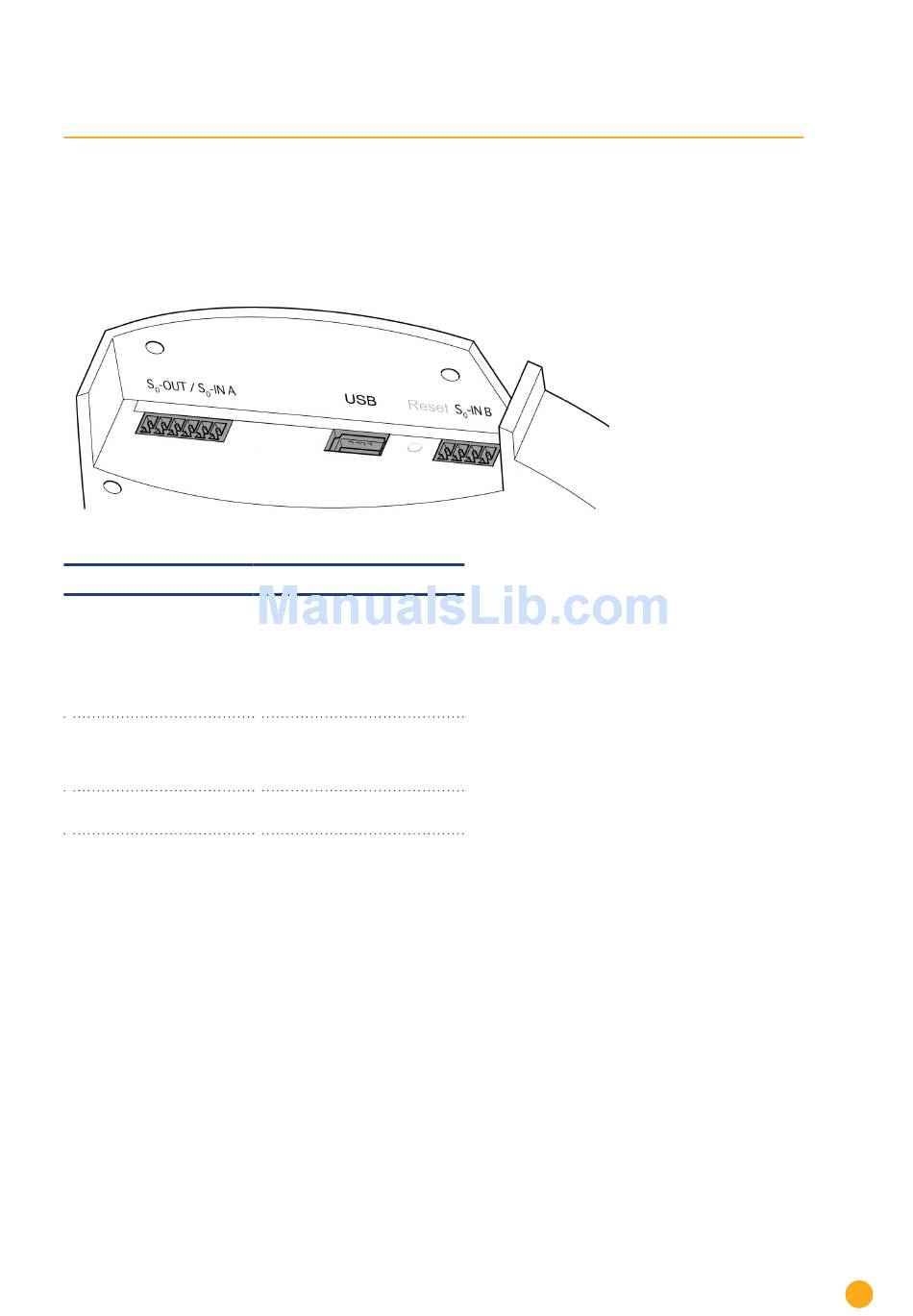

Fig.: Top Connections Solar-Log 300

Solar-Log 300* / Solar-Log 250
S0-Out
S0-IN A*
USB
S0-IN B
*Only the Solar-Log 300 is equipped with this connection.
S0 pulse output for connecting
to a large external display. S0
pulse input for connection to
an external power meter. Plea-
se note the connection charac-
teristics of the S0 connection.
USB connection. Suitable for
USB sticks.
Not suitable for a connection
to a PC
S0 pulse input for connection
to an external power meter.
