Solar-Log PRO380-Mod-CT Quick Start Manual

der Reihe nach aufgerufen werden. Wird keine gedrückt, kehrt der Zähler nach kurzer Zeit
wieder in den automa�schen Modus zurück.
In der automa�sch rollierenden Anzeige werden nacheinander die folgenden
The following values are displayed successively in the automatically rotating display:
Werte angezeigt:
Energierichtungsanzeige pro Phase 1 2 3
Energy fl ow direction display per phase 1 2 3
R = Reverse, F = Forward
r = Lieferung (Reverse) F = Bezug (Forward)
Wirkenergie Bezug in KWh (OBIS: 1.8.0)
Active energy (forward) in kWh (OBIS: 1.8.0)
Accumulating
Saldierend
Wirkenergie Lieferung in KWh (OBIS: 2.8.0) Active energy (reverse) in kWh (OBIS: 2.8.0)
Accumulating
Saldierend
Active power (total)
Momentan‐Leistung (Gesamt)
Für eine vollständige Übersicht aller verfügbaren Anzeigewerte im manuellen
For a complete overview of all of the display values available in the manual mode, please refer to the technical
Modus beachten Sie bi�e die ausführliche technische Beschreibung als Down‐
descriptions in the download section at www.kdk-dornscheidt.de. (German).
load auf www.kdk‐dornscheidt.de.
Changing the Modbus address with the sensor buttons on the meter
Änderung der Modbus Adresse mit Hilfe der Sensortasten am Zähler:
The Modbus address can be changed from the Program Menu (see supplementary sheet) under "PRO – 2." Addi-
tional changes are possible. A password is required to access the sub-menu "PRO – 3." The default password is
1. Mit der linken Pfeiltaste durch das Menü blä�ern, bis „addr 001"
"0000" – it can be changed via the programming.
angezeigt wird
2. Zur Änderung der Adresse beide Pfeiltasten für 5 sec drücken – Anzeige
blinkt 1x auf, wenn Änderungsmodus ak�v ist.
Example of the MID label
3. Mit der rechten Pfeiltaste Adresswert erhöhen, bis gewünschte Adresse
angezeigt wird
The declaration of conformity and certifi cation
4. Zum Verlassen des Änderungsmodus nochmals beide Pfeiltasten für 5 sec
(EN 50470) you will fi nd current on: www.
drücken
kdk-dornscheidt.de
5. Verlassen des Änderungsmodus wird durch blinken des Displays bestä�gt
6. Sollte diese Bestä�gung nicht erfolgen ist Gerät immer noch im Ände‐
rungsmodus – Bestä�gung nochmals versuchen
7. Kontrolle der eingestellten Adresse durch annavigieren wie 1)
For questions about the Solar-Log™ or on how
to confi gure the meter in the Solar-Log™, please
contact our support team:
support@solar-log.com
or: +49 7428 94 18 660
For questions about the meter, please contact the
manufacturer: info@kdk-dornscheidt.com
or: +49 2244 919940
Solare Datensysteme GmbH • www.solar-log.com • Subject to change without notice. | EN | 03.2020 | Version 1.7
M 15
0122
V1.1
Quick Start Guide

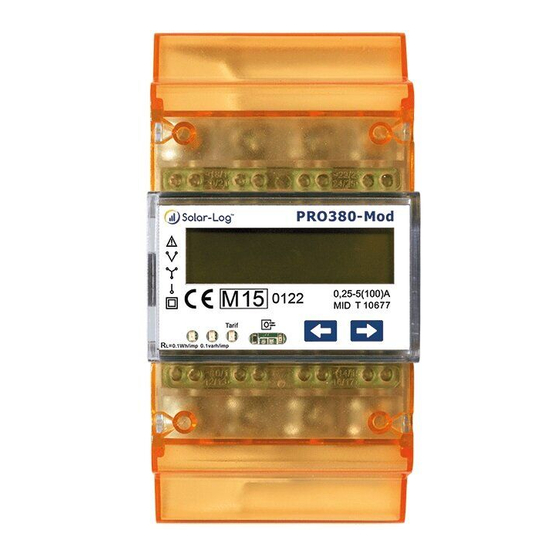

Electronic A.C. current meter for DIN rail mounting with MID
declaration of conformity and ModBus interface
(converter connection meter)
Warning
The meter's case is sealed and may not be opened. Opening the meter and/or breaking the seal invali-
dates the warranty. Please make sure that all of the cables are mounted free from mechanical stress.
Only meters with the MID declaration of conformity can be used for tariff applications.
Important note on adjusting the converter ratio.
The converter ratio can only be set once with this meter.
When the meter is connected to power, the display alternates between "Set CT" and "CT5 0005." If one of the arrow
keys is pressed, the fi rst number from the left blinks. Defi ne the secondary power between /1A and /5A and con-
fi rm the selection by pressing both of the arrow keys at the same time for 3 seconds. After that, defi ne the primary
current by selecting the 4 numbers from left to right with the keys as described above. Confi rm every number by
pressing both arrow keys for 3 seconds.
The primary power can be freely defi ned in steps of 5A from 0005 to 9995. Once the last digit has been confi rmed,
the converter ratio is saved and cannot be changed again.
Please note
This document is only a quick start guide and does not cover all of the device's functions. Detailed specifi cations
and descriptions are available at www.kdk-dornscheidt.de.
Information for your safety
This quick start guide does not contain all of the safety instructions for operating the meter. Due to special operat-
ing conditions and/or local laws and regulations, additional measures may be required.
Trained Personnel
The meter may only be installed and connected by a trained, qualifi ed specialist. Trained, qualifi ed specialists are
those who are certifi ed to put devices, systems and circuits into operation, to switch them on, to ground them and
to mark them according to safety standards and regulations.
