10.4 RS485/422 - C (only Solar-Log 2000)

Use the provided terminal block connectors when connecting inverters or accessories to the RS485/422 C
interface.

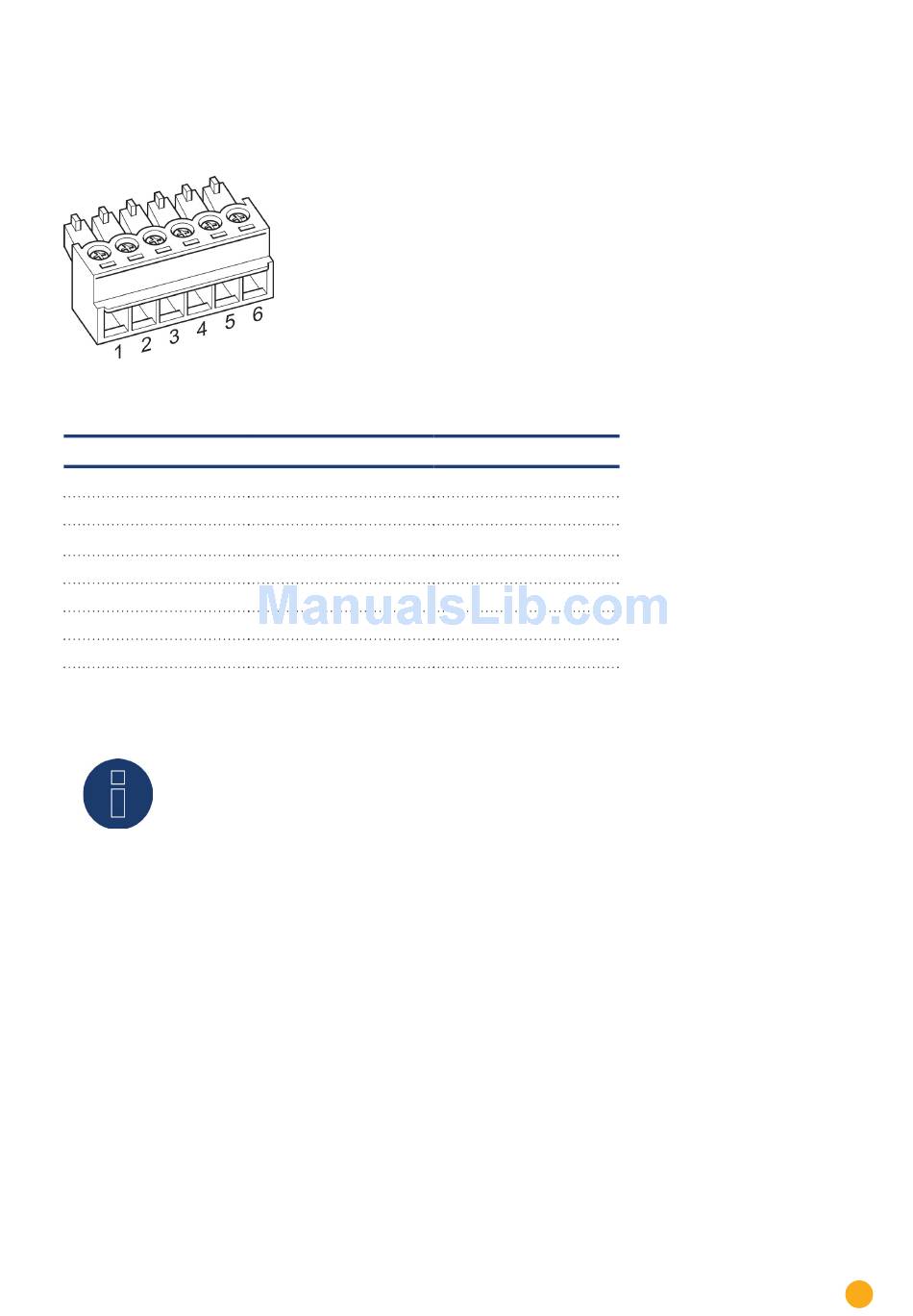

Fig.: 6-pin Terminal block connector

RS485/422 C
PIN
1
2
3
4
5
6
Note!
If inverters that use the RS422 connection are connected to this
nterface (e.g. Fronius, AEG, Riello), then it is not possible to connect accessories such as
sensors, meters or displays to this bus.
Assignments RS485
Data +
12 V
Ground
Data -
Assignments RS422
T/RX+
12V
Ground
T/RX-
R/TX+
R/TX-
Connector Assignments and Wiring
