Charging History 1-Day; Fig.: Battery Diagnosis - Charging History 1-Day - Solar-Log 200 Manual

17.2.2 Charging History 1-Day

A daily graph with the following values is in the
•
Charge
The battery's charge levels throughout the day in watts.
•
Discharge
The battery's discharge levels throughout the day in watts.
•
Charge Level (%)
The battery's charge levels throughout the day as a percentage.
•
U (V)
The battery's voltage curve throughout the day in volts.

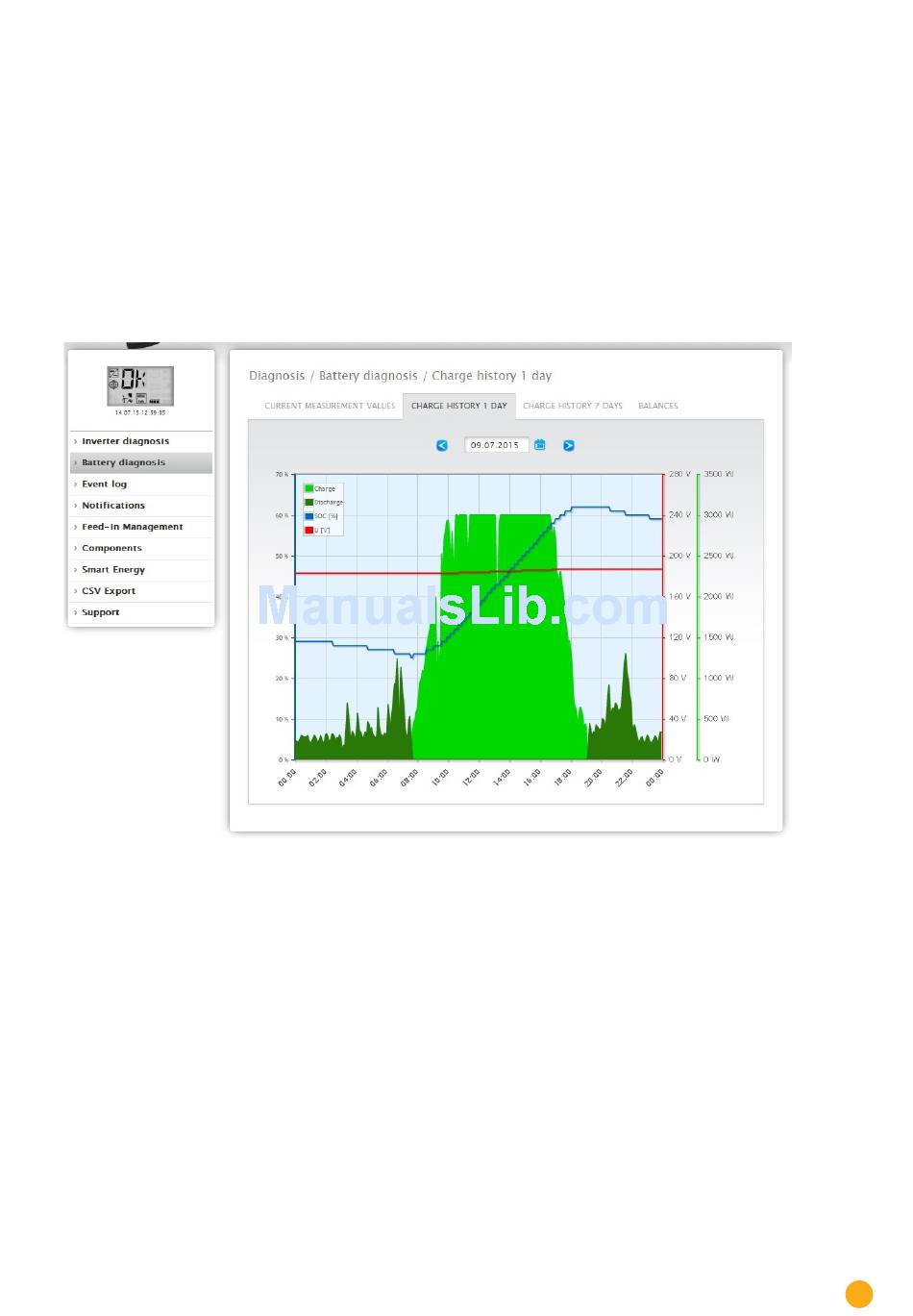

Fig.: Battery diagnosis - Charging History 1-Day

Date
The box offers the option to select a particular day for viewing. The arrow keys can also be used to
move to the next or previous date.
The individual values, at the top-left of the graph key, can be displayed or hidden with a mouse click.
Charging History 1-Day
tab.
