10.5.2 S0-IN B

The S0 In interface is a hardware interface used for recording measurement values from power meters. Use
the supplied terminal block connector for the connection to the Solar-Log™.

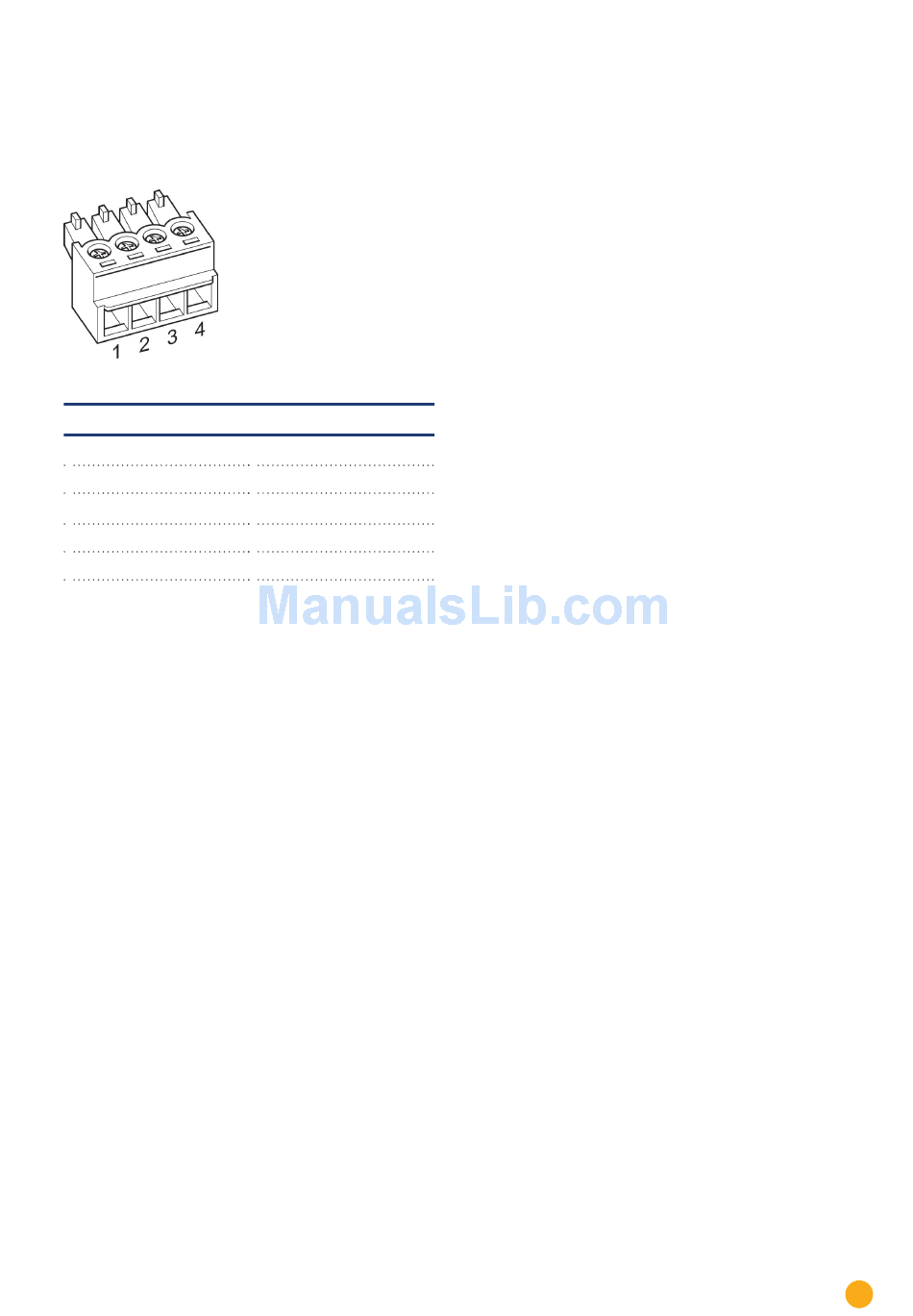

Fig.: 4-pin Terminal block connector
S0-IN B
PIN
1
2
3
4
Installation instructions for external power meters are also in chapter „12.5 External power meters" on page
47.
Assignment
S0 + Output 27mA
S0 - Input max 27mA
Measuring contact
Ground
Connector Assignments and Wiring
