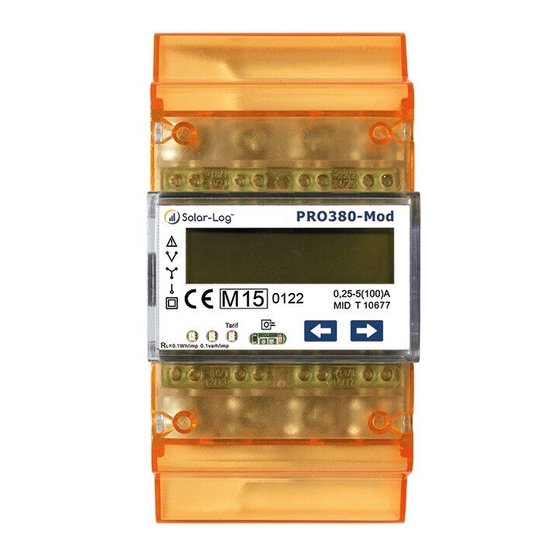

Solar-Log Pro 380 Quick Reference Manual

Quick reference guide
Electronic three-phase energy meter
for DIN-railmount, with MID-confirmation
and ModBus-interface.
Please note
This document is only a quick reference guide and does not handle every function. The complete users guide is
available at: www.kdk-dornscheidt.de
Information for your safety
Installation and operation of the device described in this manual may only be performed by qualified personnel.
Only people that are authorized to install, connect and use this device, who have proper knowledge about labe-
ling and grounding electrical equipment and circuits and can do so in accordance with local (safety) regulations,
are considered qualified personnel in this manual.
Please Note
Installation and operation of the device described in this manual may only be performed by qualified personnel.
Only people that are authorized to install, connect and use this device, who have proper knowledge about labe-
ling and grounding electrical equipment and circuits and can do so in accordance with local (safety) regulations,
are considered qualified personnel in this manual.
Attention
Case is sealed, do not open the meter! No warranty if case is opened or seal is removed. Please
check that all cables are free from mechanical stress after assembly.
Dimensions (mm)
Width:
Height with cover:
70mm
Height without cover:
140mm
Depth:
92,4mm
63mm
70,0 mm
140,0 mm
92,4 mm
63,0 mm
