Table; Fig.: Table With The Recorded Output From An Example Plant - Solar-Log 200 Manual

Battery:
•
Charge Level (%):
• Red, battery is being charged.
•
Discharge (W)
• Green, battery is being discharged.

18.1.2 Table

The output recorded from the connected devices is displayed as a table in Table tab.

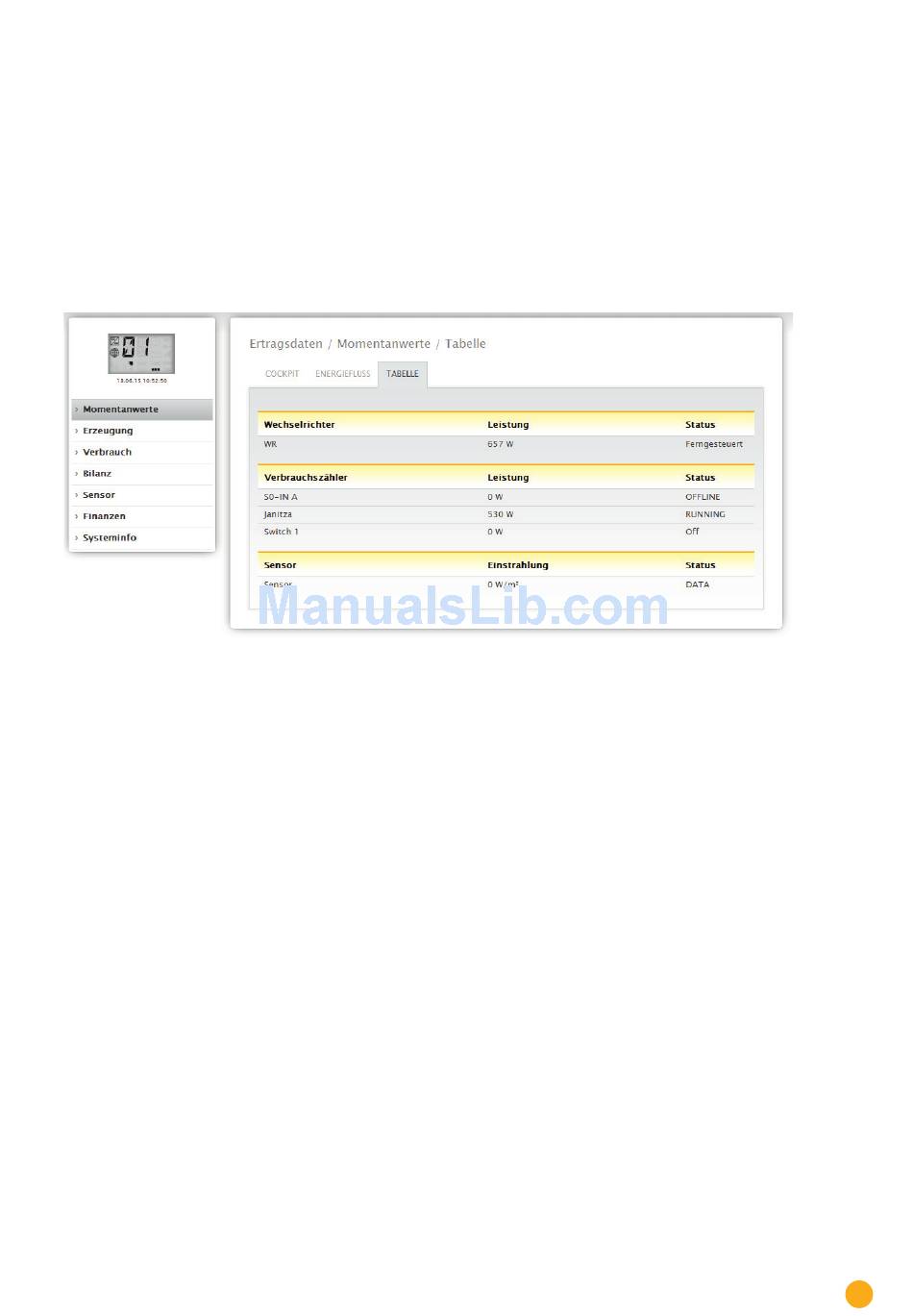

Fig.: Table with the recorded output from an example plant

Depending on the particular device connected, the following values are displayed:
•
The current output from each individual inverter.
•
The total current consumption as measured by the consumption meters.
•
The current irradiation per m
•
The values from the battery with the columns Charge/Discharge, Charge Level (%) and Status.
as measured by the sensor.
