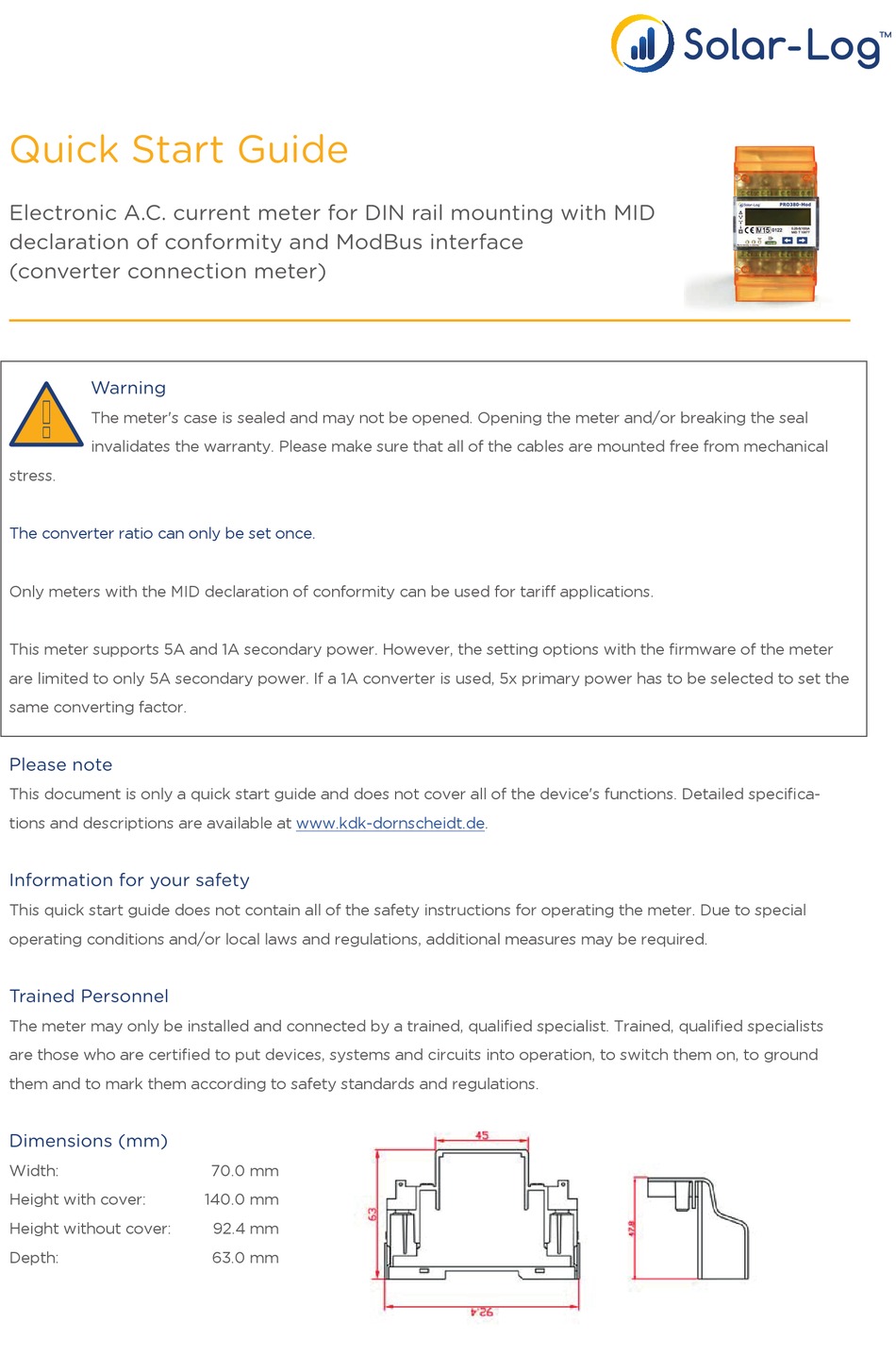

Quick Start Guide

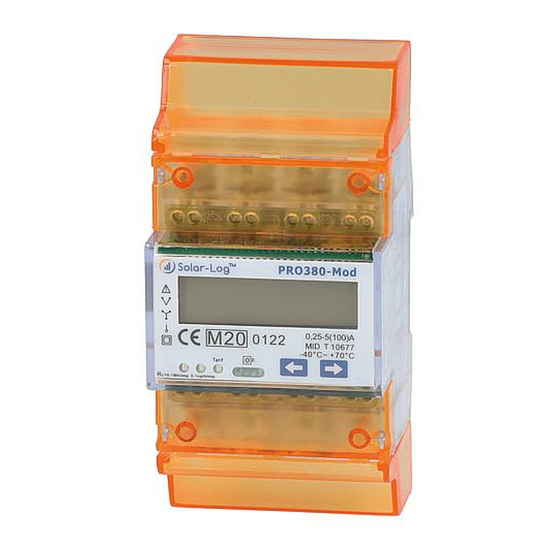

Electronic A.C. current meter for DIN rail mounting with MID
declaration of conformity and ModBus interface
(converter connection meter)
Warning
The meter's case is sealed and may not be opened. Opening the meter and/or breaking the seal
invalidates the warranty. Please make sure that all of the cables are mounted free from mechanical
stress.
The converter ratio can only be set once.
Only meters with the MID declaration of conformity can be used for tariff applications.
This meter supports 5A and 1A secondary power. However, the setting options with the firmware of the meter
are limited to only 5A secondary power. If a 1A converter is used, 5x primary power has to be selected to set the
same converting factor.
Please note
This document is only a quick start guide and does not cover all of the device's functions. Detailed specifica-
tions and descriptions are available at www.kdk-dornscheidt.de.
Information for your safety
This quick start guide does not contain all of the safety instructions for operating the meter. Due to special
operating conditions and/or local laws and regulations, additional measures may be required.
Trained Personnel
The meter may only be installed and connected by a trained, qualified specialist. Trained, qualified specialists
are those who are certified to put devices, systems and circuits into operation, to switch them on, to ground
them and to mark them according to safety standards and regulations.
Dimensions (mm)
Width:
Height with cover:


70mm
Height without cover:
140mm
Depth:
92,4mm


63mm
70.0 mm
140.0 mm
92.4 mm
63.0 mm

V1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO380-CT and is the answer not in the manual?

Questions and answers

Summary of Contents for Solar-Log PRO380-CT

  • Page 1 Quick Start Guide Electronic A.C. current meter for DIN rail mounting with MID Kurzanleitung:  declaration of conformity and ModBus interface (converter connection meter) Warning Elektronischer Drehstromzähler  The meter's case is sealed and may not be opened. Opening the meter and/or breaking the seal für DIN‐Schienenmontage ...
  • Page 2: Technical Data

    24/25 Connection for external tariff (230V) Pulse outputs (S The pulse output from the Solar-Log™ PRO380-CT delivers a pulse that corresponds to the secondary mea- sured kWh (kvar) values. The pulse length of the pulse output is permanently set to 30 ms.
  • Page 3 7500 5000 4000 1250 1000 Connection diagram for different operating modes Alle Anzeigewerte des Zählers:   Zählertyp:       PRO380, 100A  Durch Drücken der Tasten wechselt der Zähler von der automa�sch rollierenden Anzeige  Technische Daten:  Solar-Log™ PRO380-CT (RS485 or S ) connection assignments in die manuelle Anzeige. Hier können mi�els Tastendruck alle verfügbaren Anzeigewerte  Nennspannung :      230/ 400V AC   Strom:          0,25‐ 5(100)A  der Reihe nach aufgerufen werden. Wird keine gedrückt, kehrt der Zähler nach kurzer Zeit  The meter connections are labeled IN (bottom) and OUT (top).
  • Page 4 Alle Anzeigewerte des Zählers:   Durch Drücken der Tasten wechselt der Zähler von der automa�sch rollierenden Anzeige  in die manuelle Anzeige. Hier können mi�els Tastendruck alle verfügbaren Anzeigewerte  All display values of the meter der Reihe nach aufgerufen werden. Wird keine gedrückt, kehrt der Zähler nach kurzer Zeit  Change the meter from the automatically rotating display to the manual display by pressing the keys. Pressing wieder in den automa�schen Modus zurück.   on the keys here allows all of the available display values to be accessed in sequence. If no keys are pressed after a short time, the meter reverts back to the automatic display mode.
