Solar-Log 2000; Fig.: Top Connections Solar-Log 2000 - Solar-Log 200 Manual

8.3 Solar-Log 2000

Top connections

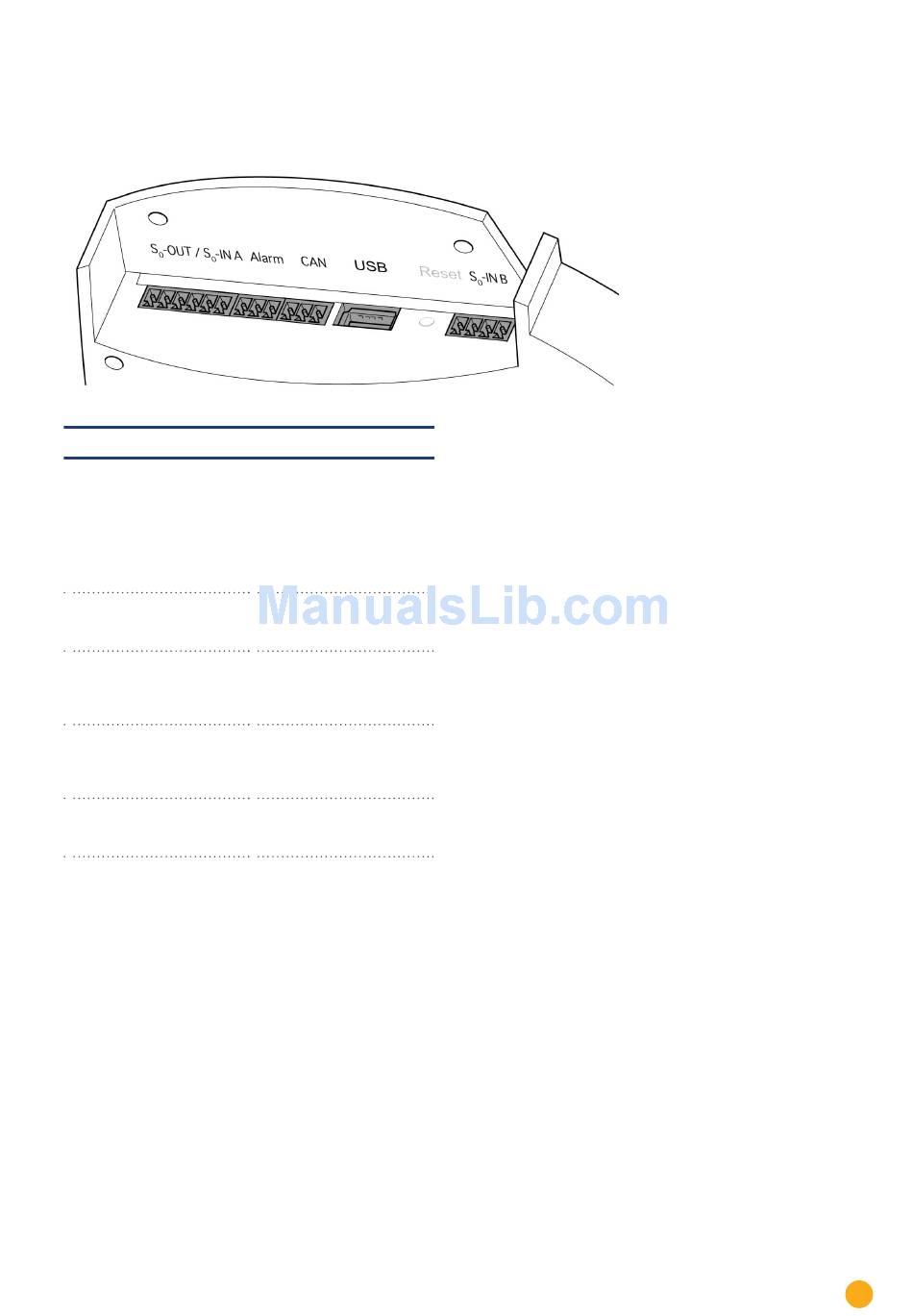

Fig.: Top Connections Solar-Log 2000

Solar-Log 2000
S0-Out
S0-IN A
Alarm
CAN
USB
S0-IN B
S0 pulse output for
connecting to a large
external screen. S0 pulse
input for connection to
an external power meter.
Please note the connection
characteristics of the S0
connection.
Connection for contact
strip for anti-theft protec-
tion.
CAN bus — which, for
example, can be used to
connect Voltwerk, Conergy
or Suntechnics inverters
USB connection. Suitable
for USB sticks.
Not suitable for a connecti-
on to a PC
S0 pulse input for connec-
tion to an external power
meter.
Unit connections
23
