Hardware Overview

Front Panel

The following table describes the labels that are affixed to the CWGE24MS.
Port
SFP ports
Giga Ethernet Port 4 × Gigabit Combo (10/100/1000 RJ-45 or 100FX/GbE SFP)
Console
1
1. Power Connector
2. LEDs for Post, Power, Alarm; Speed/Link/Activity for 24 SFP ports
3. 100/1000Base-X Fiber port on SFP
4. LED for Ethernet ports 1000Mbps Speed/Link/Activity status
5. 10/100/1000Base-T(X) Ethernet port and 100/1000Base-X SFP (combo port)
6. Console port (DB9)
Connectors
The Switch utilizes ports with copper and SFP fiber port connectors functioning under Fast
Ethernet/Gigabit Ethernet standards.
100FX/1000Base-SX/LX SFP Ports
TECH SUPPORT: 1.888.678.9427
Description
20 × 100BaseX
Use RS-232 with DB9 connecter to manage switch.
2
2

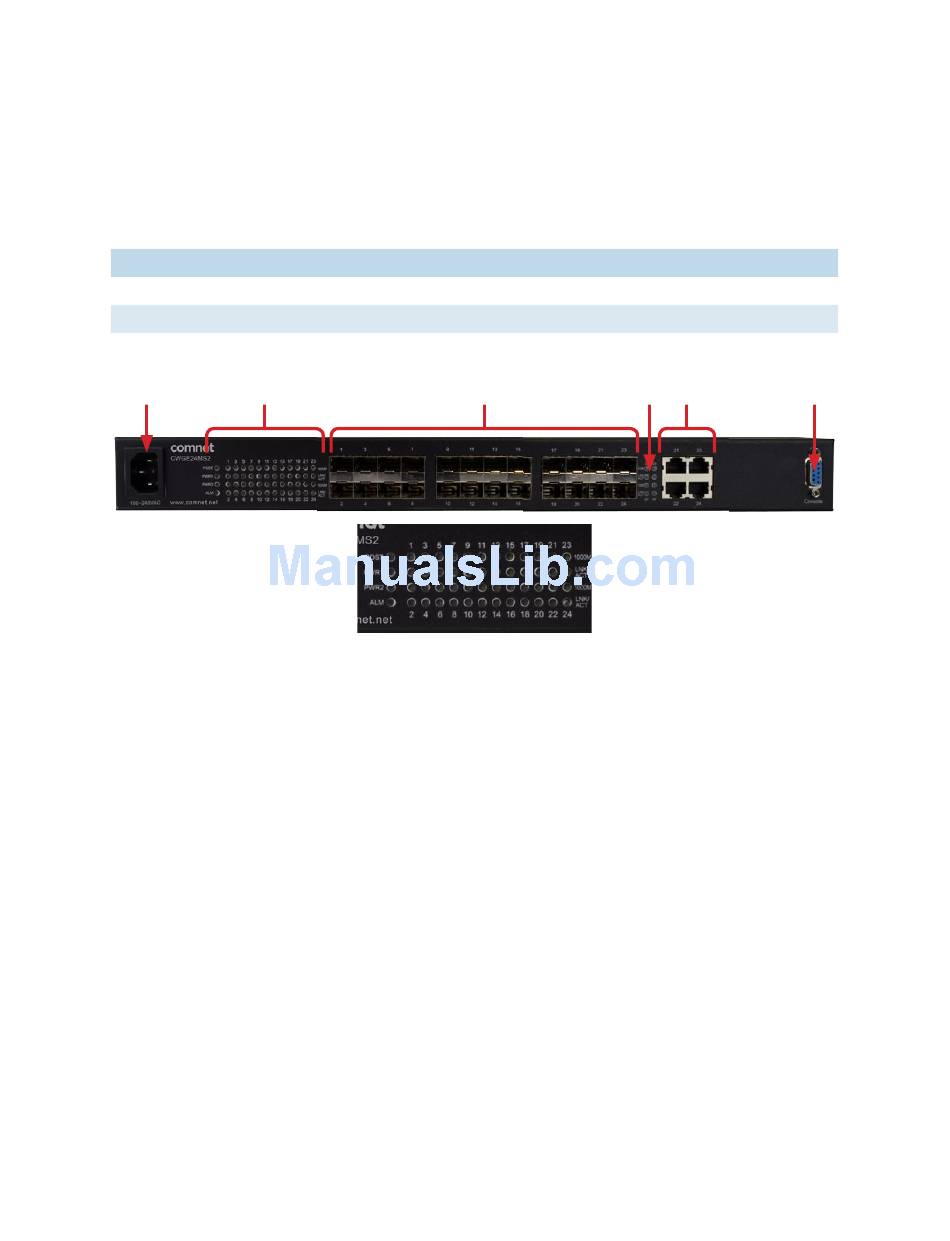

CWGE24MS Front Panel
3 4
CWGE24MS2
5 6
