This guide serves the following
ComNet Model Numbers:
CNGE3FE8MS
CNGE3FE8MSPOE
CNGE3FE8MSPOEHO
QUICK START GUIDE
CNGE3FE8MS[POE][HO]
Environmentally Hardened Managed Ethernet Switch
3 SFP + 8 Electrical Ports with Optional 30 or 60 Watt PoE

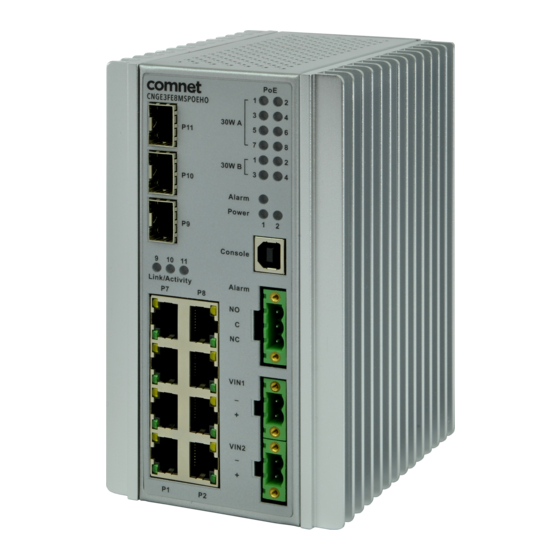

The ComNet CNGE3FE8MS[POE][HO] has three 100/1000Base-FX SFP ports and eight
10/100Base-TX ports. Two of the SFP ports support 2.5 Gbps SFPs for high speed
communication in bandwidth intensive applications. All SFP ports utilize ComNet
SFP modules for fiber and connector type and distance. The IEEE802.3-compliant unit
offers multiple Ethernet redundancy protocols (MSTP/RSTP/STP/ERPS (G.8032)) which
protect your applications from network interruptions or temporary malfunctions by
redirecting transmission within the network. The switch provides advanced IP-based
management that can limit the maximum bandwidth for each connected IP device,
allowing the user to adjust usage. Two models are available which supply Power
over Ethernet (PoE). The CNGE3FE8MSPOE model provides eight electrical ports
supporting up to thirty watts of power. On the CNGE3FE8MSPOEHO model, four
of the eight PoE ports can support up to sixty watts of PoE power. All PoE ports are
IEEE802.3at compliant.
Rev. 11.7.17
Advertisement
Table of Contents
Related Manuals for Comnet CNGE3FE8MS
Summary of Contents for Comnet CNGE3FE8MS
- Page 1 Environmentally Hardened Managed Ethernet Switch 3 SFP + 8 Electrical Ports with Optional 30 or 60 Watt PoE The ComNet CNGE3FE8MS[POE][HO] has three 100/1000Base-FX SFP ports and eight This guide serves the following 10/100Base-TX ports. Two of the SFP ports support 2.5 Gbps SFPs for high speed ComNet Model Numbers: communication in bandwidth intensive applications.
-
Page 2: Table Of Contents
QUICK START GUIDE CNGE3FE8MS[POE][HO] Contents Regulatory Compliance Statement Warranty Disclaimer Safety Information Hardware Installation Installing the Switch on DIN-Rail Wall Mounting Installation Hardware Overview Power Supply Front Panel LEDs POEHO 60 W PoE Model WEB Management TECH SUPPORT: 1.888.678.9427 QSG_CNGE3FE8MS[POE][HO]_REV– Rev. 11.7.17 PAGE 2... -
Page 3: Regulatory Compliance Statement
ComNet warrants that all ComNet products are free from defects in material and workmanship for a specified warranty period from the invoice date for the life of the installation. ComNet will repair or replace products found by ComNet to be defective within this warranty period, with shipment expenses apportioned by ComNet and the distributor. -
Page 4: Safety Information
QUICK START GUIDE CNGE3FE8MS[POE][HO] Safety Information » Only ComNet service personnel can service the equipment. Please contact ComNet Technical Support. » The equipment should be installed in locations with controlled access, or other means of security, and controlled by persons of authority. When operating at temperatures above 51º C, the equipment surfaces will be hot to the touch. -
Page 5: Hardware Installation
QUICK START GUIDE CNGE3FE8MS[POE][HO] Hardware Installation Installing the Switch on DIN-Rail Each switch has a Din-Rail kit on the rear panel. The DIN-Rail kit affixes the switch to the DIN-Rail. TECH SUPPORT: 1.888.678.9427 QSG_CNGE3FE8MS[POE][HO]_REV– Rev. 11.7.17 PAGE 5... - Page 6 QUICK START GUIDE CNGE3FE8MS[POE][HO] It is easy to install the switch on the Din-Rail: Mount Series on DIN-Rail Step 1: Tilt the switch and mount the metal spring to DIN-Rail. Step 2: Push the switch toward the DIN-Rail until you hear the spring snap into place TECH SUPPORT: 1.888.678.9427...
-
Page 7: Wall Mounting Installation
QUICK START GUIDE CNGE3FE8MS[POE][HO] Wall Mounting Installation Each switch has another installation method for users to fix the switch. A wall mount panel can be found in the package. The following steps show how to mount the switch on the wall:... -
Page 8: Hardware Overview
QUICK START GUIDE CNGE3FE8MS[POE][HO] Hardware Overview CNGE3FE8MS[POE][HO] Call-out Description 1 × 100/1000Base-FX SFP Port 2 × 100/1000/2500Base-FX SFP Ports Link/Activity LED Indicators for SFP Ports 8 × 10/100Base-TX RJ45 Ports PoE LED Indicators (PoE models only) Alarm and Power LED Indicators... -
Page 9: Power Supply
CNGE3FE8MS[POE][HO] Power Supply For CNGE3FE8MS Models, Power Supply must be 12 to 57 VDC @ 10 W max. For CNGE3FE8MSPOE Model, Power Supply must be 44 to 57 VDC @ 250W max. For CNGE3FE8MSPOEHO Model, Power Supply must be 44 to 57 VDC @ 370W max. -
Page 10: Web Management
QUICK START GUIDE CNGE3FE8MS[POE][HO] WEB Management Attention: While installing and upgrading firmware, please remove physical loop connection first. DO NOT power off equipment while the firmware is upgrading! Configuration by Web Browser About Web-based Management An embedded HTML web site resides in the flash memory on the CPU board. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard web browser such as Microsoft Internet Explorer. - Page 11 QUICK START GUIDE CNGE3FE8MS[POE][HO] TECH SUPPORT: 1.888.678.9427 QSG_CNGE3FE8MS[POE][HO]_REV– Rev. 11.7.17 PAGE 11...
- Page 12 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2017 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
