INSTALLATION AND OPERATION MANUAL

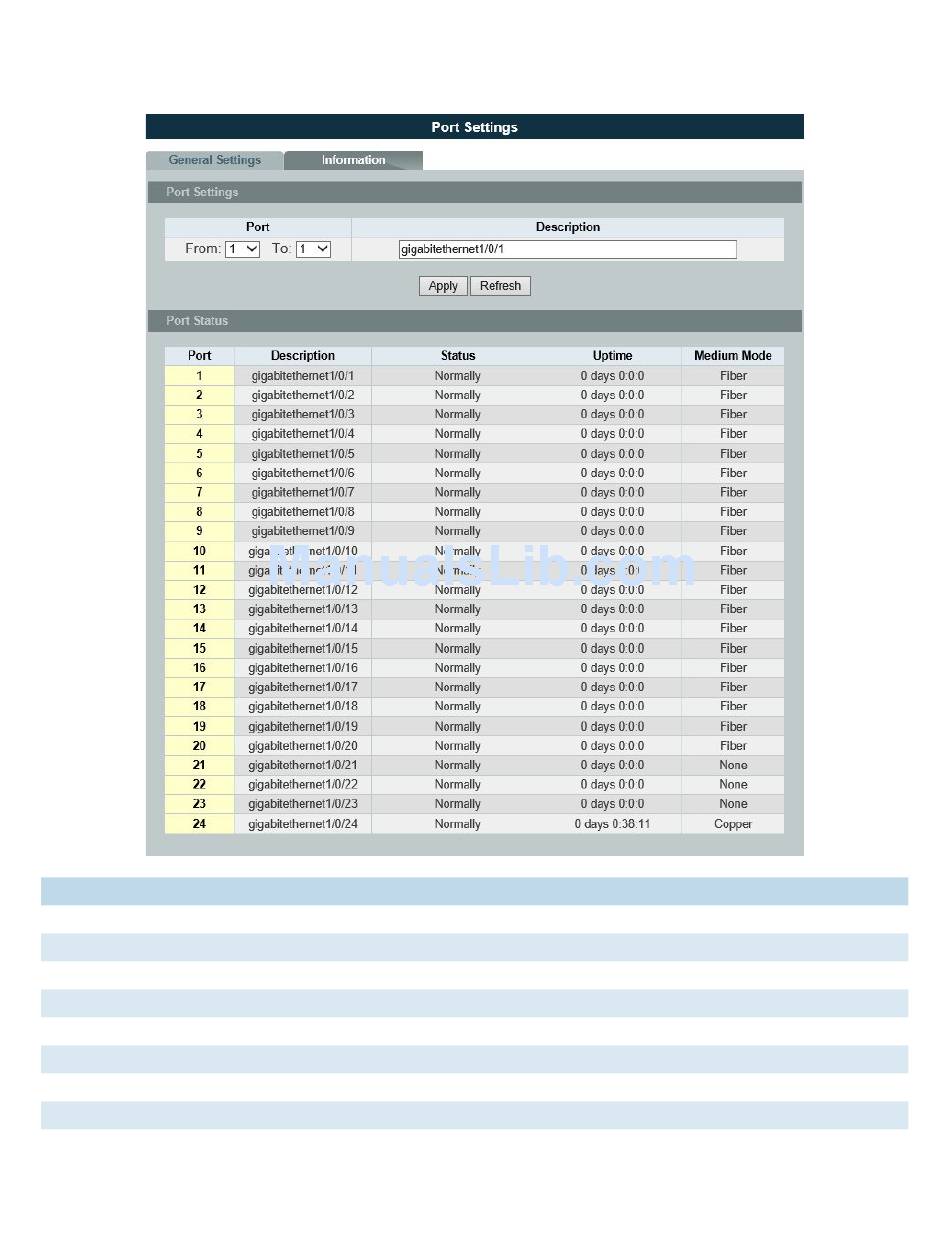

Information:
Parameter Description
Port Select a port or a range ports you want to configure on this screen.
Description Configures a meaningful name for the port(s).
Port Status
Port This field displays the port number.
Description The meaningful name for the port.
Status The field displays the detail port status if the port is blocked by some protocol.
Uptime The sustained time from last link up.
Medium Mode The current working medium mode, copper or fiber, for the port.
