This manual serves the following
ComNet Model Numbers:
CLFE4+1SMSC
CLFE4+1SMSU
CLFE4+1SMSPOEC
CLFE4+1SMSPOEU
TECH SUPPORT: 1.888.678.9427
INSTALLATION AND OPERATION MANUAL
CLFE4+1SMS[POE](C,U) Series
10/100 4TX+1EX ETHERNET SELF-MANAGED SWITCH
WITH POWER OVER ETHERNET (POE+)

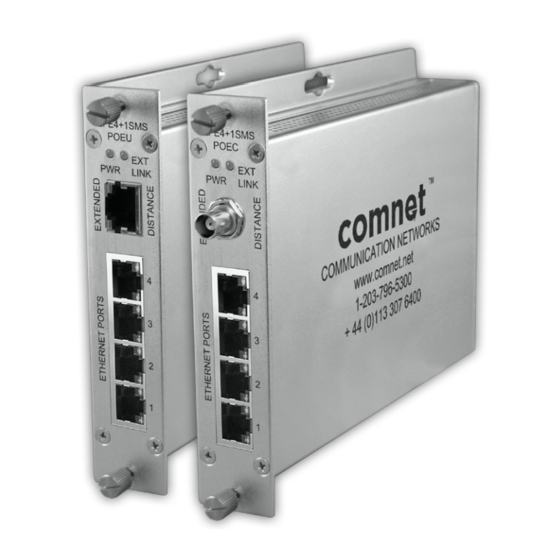

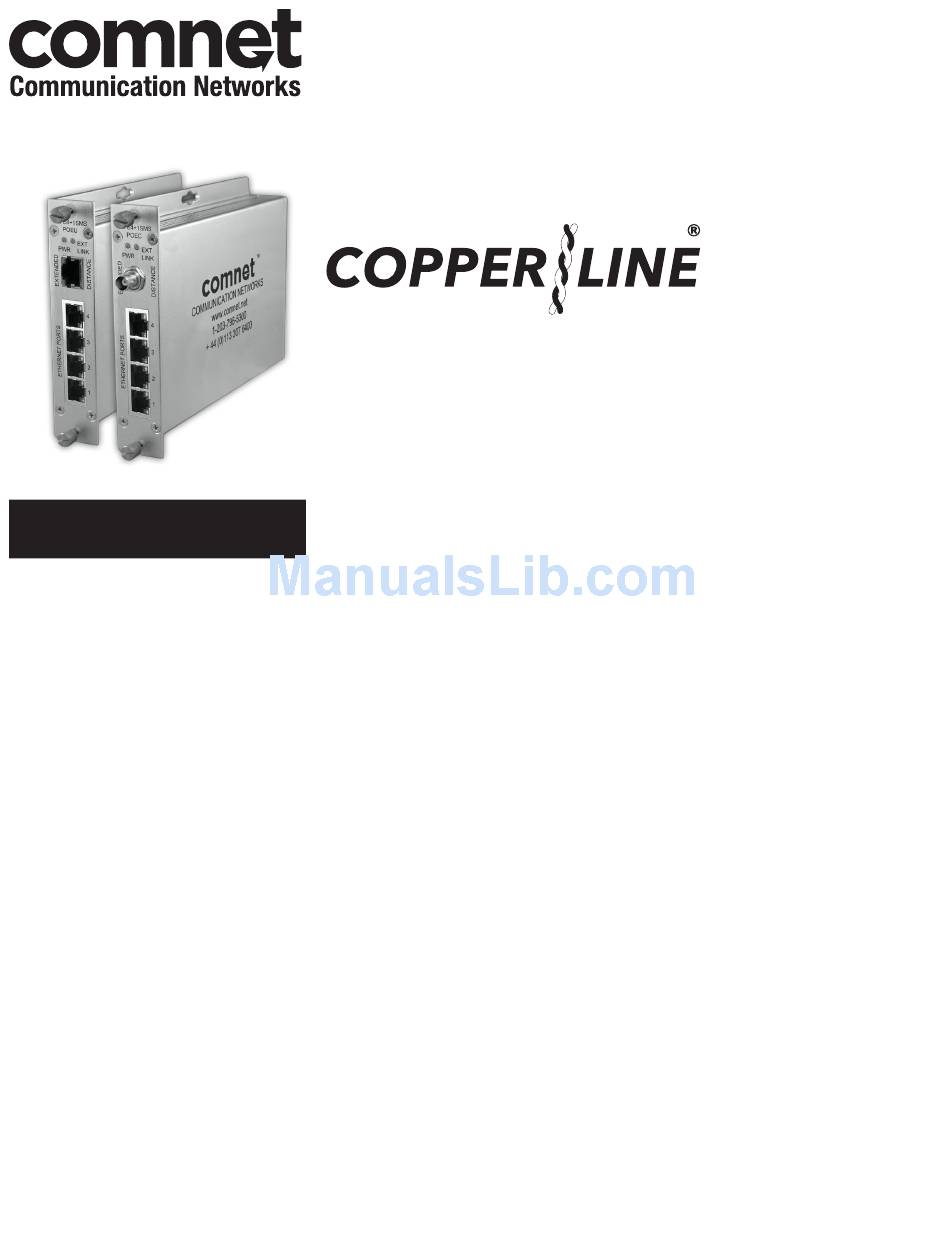

The ComNet
CopperLine® CLFE4+1SMS[POE](C,U) is a five-port Ethernet switch
™
with uplink management functionality and provides 4 copper ports operating at
10/100Mbps and is designed to combine four electrical ports into a single electrical
Cat5, UTP or Coax CopperLine port that forwards this data to the next network device.
There is no programming required to use this product. The ComNet CLFE4+1SMS
comes pre-programmed, preventing network video flooding with DIP switch selection
of the fifth electrical port as uplink or as an unmanaged switch. Ports 1–4 of the
CLFE4+1SMSPOE can supply up to thirty (30) watts of Power over Ethernet (PoE) and
incorporate PoE+ features based on the IEEE 802.3at standard. It is "Plug-and-Play".
Bi-color (Red/Green) LED indicators are provided for rapidly ascertaining equipment
operating status. Table 2 on Page 7 describes the LED indicators for each light on
the unit.
These units are interchangeable between stand-alone or card mount configurations,
or may be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4
adaptor plate. See Figure A on Page 10 for mounting instructions.
INS_CLFE4+1SMS[POE](C,U)_REV– 10/27/11 PAGE 1
Advertisement
Table of Contents
Related Manuals for Comnet CLFE4+1SMS[POE](C,U) Series
Summary of Contents for Comnet CLFE4+1SMS[POE](C,U) Series
- Page 1 These units are interchangeable between stand-alone or card mount configurations, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate. See Figure A on Page 10 for mounting instructions. TECH SUPPORT: 1.888.678.9427...
- Page 2 INSTALLATION AND OPERATION MANUAL CLFE4+1SMS[POE](C,U) SERIES FIGURE 1 – CLFE4+1SMSPOEC FOUR CHANNEL SURFACE OR RACK MOUNT COAX UNIT WITH POE EXTENDED DISTANCE PORT 4 ETHERNET PORT 3 ETHERNET POE– PORT 2 ETHERNET POE+ Black w/ White PORT 1 Stripe (GND)
- Page 3 INSTALLATION AND OPERATION MANUAL CLFE4+1SMS[POE](C,U) SERIES FIGURE 3 – CLFE4+1SMSPOEU FOUR CHANNEL SURFACE OR RACK MOUNT UTP UNIT WITH POE EXTENDED DISTANCE PORT 4 ETHERNET PORT 3 ETHERNET POE– PORT 2 ETHERNET POE+ Black w/ White PORT 1 Stripe (GND)
- Page 4 INSTALLATION AND OPERATION MANUAL CLFE4+1SMS[POE](C,U) SERIES FIGURE 5 – CLFE4+1SMSC FOUR CHANNEL SURFACE OR RACK MOUNT COAX UNIT EXTENDED DISTANCE PORT 4 ETHERNET PORT 3 ETHERNET PORT 2 ETHERNET Black w/ White PORT 1 Stripe (GND) ETHERNET Black (+Vin) Operating Power: 9 to 15 VDC Power Consumption: 10W FIGURE 6 –...
- Page 5 INSTALLATION AND OPERATION MANUAL CLFE4+1SMS[POE](C,U) SERIES FIGURE 7 – CLFE4+1SMSU FOUR CHANNEL SURFACE OR RACK MOUNT COAX UNIT EXTENDED DISTANCE PORT 4 ETHERNET PORT 3 ETHERNET PORT 2 ETHERNET Black w/ White PORT 1 Stripe (GND) ETHERNET Black (+Vin) Operating Power: 9 to 15 VDC Power Consumption: 10W FIGURE 8 –...
-
Page 6: Application Diagram
Your actual network will differ, requiring changes or perhaps additional network equipment to accommodate the systems as illustrated. Please contact ComNet’s Design Center to discuss your specific requirements. TECH SUPPORT: 1.888.678.9427 INS_CLFE4+1SMS[POE](C,U)_REV– 10/27/11 PAGE 6... -
Page 7: Installation Instructions
POE+ and POE- Note: For the PoE models only use the PoE power connectors. Contact the ComNet Design Center, or refer to the appropriate installation and operation manual when configuring and specifying power for a deployment. † 8 - VERIFY FUNCTIONALITY See LED table below and Troubleshooting Guide if corrective action is needed. -
Page 8: Application Notes
INSTALLATION AND OPERATION MANUAL CLFE4+1SMS[POE](C,U) SERIES APPLICATION NOTES Mixed PoE and Non-PoE systems can be implemented. Lower data rates generally provide longer operating distances. TABLE 3 – APPROXIMATE MAXIMUM EXTENDED DISTANCES Media COAX - RG59/U UTP - 1 pair UTP - 4 pair... - Page 9 INSTALLATION AND OPERATION MANUAL CLFE4+1SMS[POE](C,U) SERIES ATTACHING THE FERRITE CORE TO THE POWER CORD OF THE UNIT (Ferrite core not included, must be purchased separately) When using v48VDC Power Supplies Attaching the ferrite core to the power cord of the unit helps prevent RF interference from radio signals.
-
Page 10: Installation Considerations
Unit is to be used with a Listed Class 2 power supply. Although [0.16in] WARNING: 4.19cm the units may be mounted inside a ComNet rack the PoE models cannot be 0.62cm [1.65in] [0.24in] powered from the built-in rack PSU; they must be powered by an external 48-56VDC PSU.
