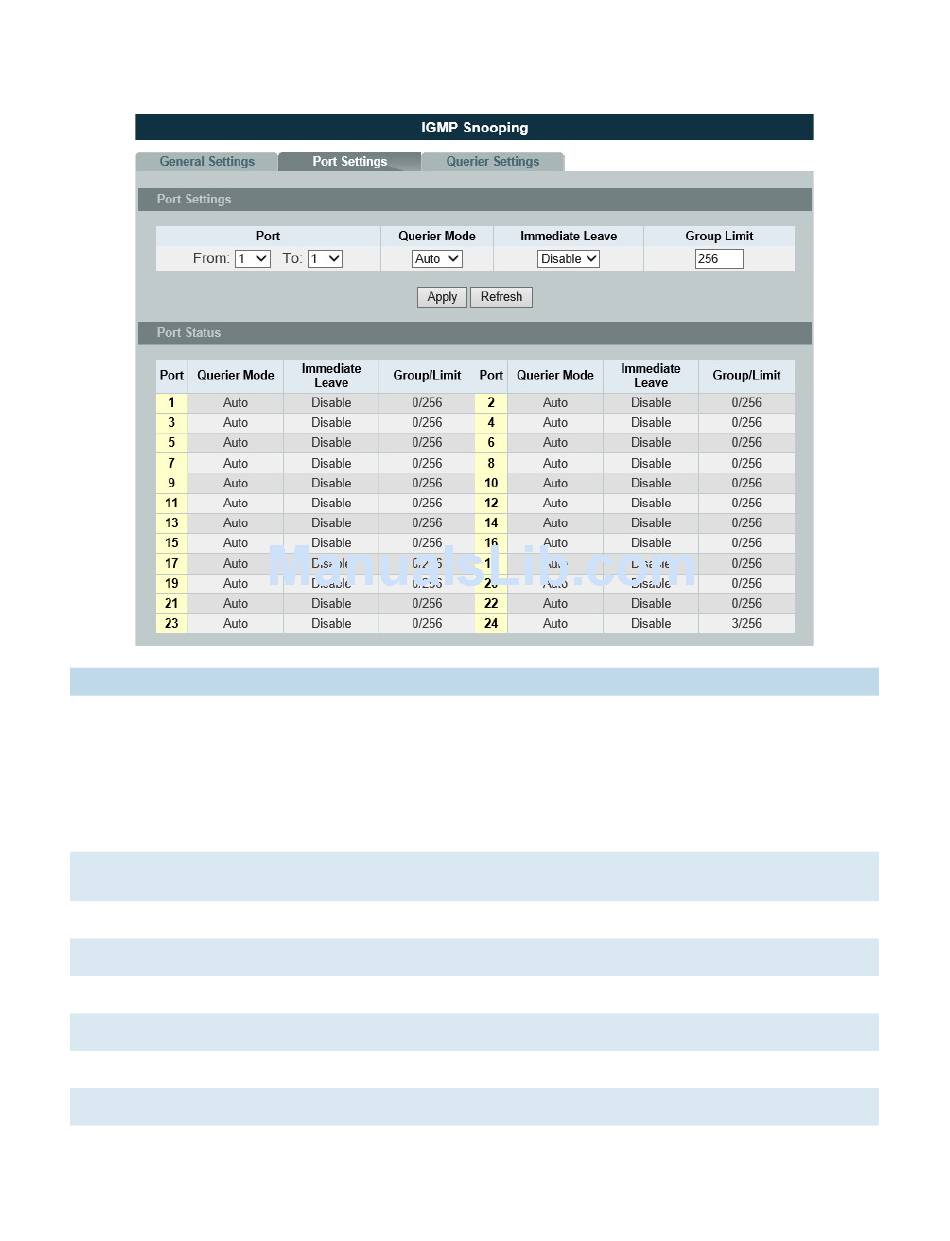

Port Settings
Parameter
Querier Mode
Immediate
Leave
Group Limit
Apply
Refresh
Port
Querier Mode
Immediate Leave
Group Counts
TECH SUPPORT: 1.888.678.9427
Description
Select the desired setting, Auto, Fixed, or Edge. Auto means the Switch uses
the port as an IGMP query port if the port receives IGMP query packets.
Fixed means the Switch always treats the port(s) as IGMP query port(s). This is
for when connecting an IGMP multicast server to the port(s). Edge means the
Switch does not use the port as an IGMP query port. In this case, the Switch
does not keep a record of an IGMP router being connected to this port and
the Switch does not forward IGMP join or leave packets to this port.
Select individual ports on which to enable immediate leave.
Configures the maximum group for the port or a range of ports.
Click Apply to apply the settings.
Click this to reset the fields.
The port ID.
The Querier mode setting for the specific port.
The Immediate Leave setting for the specific port.
The current joining group count and the maximum group count.
