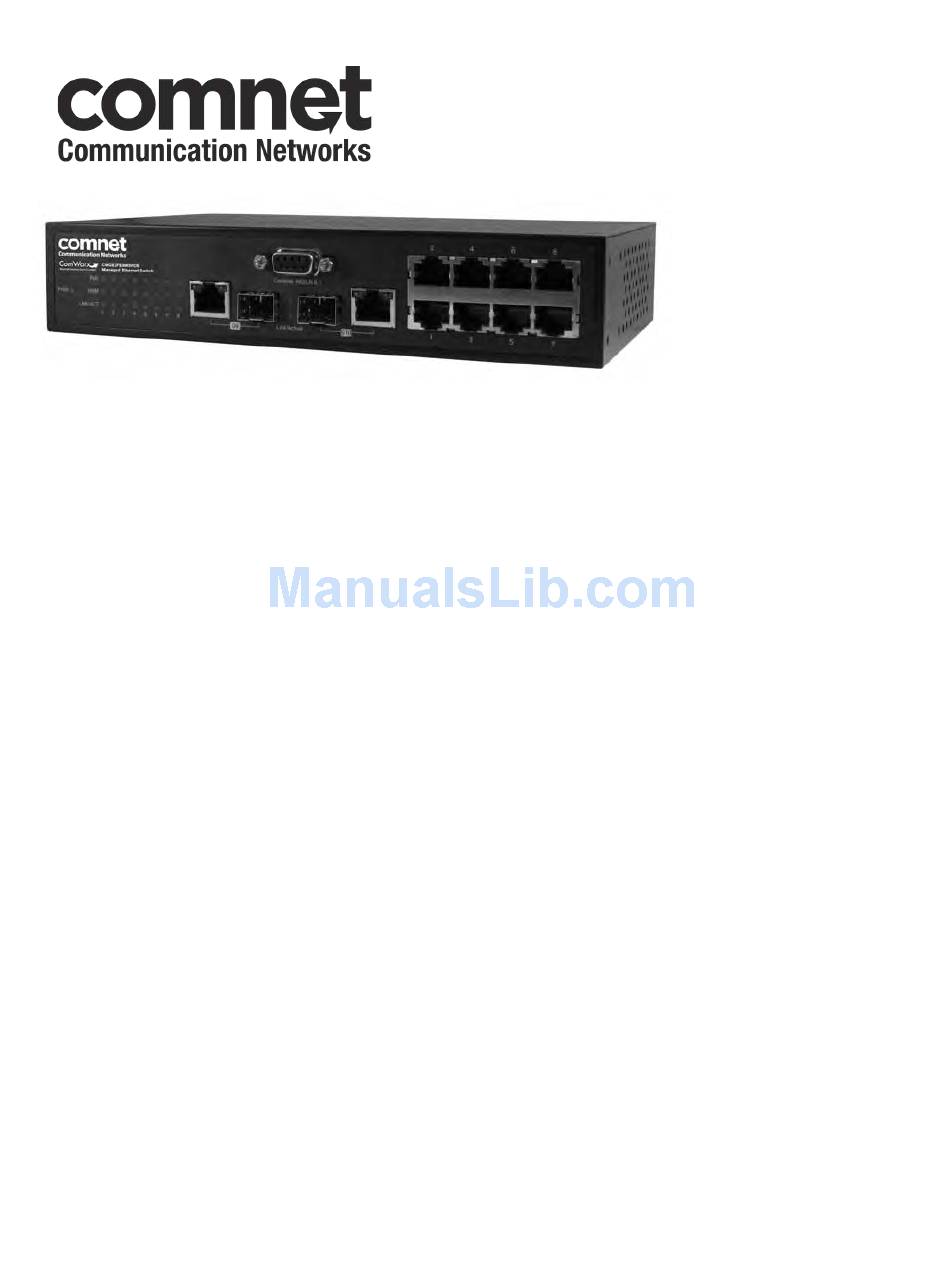

INSTALLATION AND OPERATION MANUAL
CWGE2FE8MSPOE
COMMERCIAL GRADE MANAGED ETHERNET SWITCH:
(8) 10/100TX RJ45 +
(2) 10/100/1000TX OR 100/1000 FX SFP PORTS
WITH POWER OVER ETHERNET (POE)
V1.0 – September 2010
The ComNet™ CWGE2FE8MSPOE Managed Ethernet Switch provides transmission of (8) 10/100 BASE-TX and
(2) 10/100/1000TX or 100/1000FX combo ports. These units are available for use with either conventional
CAT-5e copper or optical transmission media. The 8 electrical ports support the 10/100 Mbps Ethernet IEEE
802.3 protocol, and auto-negotiating and auto-MDI/MDIX features are provided for simplicity and ease of
installation. All 8 ports support IEEE.802.3af based POE (Max total PoE budget is 77W). 2 ports are 10/100/1000
configurable for copper or fiber media for use with multimode or single mode optical fiber, selected by optional
SFP modules. These network managed layer 2 switches are optically (100/1000 BASE-FX) and electrically
compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation,
and no electrical or optical adjustments are ever required. The CWGE2FE8MSPOE incorporates LED indicators for
monitoring the operating status of the managed switch and network.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWGE2FE8MSPOE and is the answer not in the manual?

Questions and answers

Related Manuals for Comnet CWGE2FE8MSPOE

Summary of Contents for Comnet CWGE2FE8MSPOE

  • Page 1 SFP modules. These network managed layer 2 switches are optically (100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical or optical adjustments are ever required. The CWGE2FE8MSPOE incorporates LED indicators for monitoring the operating status of the managed switch and network.

  • Page 2: Fcc Warning

    FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.

  • Page 3: Table Of Contents

    Content FCC Warning..................i
 CE Mark Warning .................i
 Introduction ................1
 Features ..................... 2
 Hardware Feature ................4
 Software Feature................7
 Package Contents ................10
 Hardware Description ............11
 Physical Dimension ................11
 Front Panel..................11
...
  • Page 4 System Commands Set ................... 20
 Port Commands Set ..................23
 Trunk Commands Set..................27
 VLAN Commands Set..................28
 QOS Commands Set ..................34
 IGMP Commands Set..................35
 Mac / Filter Table Commands Set ..............35
 SNMP Commands Set..................37
 Port Mirroring Commands Set ................. 40
 802.1x Commands Set ..................
  • Page 5 System Event Log Configuration............62
 System Event Log—Syslog Configuration ........62
 System Event Log—SMTP Configuration ........64
 System Event Log—Event Configuration ......... 66
 SNTP Configuration ................. 68
 IP Security ..................71
 User Authentication ................73
...
  • Page 6 QoS Configuration................110
 QoS Policy and Priority Type................. 110
 Port-Based Priority..................112
 COS Configuration..................112
 TOS Configuration ..................112
 IGMP Configuration................ 113
 X-Ring .................... 114
 LLDP ....................117
 Multicast Filtering................... 118
 Security—802.1X/Radius Configuration......... 119
 System Configuration ..................119
 802.1x Port Configuration ................
  • Page 7 Appendix................134
 Console Port Pin Assignments............134
...

  • Page 8: Introduction

    Optionally, the standard permits Powered Devices to signal to the PSEs exactly how much power they need. The CWGE2FE8MSPOE Managed Switch is one of the ComWorx multi-port switches that can be used to build high-performance switched workgroup networks. Any one of the switches is a store-and-forward device that offers low latency for high-speed networking.

  • Page 9: Features

    Features  System Interface/Performance  RJ-45 ports support Auto MDI/MDI-X Function  Embedded 8-port PoE function  Store-and-Forward Switching Architecture  Back-plane (Switching Fabric): 5.6Gbps  1Mbits Packet Buffer  8K MAC Address Table  VLAN  Port Based VLAN ...
  • Page 10  X-ring X-ring, Dual Homing, and Couple Ring Topology   Provides redundant backup feature and the recovery time below 300ms  Bandwidth Control  Ingress Packet Filter and Egress Rate Limit  Broadcast / Multicast / Flooded Unicast Packet Filter Control ...

  • Page 11: Hardware Feature

    Hardware Feature IEEE802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3z Gigabit fiber IEEE 802.3ab 1000Base-T IEEE 802.3x Flow control and Back pressure IEEE 802.3ad Port trunk with LACP Standard IEEE 802.1d Spanning tree protocol IEEE 802.1w Rapid spanning tree IEEE 802.1p Class of service IEEE 802.1Q VLAN Tagging IEEE 802.1x user authentication IEEE 802.3af Power Over Ethernet...
  • Page 12 DRAM 32Mbytes 100Base-T: 8x RJ-45 with auto MDI/MDI-X and PoE inject function Connector 10/100/1000T/ 100/1000Mini-GBIC Combo: 2 x RJ-45 + 2 x 100/1000 SFP sockets RJ-45 port # 1~# 8 support IEEE 802.3af End-point, Alternative A mode. PoE Pin Assignment Per port provides 15.4W ability Positive (VCC+): RJ-45 pin 1, 2 Negative (VCC-): RJ-45 pin 3, 6...
  • Page 13 Operating C ~ 50 C, 5%~95%RH Environment Storage Environment C ~ 70 C, 5%~95%RH Dimensions 217mm(W) x 43mm(H) x 140mm(D) FCC Class A Safety...

  • Page 14: Software Feature

    Software Feature SNMP v1 SNMP v2c Management SNMP v3 Web/Telnet/Console (CLI) Port based VLAN IEEE802.1Q Tag VLAN(256 entries) / VLAN ID(Up VLAN to 4K, VLAN ID can be assigned from 1 to 4094) GVRP (256 Groups) Port Trunk with LACP Port Trunk: 4 trunk groups of maximum 4 LACP trunk members IEEE802.1d Spanning tree...
  • Page 15 Supports100 entries of MAC address for static Port Security MAC and another 100 for MAC filter Supports 3 mirroring types: “RX, TX and Both Port Mirror packet” Supports IGMP snooping v1 and v2 IGMP 256 multicast groups IGMP query mode Supports 10 IP addresses that have permission to access the switch management to prevent IP Security...
  • Page 16 1. Device cold start 2. Authentication failure SNMP Trap 3. X-ring topology changed 4. Port Link up/Link down Trap station up to 3 Provide DHCP Client/DHCP Server/IP Binding DHCP functions Provides DNS client feature and supports Primary and Secondary DNS server Supports Simple Network Time Protocol to SNTP synchronize system clock in Internet...

  • Page 17: Package Contents

    Package Contents Unpack the packing of the then verify them CWGE2FE8MSPOE Managed Switch against the checklist below.  CWGE2FE8MSPOE Managed Switch x 1  Rubber Pads x 4 RS-232 cable x 1  Power Adaptor x 1   Power Cord x 1 ...

  • Page 18: Hardware Description

    43mm(H) x 140mm(H). Front Panel The front panel of the CWGE2FE8MSPOE Managed Switch consists of 8 x 10/100Base-TX RJ-45 Ethernet ports (Auto MDI/MDIX), 2 Gigabit combo ports involve 2 10/100/1000Mbps Ethernet RJ-45 port (automatic MDI/MDIX) and 2 100/1000 Mini-GBIC ports. The LED Indicators are also located on the front panel of the switch.
  • Page 19 to another switch or workstation without changing non-crossover or crossover cabling. Mini-GBIC port: The appropriate replaceable Mini-GBIC port is available with a  variety of different transmitter and receiver types, allowing users to select the appropriate transceiver for each link to provide the required optical reach over the available optical fiber type.

  • Page 20: Rear Panel

    Rear Panel The power plug is located on the rear panel of the CWGE2FE8MSPOE Managed Switch as shown below. The switch will work with AC in the voltage range of AC 100-240V with Frequency of 50-60Hz. The Rear Panel of CWGE2FE8MSPOE Managed Switch...

  • Page 21: Desktop Installation

    The power adaptor works with voltage range of AC in the 100-240V /Frequency of 50~60Hz for CWGE2FE8MSPOE Managed Switch. Check the power indicator on the front panel to see if power is properly supplied.

  • Page 22: Network Application

    UTP cables for supplying the power that Powered Devices (PD) need. The CWGE2FE8MSPOE can provide power to Powered Devices (PD) that follow the IEEE 802.3af standard in the network. It can solve the problem of position limitation. The network devices can be installed in more appropriate position for better performance.

  • Page 23: Segment Bridge

    Segment Bridge For enterprise networks where large data broadcasts are constantly processed, this switch is an ideal solution for department users to connect to the corporate backbone. In the illustration below, two managed PoE switches with PCs, print server, local server, wireless AP (IEEE 802.3af compliant), and IP camera (IEEE 802.3af compliant) attached are both connect to the core switch.

  • Page 24: Console Management

    Console Management Login in the Console Interface When the connection between switch and PC is ready, turn on the PC and run a terminal emulation program or Hyper Terminal and configure its communication parameters to match the following default characteristics of the console port: Baud Rate: 9600 bps Data Bits: 8 Parity: none...

  • Page 25: Cli Management

    CLI Management The system supports console management—CLI command. After you log in to the system, you will see a command prompt. To enter CLI management interface, enter “enable” command. The following table lists the CLI commands and description. CLI command interface Commands Level Access Exit...
  • Page 26 Configura configure (config)# privileged parameters that apply to tion command EXEC your switch as a whole. while in mode, privileged enter exit EXEC mode. or end Enter the vlan database To exit to VLAN command switch user EXEC Use this mode to configure database while in (vlan)#...

  • Page 27: Commands Set List

    Commands Set List User EXEC Privileged EXEC Global configuration VLAN database Interface configuration System Commands Set Netstar Commands Level Description Example show config Show switch switch>show config configuration show terminal Show console switch#show terminal information write memory Save user switch#write memory configuration into permanent memory (flash rom)
  • Page 28 ip address Configure the IP switch(config)#ip address [Ip-address] address of switch 192.168.10.1 255.255.255.0 [Subnet-mask] 192.168.10.254 [Gateway] ip dhcp Enable DHCP client switch(config)#ip dhcp function of switch show ip Show IP information of switch#show ip switch no ip dhcp Disable DHCP client switch(config)#no ip dhcp function of switch reload...
  • Page 29 dhcpserver dnsip Configure DNS IP for switch(config)#dhcpserver dnsip [DNS IP] DHCP clients 192.168.1.1 dhcpserver leasetime Configure lease time switch(config)#dhcpserver [Hours] (in hour) leasetime 1 dhcpserver ipbinding Set static IP for DHCP switch(config)#interface [IP address] clients by port fastEthernet 2 switch(config)#dhcpserver ipbinding 192.168.1.1 show dhcpserver Show configuration of...

  • Page 30: Port Commands Set

    no security Disable IP security switch(config)#no security function no security http Disable IP security of switch(config)#no security http HTTP server no security telnet Disable IP security of switch(config)#no security telnet telnet server Port Commands Set Netstar Commands Level Description Example interface fastEthernet Choose the port for switch(config)#interface...
  • Page 31 security enable Enable security of switch(config)#interface interface fastEthernet 2 switch(config-if)#security enable no security Disable security of switch(config)#interface interface fastEthernet 2 switch(config-if)#no security bandwidth type all Set interface ingress switch(config)#interface limit frame type to fastEthernet 2 ‘accept all frame’ switch(config-if)#bandwidth type bandwidth type Set interface ingress switch(config)#interface...
  • Page 32 bandwidth out Set interface output switch(config)#interface [Value] bandwidth. Rate fastEthernet 2 Range is from 100 switch(config-if)#bandwidth out kbps to 102400 kbps or to 256000 kbps for giga ports, and zero means no limit. show bandwidth Show interfaces switch(config)#interface bandwidth control fastEthernet 2 switch(config-if)#show bandwidth state...
  • Page 33 show interface show interface statistic switch(config)#interface accounting counter fastEthernet 2 switch(config-if)#show interface accounting no accounting Clear interface switch(config)#interface accounting information fastEthernet 2 switch(config-if)#no accounting...

  • Page 34: Trunk Commands Set

    Trunk Commands Set Netstar Commands Level Description Example aggregator priority Set port group system switch(config)#aggregator priority [1~65535] priority aggregator activityport Set activity port switch(config)#aggregator [Group ID] activityport 2 [Port Numbers] aggregator group Assign a trunk group switch(config)#aggregator group [GroupID] [Port-list] with LACP active.

  • Page 35: Vlan Commands Set

    aggregator group Assign a static trunk switch(config)#aggregator group [GroupID] [Port-list] group. 1 2-4 nolacp nolacp [GroupID] :1~4 [Port-list]:Member port switch(config)#aggregator group list, This parameter 1 3,1,2 nolacp could be a port range(ex.1-4) or a port list separate by a comma(ex.2, 3, 6) show aggregator Show the information switch#show aggregator 1...
  • Page 36 no vlan No VLAN Switch(vlan)#no vlan Ported based VLAN configuration vlan port-based Add new port based switch(vlan)#vlan port-based grpname VALN grpname test grpid 2 port 2-4 [Group Name] grpid switch(vlan)#vlan port-based [GroupID] grpname test grpid 2 port 2,3,4 port [PortNumbers] show vlan [GroupID] Show VLAN...
  • Page 37 vlan 8021q port Assign a hybrid link for switch(vlan)#vlan 8021q port 3 [PortNumber] VLAN by port, if the hybrid-link untag 4 tag 3,6,8 hybrid-link untag [UntaggedVID] port belong to a trunk group, this command switch(vlan)#vlan 8021q port 3 [TaggedVID List] can’t be applied.
  • Page 38 spanning-tree priority Configure spanning switch(config)#spanning-tree [0~61440] tree priority parameter priority 32768 spanning-tree max-age Use the spanning-tree switch(config)#spanning-tree [seconds] max-age global max-age 15 configuration command to change the interval between messages the spanning tree receives from the root switch. If a switch does not receive a bridge protocol data unit (BPDU) message from...
  • Page 39 spanning-tree Use the spanning-tree switch(config)#spanning-tree forward-time [seconds] forward-time global forward-time 20 configuration command to set the forwarding-time for the specified spanning-tree instances. The forwarding time determines how long each of the listening learning states last before the port begins forwarding. stp-path-cost Use the spanning-tree switch(config)#interface...
  • Page 40 stp-path-priority Use the spanning-tree switch(config)#interface [Port Priority] port-priority interface fastEthernet 2 configuration switch(config-if)#stp-path-priority command to configure a port priority that is used when two switches tie for position as the root switch. stp-admin-p2p Admin P2P of STP switch(config)#interface [Auto|True|False] priority on this fastEthernet 2 interface.

  • Page 41: Qos Commands Set

    QOS Commands Set Netstar Commands Level Description Example qos policy Select QOS policy switch(config)#qos policy [weighted-fair|strict] scheduling weighted-fair qos prioritytype Setting of QOS priority switch(config)#qos prioritytype [port-based|cos-only|tos type -only|cos-first|tos-first] qos priority portbased Configure Port-based switch(config)#qos priority [Port] Priority portbased 1 low [lowest|low|middle|high] qos priority cos Configure COS Priority switch(config)#qos priority cos 0...

  • Page 42: Igmp Commands Set

    IGMP Commands Set Netstar Commands Level Description Example igmp enable Enable IGMP switch(config)#igmp enable snooping function Igmp query auto Set IGMP query to switch(config)#Igmp query auto auto mode Igmp query enable Set IGMP query to switch(config)#Igmp query enable enable mode show igmp Displays the details of switch#show igmp configuration...
  • Page 43 show mac-address-table Show static MAC switch#show mac-address-table static address table static show mac-address-table Show filter MAC switch#show mac-address-table filter address table. filter no mac-address-table Remove an entry of switch(config)#interface static hwaddr MAC address table of fastEthernet 2 [MAC] interface (static) switch(config-if)#no mac-address-table static hwaddr 000012345678...

  • Page 44: Snmp Commands Set

    SNMP Commands Set Netstar Commands Level Description Example snmp system-name Set SNMP agent switch(config)#snmp [System Name] system name system-name l2switch snmp system-location Set SNMP agent switch(config)#snmp [System Location] system location system-location lab snmp system-contact Set SNMP agent switch(config)#snmp [System Contact] system contact system-contact where snmp agent-mode...
  • Page 45 snmpv3 user Configure the switch(config)#snmpv3 user [User Name] userprofile for test01 group G1 password group SNMPV3 agent. AuthPW PrivPW [Group Name] Privacy password password could be empty. [Authentication Password] [Privacy Password] snmpv3 access Configure the access switch(config)#snmpv3 access context-name [Context table of SNMPV3 context-name Test group G1 Name ]...
  • Page 46 show snmp Show SNMP switch#show snmp configuration no snmp Remove the specified switch(config)#no snmp community-strings community. community-strings public [Community] no snmp-server host Remove the SNMP switch(config)#no snmp-server [Host-address] server host. host 192.168.1.50 no snmpv3 user Remove specified user switch(config)#no snmpv3 user [User Name] of SNMPv3 agent.

  • Page 47: Port Mirroring Commands Set

    Port Mirroring Commands Set Netstar Commands Level Description Example monitor rx Set RX destination port switch(config)#monitor rx of monitor function monitor tx Set TX destination port switch(config)#monitor tx of monitor function show monitor Show port monitor switch#show monitor information monitor Configure source port switch(config)#interface [RX|TX|Both]...

  • Page 48: 802.1X Commands Set

    802.1x Commands Set Netstar Commands Level Description Example 8021x enable Use the 802.1x global switch(config)# 8021x enable configuration command to enable 802.1x protocols. 8021x system radiusip Use the 802.1x system switch(config)# 8021x system [IP address] radius IP global radiusip 192.168.1.1 configuration command to change the radius server IP.
  • Page 49 8021x system nasid Use the 802.1x system switch(config)# 8021x system [words] nasid global nasid test1 configuration command to change the NAS ID 8021x misc quietperiod Use the 802.1x misc switch(config)# 8021x misc [sec.] quiet period global quietperiod 10 configuration command to specify the quiet period value of the switch.
  • Page 50 8021x misc maxrequest Use the 802.1x misc switch(config)# 8021x misc [number] max request global maxrequest 3 configuration command to set the MAX requests. 8021x misc Use the 802.1x misc switch(config)# 8021x misc reauthperiod [sec.] reauth period global reauthperiod 3000 configuration command to set the reauth period.

  • Page 51: Tftp Commands Set

    TFTP Commands Set Netstar Commands Level Description Defaults Example backup Save configuration to switch(config)#backup flash:backup_cfg TFTP and need to flash:backup_cfg specify the IP of TFTP server and the file name of image. restore flash:restore_cfg Get configuration from switch(config)#restore TFTP server and need to flash:restore_cfg specify the IP of TFTP server and the file name...
  • Page 52 system capacitive-detect Set PoE system switch(poe)# system [Enable|Disable] Capacitive Detection capacitive-detect enable system power-limit Set Poe system Power switch(poe)# system power-limit [Value] Limit Value[0~96] port 1 state disable Set PoE port State switch(poe)# port 1 state disable port [PortNumbers] stace [Enable|Disable] port 1 plfc enable Set PoE port Power...

  • Page 53: Systemlog, Smtp And Event Commands Set

    SystemLog, SMTP and Event Commands Set Netstar Commands Level Description Example systemlog ip Set System log server switch(config)# systemlog ip [IP address] IP address. 192.168.1.100 systemlog mode Specified the log mode switch(config)# systemlog mode [client|server|both] both show systemlog Displays system log. Switch>show systemlog show systemlog Show system log client...
  • Page 54 event device-cold-start Set cold start event switch(config)#event [Systemlog|SMTP|Both] type device-cold-start both event Set Authentication switch(config)#event authentication-failure failure event type authentication-failure both [Systemlog|SMTP|Both] event Set X-ring topology switch(config)#event ring-topology-change changed event type ring-topology-change both [Systemlog|SMTP|Both] event systemlog Set port event for switch(config)#interface [Link-UP|Link-Down|Bot system log...

  • Page 55: Sntp Commands Set

    no event smpt Disable port event for switch(config)#interface SMTP fastethernet 3 switch(config-if)#no event smtp SNTP Commands Set Netstar Commands Level Description Example sntp enable Enable SNTP function switch(config)#sntp enable sntp daylight Enable daylight saving switch(config)#sntp daylight time, if SNTP function is inactive, this command can’t be applied.

  • Page 56: X-Ring Commands Set

    sntp timezone Set timezone index, switch(config)#sntp timezone 22 [Timezone] use ‘show sntp timzezone’ command to get more information of index number show sntp Show SNTP switch#show sntp information show sntp timezone Show index number of switch#show sntp timezone time zone list no sntp Disable SNTP function switch(config)#no sntp no sntp daylight...
  • Page 57 show ring Show the information switch#show ring of X-Ring no ring Disable X-ring switch(config)#no ring no ring master Disable ring master switch(config)# no ring master no ring couplering Disable couple ring switch(config)# no ring couplering no ring dualhoming Disable dual homing switch(config)# no ring dualhoming...

  • Page 58: Web-Based Management

    Web-Based Management This section introduces the configuration and functions of the Web-Based management function. About Web-based Management There is an embedded HTML web site residing in the flash memory on the CPU board of the switch, which offers advanced management features and allows users to manage the switch from anywhere on the network through a standard browser such as Microsoft Internet Explorer.

  • Page 59: System Login

    Press Enter or click the OK button, and then the home screen of the Web-based management appears. Note: The web interface features shown below are introduced by the screen displays of the CWGE2FE8MSPOE switch. Unless specifically identified, all of the screen displays are suitable for the switches involved in this manual.

  • Page 60: System Information

    System Information User can assign the system name, description, location and contact personnel to identify the switch. The version table below is a read-only field to show the basic information of the switch.  System Name: Assign the system name of the switch (The maximum length is 80 bytes) ...

  • Page 61: Ip Configuration

    IP Configuration The switch is a network device that needs to be assigned an IP address to be identified on the network. Users have to decide a means of assigning an IP address to the switch.  DHCP Client: Enable or disable the DHCP client function. When DHCP client function is enabled, the switch will be assigned an IP address from the network DHCP server.

  • Page 62: Dhcp Configuration

    IP Configuration interface DHCP Configuration DHCP is the abbreviation of Dynamic Host Configuration Protocol that is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device's IP address can even change while it is still connected.

  • Page 63: Dhcp Server Configuration

    DHCP Server Configuration The system provides the DHCP server function. By enabling the DHCP server function, the switch system will be a DHCP server.  DHCP Server: Enable or Disable the DHCP Server function. Enable:—the switch will be the DHCP server on your local network ...

  • Page 64: Dhcp Client Entries

    DHCP Client Entries When the DHCP server function is enabled, the system will collect the DHCP client information including the assigned IP address, the MAC address of the client device, the IP assigning type, status and lease time. DHCP Client Entries interface...

  • Page 65: Port And Ip Binding

    Port and IP Binding Assign the dynamic IP address bound with the port to the connected client. The user is allowed to fill each port column with one particular IP address. When the device is connecting to the port and asks for an IP assignment, the system will assign the IP address bound with the port.

  • Page 66: Tftp - Update Firmware

    TFTP - Update Firmware It provides the functions allowing the user to update the switch firmware via the Trivial File Transfer Protocol (TFTP) server. Before updating, make sure the TFTP server is ready and the firmware image is located on the TFTP server. ...

  • Page 67: Tftp - Restore Configuration

    TFTP - Restore Configuration You can restore a previous backup configuration from the TFTP server to recover the settings. Before doing that, you must locate the image file on the TFTP server first and the switch will download back the flash image. ...

  • Page 68: Tftp - Backup Configuration

    TFTP - Backup Configuration You can back up the current configuration from flash ROM to the TFTP server for the purpose of recovering the configuration later. It helps you to avoid wasting time on configuring the settings by backing up the configuration. ...

  • Page 69: System Event Log Configuration

    System Event Log Configuration This page allows the user to decide whether to send the system event log, and select the mode which the system event log will be sent to client only, server only, or both client and server. What kind of event log will be issued to the client/server depends on the selection on the Event Configuration tab.
  • Page 70 Syslog Configuration interface...

  • Page 71: System Event Log-Smtp Configuration

    System Event Log—SMTP Configuration Simple Mail Transfer Protocol (SMTP) is the standard for email transmissions across the network. You can configure the SMTP server IP, sender, mail account, password, and the recipient email addresses that the e-mail alert will be sent to. There are also four types of events—Device Cold Start, Authentication Failure, X-Ring Topology Change, and Port Event—available to be issued as the e-mail alert.
  • Page 72 SMTP Configuration interface...

  • Page 73: System Event Log-Event Configuration

    System Event Log—Event Configuration Having ticked the Syslog/SMTP checkboxes, the event log/email alert will be sent to the system log server and the SMTP server respectively. Also, Port event log/alert (link up, link down, and both) can be sent to the system log server/SMTP server respectively by setting the trigger condition.
  • Page 74 Event Configuration interface...

  • Page 75: Sntp Configuration

    SNTP Configuration SNTP (Simple Network Time Protocol) is a simplified version of NTP that is an Internet protocol used to synchronize the clocks of computers to a time reference. Because time usually just advances, the time on different node stations will be different. With the communicating programs running on those devices, it would cause time to jump forward and back, a non-desirable effect.
  • Page 76 AST - Atlantic Standard -4 hours
 8 am
 EDT - Eastern Daylight
 EST - Eastern Standard -5 hours
 7 am
 CDT - Central Daylight
 CST - Central Standard -6 hours
 6 am
 MDT - Mountain Daylight
 MST - Mountain Standard -7 hours
...
  • Page 77  SNTP Sever URL: Set the SNTP server IP address. You can assign a local network time server IP address or an internet time server IP address.  Switch Timer: When the switch has successfully connected to the SNTP server whose IP address was assigned in the column field of SNTP Server URL, the current coordinated time is displayed here.

  • Page 78: Ip Security

    IP Security IP security function allows the user to assign 10 specific IP addresses that have permission to manage the switch through the http and telnet services for the securing switch management. The purpose of giving the limited IP addresses permission is to allow only the authorized personnel/device can do the management task on the switch.
  • Page 79 IP Security interface...

  • Page 80: User Authentication

    User Authentication Change web management login user name and password for the management security issue.  User name: Type in the new user name (The default is ‘root’)  Password: Type in the new password (The default is ‘root’)  Confirm password: Re-type the new password ...

  • Page 81: Port Statistics

    Port Statistics The following chart provides the current statistic information that displays the real-time packet transfer status for each port. The user might use the information to plan and implement the network, or check and find the problem when the collision or heavy traffic occurs.
  • Page 82 Port Statistics interface...

  • Page 83: Port Control

    Port Control In Port control you can configure the settings of each port to control the connection parameters, and the status of each port is listed beneath.  Port: Use the scroll bar and click on the port number to choose the port to be configured.
  • Page 84 Port Control interface...

  • Page 85: Port Trunk

    Port Trunk Port trunking is the combination of several ports or network cables to expand the connection speed beyond the limits of any one single port or network cable. Link Aggregation Control Protocol (LACP), that is a protocol running on layer 2, provides a standardized means in accordance with IEEE 802.3ad to bundle several physical ports together to form a single logical channel.
  • Page 86 be aggregated in a trunk group. Click and the ports focused in the right side will be shifted to the left side. To remove unwanted ports, select the ports and click  When LACP enabled, you can configure LACP Active/Passive status for each port on the State Activity tab.

  • Page 87: Port Trunk-Aggregator Information

    Port Trunk—Aggregator Information  LACP disabled Having set up the aggregator setting with LACP disabled, you will see the local static trunk group information on the tab of Aggregator Information. Assigning 2 ports to a trunk group with LACP disabled...
  • Page 88 Static Trunking Group information  Group Key: This is a read-only column field that displays the trunk group ID.  Port Member: This is a read-only column field that displays the members of this static trunk group.
  • Page 89  LACP enabled Having set up the aggregator setting with LACP enabled, you will see the trunking group information between two switches on the tab of Aggregator Information.  Switch 1 configuration Set System Priority of the trunk group. The default is 1. Select a trunk group ID by pull down the drop-down menu bar.
  • Page 90 Aggregation Information of Switch 1 Click on the tab of Aggregator Information to check the trunked group information as the illustration shown above after the two switches configured.
  • Page 91  Switch 2 configuration Switch 2 configuration interface Set System Priority of the trunk group. The default is 1. Select a trunk group ID by pull down the drop-down menu bar. Enable LACP. Include the member ports by clicking the Add button after selecting the port number and the column field of Work Ports changes automatically.
  • Page 92 Aggregation Information of Switch 2 Click on the tab of Aggregator Information to check the trunked group information as the illustration shown above after the two switches configured.

  • Page 93: Port Trunk-State Activity

    Port Trunk—State Activity Having set up the LACP aggregator on the tab of Aggregator Setting, you can configure the state activity for the members of the LACP trunk group. You can select or cancel the checkbox beside the state label. When you remove the select mark of the port and click , the port state activity will change to Passive.
  • Page 94 State Activity of Switch 2...

  • Page 95: Port Mirroring

    Port Mirroring The Port mirroring is a method for monitoring traffic in switched networks. Traffic through ports can be monitored by one specific port, that means traffic goes in or out monitored (source) ports will be duplicated into mirror (destination) port. ...

  • Page 96: Rate Limiting

    Rate Limiting You can set up every port’s bandwidth rate and frame limitation type. Ingress Limit Frame type: select the frame type that wants to filter. There are four  frame types for selecting:   Broadcast/Multicast/Flooded Unicast Broadcast/Multicast  ...

  • Page 97: Vlan Configuration

    1 is 10Mbps, users can set it’s effective egress rate is 1Mbps, ingress rate is 500Kbps. The switch performs the ingress rate by packet counter to meet the specified rate  Ingress: Enter the port effective ingress rate (The default value is “0”). ...

  • Page 98: Vlan Configuration-Port-Based Vlan

    VLAN configuration—Port-based VLAN A port-based VLAN basically consists of its members—ports, that means the VLAN is created by grouping the selected ports. This method provides the convenience for users to configure a simple VLAN easily without complicated steps. Packets can only go among members of the same VLAN group.
  • Page 99  Pull down the selection item and focus on Port Based then press to set the VLAN Operation Mode in Port Based mode.  Click to add a new VLAN group (The maximum VLAN groups are up to 64). VLAN—Port Based Add interface ...
  • Page 100  And then, click to have the configuration take effect. You will see the VLAN list displays.  VLAN—Port Based Edit/Delete interface  to delete the VLAN.  to modify group name, VLAN ID, or add/remove the members of the existing VLAN group.

  • Page 101: 802.1Q Vlan

    802.1Q VLAN Virtual Local Area Network (VLAN) can be implemented on the switch to logically create different broadcast domains. When the 802.1Q VLAN function is enabled, all ports on the switch belong to default VLAN of VID 1, which means they are logically regarded as members of the same broadcast domain.

  • Page 102: 802.1Q Configuration

    802.1Q Configuration  Pull down the selection item and focus on 802.1Q then press to set the VLAN Operation Mode in 802.1Q mode.  Enable GVRP Protocol: GVRP (GARP VLAN Registration Protocol) is a protocol that facilitates control of virtual local area networks (VLANs) within a larger network. GVRP conforms to the IEEE 802.1Q specification, which defines a method of tagging frames with VLAN configuration data.
  • Page 103  Trunk Link: A segment that provides the link path for one or more VLAN-aware devices (switches). A Trunk Port, connected to the trunk link, has an understanding of tagged frame, which is used for the communication among VLANs across switches. Which frames of the specified VIDs will be forwarded depends on the values filled in the Tagged VID column field.

  • Page 104: Group Configuration

    802.1Q VLAN interface Group Configuration Edit the existing VLAN Group.  Select the VLAN group in the table list.  Click...
  • Page 105 Group Configuration interface  You can modify the VLAN group name and VLAN ID.

  • Page 106: Rapid Spanning Tree

    Group Configuration interface  Click Rapid Spanning Tree The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for faster spanning tree convergence after a topology change. The system also supports STP and the system will auto-detect the connected device that is running STP or RSTP protocol.
  • Page 107  Priority (0-61440): The switch with the lowest value has the highest priority and is selected as the root. If the value is changed, the user must reboot the switch. The value must be a multiple of 4094 according to the protocol standard rule. ...
  • Page 108 RSTP System Configuration interface...

  • Page 109: Rstp-Port Configuration

    RSTP—Port Configuration This web page provides the port configuration interface for RSTP. You can assign a higher or lower priority to each port. Rapid spanning tree will have the port with the higher priority in forwarding state and block other ports to make certain that there is no loop in the LAN.
  • Page 110 RSTP Port Configuration interface...

  • Page 111: Snmp Configuration

    SNMP Configuration Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth. Network management systems learn of problems by receiving traps or change notices from network devices implementing SNMP.
  • Page 112 SNMP System Configuration interface...

  • Page 113: Trap Configuration

    Trap Configuration A trap manager is a management station that receives the trap messages generated by the switch. If no trap manager is defined, no traps will be issued. To define a management station as a trap manager, assign an IP address, enter the SNMP community strings, and select the SNMP trap version.

  • Page 114: Snmpv3 Configuration

    SNMPv3 Configuration Configure the SNMP v3 function. Context Table Configure SNMP v3 context table. Assign the context name of context table. Click to add context name. User Profile Configure SNMP v3 user table..  User ID: Set up the user name. ...
  • Page 115 SNMP v3 configuration interface Access Table Configure SNMP v3 access table.  Context Prefix: Set up the context name.  Group Name: Set up the group.  Security Level: Set up the access level.
  • Page 116  Context Match Rule: Select the context match rule.  Read View Name: Set up the read view. Write View Name: Set up the write view.   Notify View Name: Set up the notify view.  Click to add context name. ...

  • Page 117: Qos Configuration

    QoS Configuration Quality of Service (QoS) is the ability to provide different priority to different applications, users or data flows, or to guarantee a certain level of performance to a data flow. QoS guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications such as voice over IP or Video Teleconferencing, since these often require fixed bit rate and are delay sensitive, and in networks where the capacity is a limited resource, for example in cellular data communication.
  • Page 118 QoS Configuration interface...

  • Page 119: Port-Based Priority

    Port-Based Priority Configure per port priority level. Port: Each port has 4 priority levels – High, Middle, Low, and Lowest.  Click  COS Configuration Set up the COS priority level.  COS priority: Set up the COS priority level 0~7 –High, Middle, Low, Lowest. ...

  • Page 120: Igmp Configuration

    IGMP Configuration The Internet Group Management Protocol (IGMP) is an internal protocol of the Internet Protocol (IP) suite. IP manages multicast traffic by using switches, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch.

  • Page 121: X-Ring

    IGMP Configuration interface X-Ring X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms not the same. In the X-Ring topology, every switch should enable X-Ring function and assign two member ports in the ring.
  • Page 122 The system also supports the coupling ring that can connect 2 or more X-Ring group for the redundant backup function and dual homing function that prevent connection lose between X-Ring group and upper level/core switch.  Enable X-Ring: Enable the X-Ring function. Mark the check box to enable the X-Ring function.
  • Page 123 X-ring Interface Note When the X-Ring function enable, user must disable the RSTP. The X-Ring function and RSTP function cannot exist in a switch at the same time. Remember to execute the ‘Save Configuration’ action, otherwise the new configuration will lose when switch power off.

  • Page 124: Lldp

    LLDP Link Layer Discovery Protocol (LLDP) is defined in the IEEE 802.1AB, it is an emerging standard which provides a solution for the configuration issues caused by expanding LANs. LLDP specifically defines a standard method for Ethernet network devices such as switches, routers and wireless LAN access points to advertise information about themselves to other nodes on the network and store the information they discover.

  • Page 125: Multicast Filtering

    Multicast Filtering Multicasts are similar to broadcasts, they are sent to all end stations on a LAN or VLAN. End units can receive the multicast traffic if the connected ports have been included in the specific multicast groups. With multicast filtering, network devices only forward multicast traffic to the ports that are connected to the registered end units.

  • Page 126: Security-802.1X/Radius Configuration

    Security—802.1X/Radius Configuration 802.1x is an IEEE authentication specification which prevents the client from accessing a wireless access point or wired switch until it provides authority, like the user name and password that are verified by an authentication server (such as RADIUS server). System Configuration After enabling the IEEE 802.1X function, you can configure the parameters of this function.
  • Page 127 802.1x System Configuration interface...

  • Page 128: 802.1X Port Configuration

    802.1x Port Configuration You can configure 802.1x authentication state for each port. The State provides Disable, Accept, Reject and Authorize.  Reject: The specified port is required to be held in the unauthorized state.  Accept: The specified port is required to be held in the authorized state. ...

  • Page 129: Misc Configuration

    802.1x Per Port Setting interface Misc Configuration  Quiet Period: Set the period that the port does not try to acquire a supplicant.  TX Period: Set the period the port waits for retransmit next EAPOL PDU during an authentication session. ...
  • Page 130 authentication fails and the authentication session ends. Reauth period: Set the period of time that clients connected must be re-authenticated.   Click 802.1x Misc Configuration interface...

  • Page 131: Mac Address Table

    MAC Address Table Use the MAC address table to ensure the port security. Static MAC Address You can add a static MAC address; it remains in the switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again.

  • Page 132: Mac Filtering

    Static MAC Addresses interface MAC Filtering By filtering MAC address, the switch can easily filter pre-configured MAC address and reduce the un-safety. You can add and delete filtering MAC address.

  • Page 133: All Mac Addresses

    MAC Filtering interface MAC Address: Enter the MAC address that you want to filter. Click If you want to delete the MAC address from filtering table, select the MAC address and click All MAC Addresses You can view the port information of the connected device’s MAC address and related devices’...
  • Page 134 All MAC Address interface...

  • Page 135: Power Over Ethernet

    Power over Ethernet This segment shows the Power over Ethernet function. PoE Status  Maximum Power Available: Displays the maximum power supply in Watts.  Actual Power Consumption: This column shows the real-time total power consumption.  System Power Limit: User can modify the value to this column field to limit the total output power for the system.
  • Page 136  AC Disconnect: Tick this checkbox to monitor the AC impedance on the port terminals and removes power when the impedance rises above a certain value, for a certain period (for details, see the IEEE 802.3af specification).  Capacitive Detection: If the port and capacitive detection are enabled, the capacitances state reads in the voltage result from the constant current.

  • Page 137: Factory Default

    Factory Default Reset switch to default configuration. Click to reset all configurations to the default value. Factory Default interface Save Configuration Save all configurations that you have made in the system. To ensure the all configuration swill be saved. Click to save the all configurations to the flash memory.

  • Page 138: System Reboot

    System Reboot Reboot the switch in software reset. Click to reboot the system. System Reboot interface...

  • Page 139: Problem Solving

    Problem Solving This section is intended to help solve the most common problems on the PoE Managed Switch. Incorrect connections The switch port can automatically detect straight or crossover cable when you link switch with other Ethernet device. For the RJ-45 connector should use correct UTP or STP cable, 10/100Mbps port use 2-pairs twisted cable and Gigabit 1000T port use 4 pairs twisted cable.

  • Page 140: Improper Network Topologies

     Improper Network Topologies It is important to make sure that you have a valid network topology. Common topology faults include excessive cable length and too many repeaters (hubs) between end nodes. In addition, you should make sure that your network topology contains no data path loops. Between any two end nodes, there should be only one active cabling path at any time.

  • Page 141: Console Port Pin Assignments

    Appendix Console Port Pin Assignments The DB-9 serial port on the switch is used to connect to the switch for out-of-band console configuration. The console—command line interface can be accessed from a terminal or a PC running a terminal emulation program. The pin assignments used to connect to the serial port are provided in the following tables.
  • Page 142  Console Port to 9-Pin DTE Port on PC Switch’s 9-Pin Serial CCITT Signal PC’s DTE Port Port 9-Pin 2 RXD ---------RXD ------------ 3 TxD 3 TXD 2 RxD -----------TXD --------- 5 SGND -----------SGND ---------- 5 SGND...
