INSTALLATION AND OPERATION MANUAL

Hardware Overview

Front Panel

Port
SFP Ports
Bypass Ports
Copper Ports
Console
1. Fiber bypass ports
2. Power LED
3. Power 1 LED
4. Power 2 LED
5. Ring master LED
6. Ring status LED
7. Fault indicator
8. Console port
9. 100/1000 Base-X fiber port
10. LNK/ACT LED for fiber port
11. 10/100/1000 Base-T(X) LAN port
12. LNK/ACT LED for LAN port
13. Full duplex LED for LAN port
TECH SUPPORT: 1.888.678.9427
Description
8 × 100/1000BASE-X on SFP port
100 Mbps / 1Gbps / 10 Gbps optical bypass function on two
(duplex) or four (simplex) ports
16 × 10/100/1000BASE-T(X)
Use RS-232 with RJ-45 connector to manage switch.
1

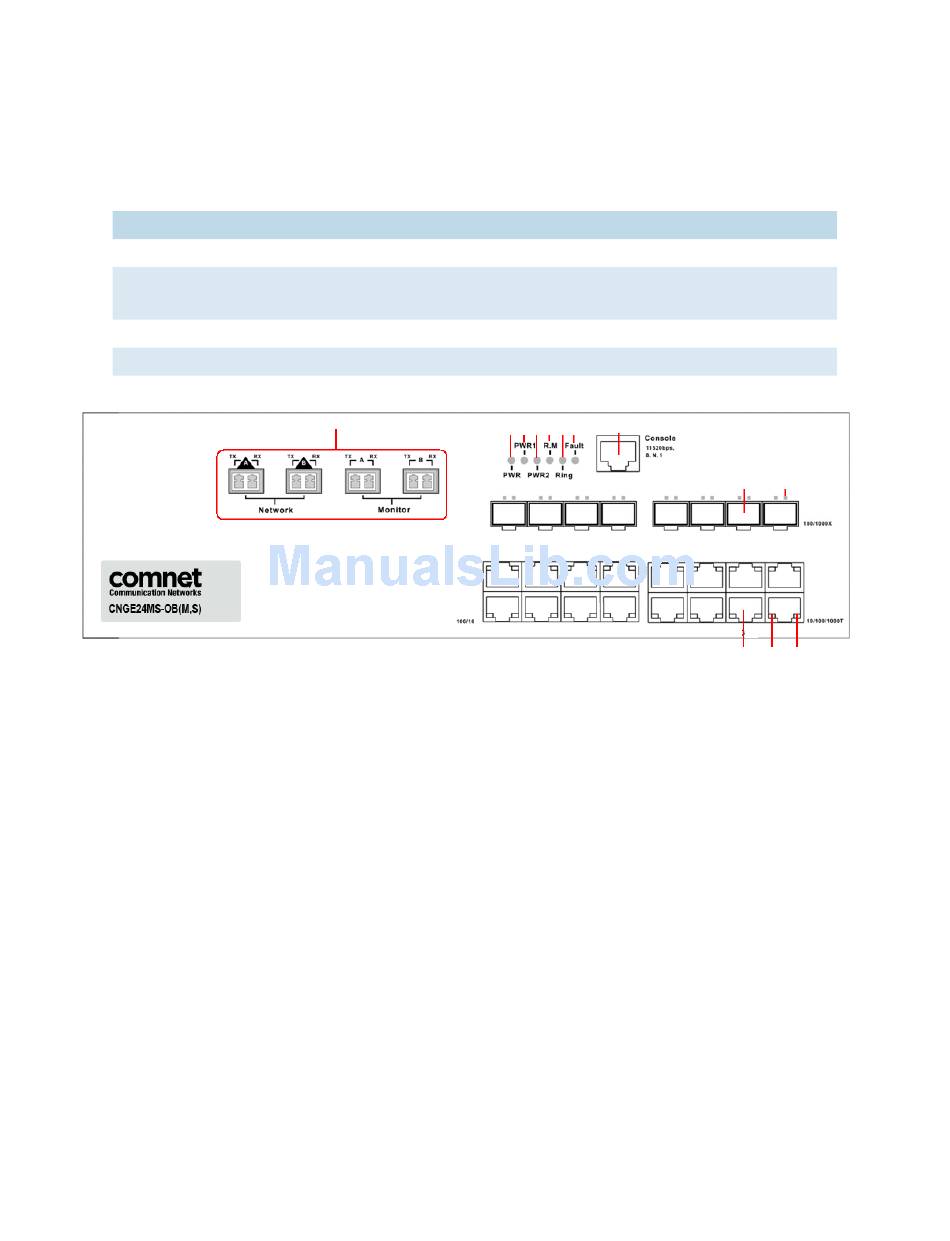

CNGE24MS-OB(M,S) Front Panel
2 3 4 5 6 7 8
CNGE24MS-OB(M,S)
9 10
11 12 13
INS_CNGE24MS-OB(M,S)_REV–
09/12/12 PAGE 6
