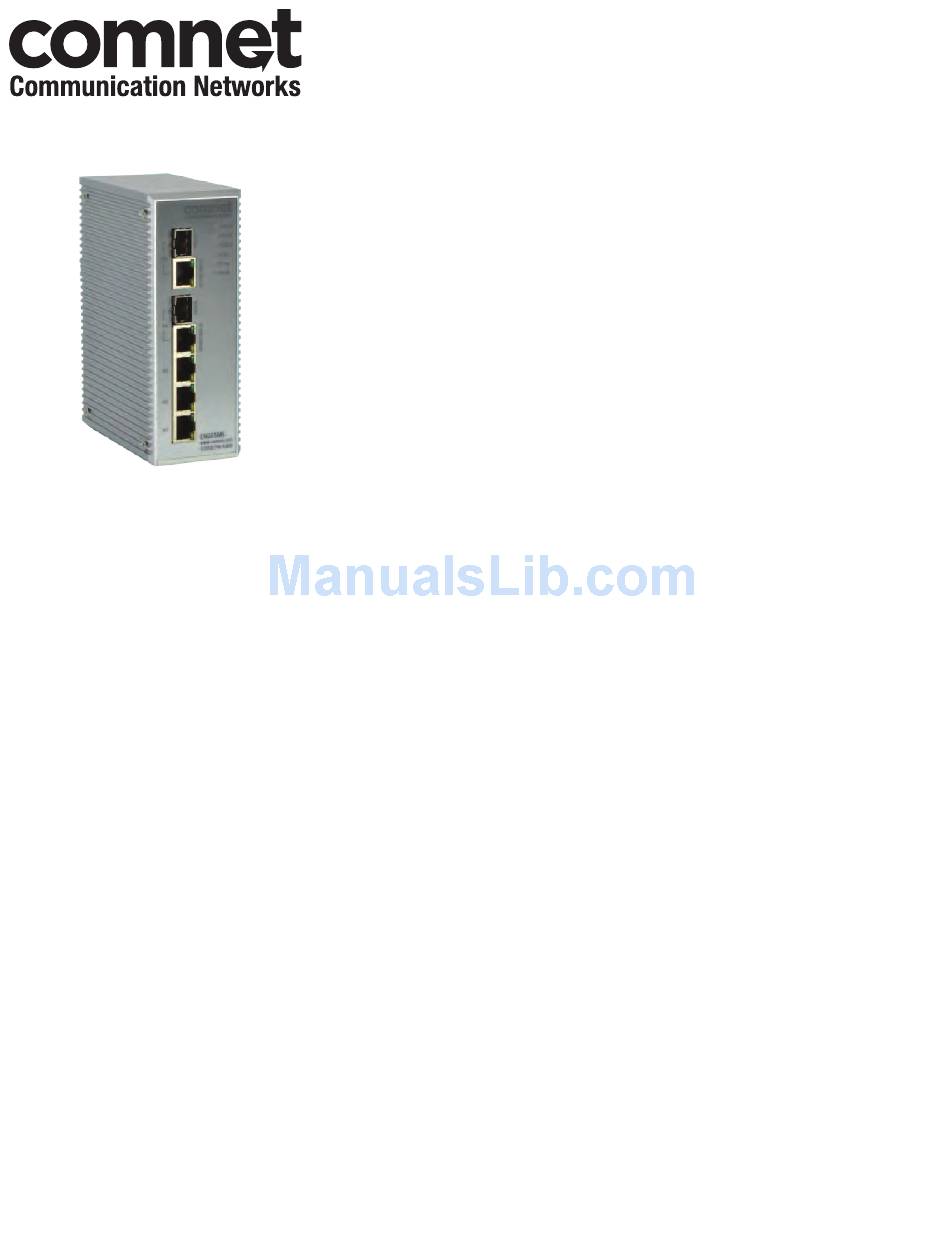

INSTALLATION AND OPERATION MANUAL
CNGE5MS
EnvironmEntally HardEnEd managEd EtHErnEt SwitcH
witH (3) 10/100/1000BaSE-tX & (2) 10/100/1000BaSE-tX/FX

comBo PortS

v1.4 February 21, 2013

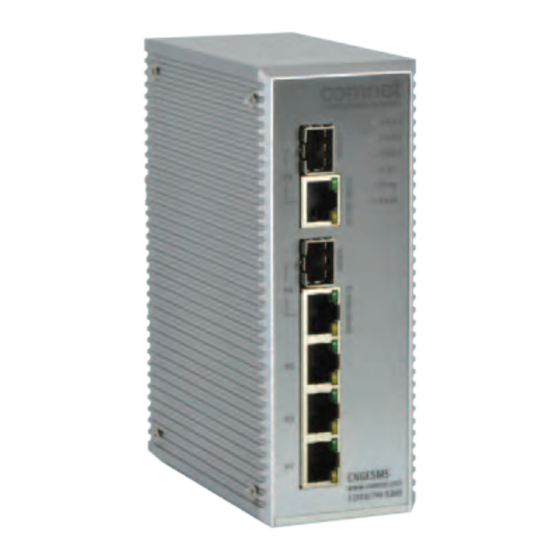

The ComNet
CNGE5MS is a hardened, industrial five port all gigabit managed
™
Ethernet switch. It has three 10/100/1000Base-TX and two Gigabit combo ports
that utilize ComNet Small Form Factor (SFP) pluggable modules for the selection of
fiber and connector type and distance. The IEEE 802.3 compliant unit is a redundant
switch offering multiple Ethernet redundancy protocols, C-Ring, ComRing, C-RSTP
and MSTP/RSTP/STP. This redundancy feature protects your applications from network
interruptions or temporary malfunctions by redirecting transmission within the
network. The CNGE5MS offers centralized and convenient management through a
windows-based utility called eConsole. Redundant DC power inputs provide non-stop
operation in case of power supply disruption. The backup power input will take over
immediately when the primary DC power input fails. The unit provides relay outputs
that can be set up to indicate events and notify in case of potential problems.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CNGE5MS and is the answer not in the manual?

Questions and answers

Related Manuals for Comnet CNGE5MS

Summary of Contents for Comnet CNGE5MS

  • Page 1: Combo Ports

    ™ Ethernet switch. It has three 10/100/1000Base-TX and two Gigabit combo ports that utilize ComNet Small Form Factor (SFP) pluggable modules for the selection of fiber and connector type and distance. The IEEE 802.3 compliant unit is a redundant switch offering multiple Ethernet redundancy protocols, C-Ring, ComRing, C-RSTP and MSTP/RSTP/STP.

  • Page 2: Table Of Contents

    INSTALLATION AND OPERATION MANUAL CNGE5MS Contents Regulatory Compliance Statement Warranty Disclaimer Safety Indications Overview Introduction Software Features Hardware Features Installing Switch on DIN-Rail Wall Mounting Installation Hardware Overview Front Panel Front Panel LEDs Bottom Panel Cables Ethernet Cables 10/100/1000BASE-T(X) Pin Assignments...
  • Page 3 INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—IGMP command set Commands Set List—MAC/Filter Table command set Commands Set List—SNMP command set Commands Set List—Port Mirroring command set Commands Set List—802.1x command set Commands Set List—TFTP command set Commands Set List—SYSLOG, SMTP, EVENT command set 92 Commands Set List—SNTP command set...

  • Page 4: Regulatory Compliance Statement

    ComNet warrants that all ComNet products are free from defects in material and workmanship for a specified warranty period from the invoice date for the life of the installation. ComNet will repair or replace products found by ComNet to be defective within this warranty period, with shipment expenses apportioned by ComNet and the distributor.

  • Page 5: Overview

    Overview Introduction The CNGE5MS is a powerful, managed, hardened Ethernet switch that contains many features. The switch will work under a wide variety of temperature, dirty and humid conditions. It can be managed through WEB, TELNET, Consol or other third-party SNMP software. The CNGE5MS also can be managed by a utility called eConsole.

  • Page 6: Software Features

    INSTALLATION AND OPERATION MANUAL CNGE5MS Software Features » Fast Redundant Ethernet Ring : C-Ring Technology (Recovery time < 20ms over 250 units connection) » Supports Ring Coupling, Dual Homing over C-Ring » Supports SNMPv1/v2c/v3 & RMON & Port base/802.1Q VLAN Network Management »...

  • Page 7: Hardware Features

    INSTALLATION AND OPERATION MANUAL CNGE5MS Hardware Features » 3 × Redundant DC power inputs » Operating Temperature: -40 – 75ºC » Storage Temperature: -40 – 85ºC » Operating Humidity: 5% – 95%, non-condensing » Casing: IP-30 » 3 × 10/100/1000Base-T(X) Gigabit Ethernet port »...

  • Page 8: Installing Switch On Din-Rail

    INSTALLATION AND OPERATION MANUAL CNGE5MS Installing Switch on DIN-Rail The rear panel components of CNGE5MS shown below: Screw holes for wall mount kit. Din-Rail kit inS_cngE5mS_rEv– Tech SupporT: 1.888.678.9427 02/19/13 PagE 8...
  • Page 9 INSTALLATION AND OPERATION MANUAL CNGE5MS Each switch has a DIN-Rail kit on the rear panel. The DIN-Rail kit affixes the switch to the DIN-Rail. It is easy to install the switch on the Din-Rail: Mount Series on DIN-Rail Step 1: Tilt the switch and mount the metal spring to DIN-Rail.

  • Page 10: Wall Mounting Installation

    Each switch has another installation method for users to install the switch. A wall mount kit can be found in the package. The following steps show how to mount the switch on the wall: Mounting the CNGE5MS on a Wall Step 1: Remove DIN-Rail kit if it is attached to the switch.

  • Page 11: Hardware Overview

    INSTALLATION AND OPERATION MANUAL CNGE5MS Hardware Overview Front Panel The following table describes the LEDs and ports that are on the front of the CNGE5MS. Port Description 10/100/1000Base-T(X) 3 × 10/100/1000Base-T(X) RJ-45 fast Ethernet ports support RJ-45 fast Ethernet auto-negotiation.
  • Page 12 INSTALLATION AND OPERATION MANUAL CNGE5MS CNGE5MS Front Panel Model name LED for PWR1. When the PWR1 UP, the green LED will be light on LED for PWR2. When the PWR2 UP, the green LED will be light on. LED for PWR3. When the PWR3 UP, the green LED will be light on.

  • Page 13: Front Panel Leds

    INSTALLATION AND OPERATION MANUAL CNGE5MS Front Panel LEDs LED indicators Color Status Description PWR1 Green DC power module 1 activated PWR2 Green DC power module 2 activated PWR3 Green DC Power module 3 activated Green Ring Master. Ring Green Ring enabled.

  • Page 14: Bottom Panel

    INSTALLATION AND OPERATION MANUAL CNGE5MS Bottom Panel The bottom panel of CNGE5MS is displayed as below: CNGE5MS Rear Panel Terminal block includes: PWR1, PWR2 (12-48V DC) and Relay output (1A@24VDC). Power jack for PWR3 (12-45VDC). Console port (RJ-45). inS_cngE5mS_rEv– Tech SupporT: 1.888.678.9427...

  • Page 15: Cables

    Cables Ethernet Cables The CNGE5MS switches have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5, & 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.
  • Page 16 Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. The CNGE5MS switches support auto MDI/MDI-X operation. You can use a straight-through cable to connect PC to switch. The following table below shows the 10/100BASE-T(X) MDI and MDI-X...

  • Page 17: Sfp

    Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. The Switch has fiber optic ports that utilize SFP connectors. ComNet offers a wide selection of SFP modules that offer different fiber type, connector type and distances. Please remember that the TX port of Switch A should be connected to the RX port of Switch B.

  • Page 18: Console Cable

    INSTALLATION AND OPERATION MANUAL CNGE5MS Console Cable Each CNGE5MS switch can be managed by its console port. You can connect them to PC via an RJ-45 cable with DB-9 female connector. DB-9 to RJ-45 Cable PC pin out RS-232 with...
  • Page 19 INSTALLATION AND OPERATION MANUAL CNGE5MS DB-9 Male DB-9 Female Male Connector Female Connector Received Line Signal Detect (Received by DTE Received Line Signal Detect (Transmitted Device) from DCE Device) Received Data (Received by DTE Device) Transmitted Data (Transmitted from DCE...

  • Page 20: Web Management

    INSTALLATION AND OPERATION MANUAL CNGE5MS WEB Management Attention: While installing and upgrading firmware, please remove physical loop connection first. DO NOT power off equipment while the firmware is upgrading! Configuration by Web Browser This section provides instruction on configuration through the Web browser.
  • Page 21 INSTALLATION AND OPERATION MANUAL CNGE5MS System Login 1. Launch your Web Browser. 2. Type http:// and the IP address of the switch. Press Enter. 3. The login screen appears. 4. Enter username and password. The default username and password is admin.
  • Page 22 INSTALLATION AND OPERATION MANUAL CNGE5MS Main Interface Main interface Basic Setting System Information The switch system information is provided here. System Information interface inS_cngE5mS_rEv– Tech SupporT: 1.888.678.9427 02/19/13 PagE 22...
  • Page 23 INSTALLATION AND OPERATION MANUAL CNGE5MS Label Description System Name Assign the name of switch. The maximum length is 64 bytes System Display the description of switch. Description System Location Assign the switch physical location. The maximum length is 64 bytes...
  • Page 24 INSTALLATION AND OPERATION MANUAL CNGE5MS IP Setting Configure the switch-managed IP information on this page. Label Description DHCP Client To enable or disable the DHCP client function. When DHCP client function is enabled, the switch will be assigned the IP address from the network DHCP server.
  • Page 25 INSTALLATION AND OPERATION MANUAL CNGE5MS SNTP The SNTP (Simple Network Time Protocol) settings allow you to synchronize switch clocks with the Internet. SNTP Configuration interface The following table describes the labels in this screen. Label Description SNTP Client Enable or disable SNTP function to get the time from the SNTP server.
  • Page 26 INSTALLATION AND OPERATION MANUAL CNGE5MS Local Time Zone Conversion from UTC Time at 12:00 UTC November Time Zone - 1 hour 11 am Oscar Time Zone -2 hours 10 am ADT - Atlantic Daylight -3 hours 9 am AST - Atlantic Standard...
  • Page 27 INSTALLATION AND OPERATION MANUAL CNGE5MS PTP Client The Precision Time Protocol (PTP) is a time-transfer protocol defined in the IEEE 1588-2002 standard that allows precise synchronization of networks (e.g., Ethernet). Accuracy within the nanosecond range can be achieved with this protocol when using hardware generated timestamps.
  • Page 28 INSTALLATION AND OPERATION MANUAL CNGE5MS Auto Provision Auto Provision allows you to update the switch firmware automatically. You can put firmware or configuration files on the TFTP server. When you reboot the switch, it will upgrade automatically. Before updating, make sure you have your TFTP server ready and the firmware image and configuration file is on the TFTP server.
  • Page 29 INSTALLATION AND OPERATION MANUAL CNGE5MS Backup & Restore You can save current configuration from the switch to a TFTP server, or restore the configuration from TFTP server in this page. Backup & Restore interface The following table describes the labels in this screen.
  • Page 30 INSTALLATION AND OPERATION MANUAL CNGE5MS Upgrade Firmware Upgrade Firmware allows you to update the firmware of the switch. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server. Update Firmware interface inS_cngE5mS_rEv–...
  • Page 31 INSTALLATION AND OPERATION MANUAL CNGE5MS DHCP Server Setting The system provides DHCP server function. Enable the DHCP server function to use the switch as a DHCP server. DHCP Server Configuration interface The following table describes the labels in this screen.
  • Page 32 INSTALLATION AND OPERATION MANUAL CNGE5MS DHCP Server – Client Entries When the DHCP server function is activated, the system will collect the DHCP client information and display in here. DHCP Server Client Entries interface DHCP Server – Port and IP bindings You can assign the specific IP address that is in the assigned dynamic IP range to the specific port.
  • Page 33 INSTALLATION AND OPERATION MANUAL CNGE5MS Port Configuration Port Control Here you can set the state, speed/duplex, flow control, and security of the port. Port Control interface The following table describes the labels in this screen. Label Description Port NO. Port number for setting.
  • Page 34 INSTALLATION AND OPERATION MANUAL CNGE5MS Port Status The following information provides the current port status information Port Status interface Rate Limit With this function, you can limit traffic of all ports, including broadcast, multicast and flooded unicast. You can also set “Ingress” or “Egress” to limit traffic received or transmitted bandwidth.
  • Page 35 INSTALLATION AND OPERATION MANUAL CNGE5MS Port Trunk Port Trunk – Setting You can select a static trunk or 802.3ad LACP to combine several physical links with a logical link to increase the bandwidth. Port Trunk - Setting interface The following table describes the labels in this screen.
  • Page 36 INSTALLATION AND OPERATION MANUAL CNGE5MS Redundancy C-Ring C-Ring technology is a powerful redundant Ring system. The recovery time of the Ring is less than 20 milliseconds. It can reduce unexpected damage caused by a network topology change. C-Ring Supports 3 Ring topologies: C-Ring, Coupling Ring and Dual Homing.
  • Page 37 INSTALLATION AND OPERATION MANUAL CNGE5MS Label Description C-Ring Mark to enable C-Ring. Ring Master There should be one and only one Ring Master in a C-Ring. However if there are two or more switches which set Ring Master to enable, the switch with the lowest MAC address will be the actual Ring Master and others will be Backup Masters.
  • Page 38 INSTALLATION AND OPERATION MANUAL CNGE5MS Legacy Ring Legacy ring provides support for the switch to be used in an existing ring of ComNet X-Ring enabled switches. X-Ring provides a faster redundant recovery than Spanning Tree topology. The action is similar to STP or RSTP, but the algorithms between them are not the same.
  • Page 39 INSTALLATION AND OPERATION MANUAL CNGE5MS COM-Ring You can add ComNet switches into a network constructed by another ring technology and enable COM-Ring to cooperate with another vendor’s managed switch. ComRing interface Label Description Enable Enable the COM-Ring function Vendor Select the vendor whose ring you want to join...
  • Page 40 INSTALLATION AND OPERATION MANUAL CNGE5MS C-RSTP C-RSTP is different from standard STP/RSTP, the recovery time of C-RSTP is less than 20 milliseconds and it supports more connected nodes in a ring topology. C-RSTP interface The application of C-RSTP is shown as below.
  • Page 41 INSTALLATION AND OPERATION MANUAL CNGE5MS RSTP The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol. It provides faster spanning tree convergence after a topology change. The system also supports STP and the system will auto detect the connected device that is running STP or RSTP protocol.
  • Page 42 INSTALLATION AND OPERATION MANUAL CNGE5MS Label Description RSTP mode You must enable or disable RSTP function before configuring the related parameters. Priority (0-61440) A value used to identify the root bridge. The bridge with the lowest value has the highest priority and is selected as the root. If the value changes, you must reboot the switch.
  • Page 43 INSTALLATION AND OPERATION MANUAL CNGE5MS RSTP Information RSTP algorithm results are displayed in this table. RSTP Information interface inS_cngE5mS_rEv– Tech SupporT: 1.888.678.9427 02/19/13 PagE 43...
  • Page 44 INSTALLATION AND OPERATION MANUAL CNGE5MS MSTP Multiple Spanning Tree Protocol (MSTP) is a standard protocol base on IEEE 802.1s. The function is that several VLANs can be mapping to a reduced number of spanning tree instances because most networks do not need more than a few logical topologies. It supports load balancing schemes and the CPU is sparer than PVST (Cisco proprietary technology).
  • Page 45 INSTALLATION AND OPERATION MANUAL CNGE5MS MSTP Setting Interface The following table describes the labels on this screen. Label Description MSTP Enable You must enable or disable MSTP function before configuring the related parameters. Force Version The Force Version parameter can be used to force a VLAN Bridge that supports RSTP to operate in an STP-compatible manner.
  • Page 46 INSTALLATION AND OPERATION MANUAL CNGE5MS Max Hops This parameter is additional to those specified for RSTP. A single value (1-40) applies to all Spanning Trees within an MST Region (the CIST and all MSTIs) for which the Bridge is the Regional Root.
  • Page 47 INSTALLATION AND OPERATION MANUAL CNGE5MS MSTP Instance interface Label Description Instance Set the instance from 1 to 15 State Enable or disable the instance VLANs Set which VLAN will belong which instance Proprietary A value used to identify the root bridge. The bridge with the lowest (0-61440) value has the highest priority and is selected as the root.
  • Page 48 INSTALLATION AND OPERATION MANUAL CNGE5MS MSTP Instance Port interface Label Description Instance Set the instance’s information except CIST Port Selecting the port that you want to configure. Priority Decide which port should be blocked by priority in LAN. Enter a (0-240) number 0 through 240.
  • Page 49 INSTALLATION AND OPERATION MANUAL CNGE5MS VLAN A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain, which allows you to isolate network traffic. Only the members of the VLAN will receive traffic from the same members of VLAN. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch.
  • Page 50 INSTALLATION AND OPERATION MANUAL CNGE5MS VLAN Configuration – 802.1Q interface The following table describes the labels in this screen. Label Description VLAN Operation Configure VLAN Operation Mode: disable, Port Base, 802.1Q Mode GVRP Mode Enable/Disable GVRP function. Management Management VLAN can provide network administrator a secure VLAN VLAN ID to management Switch.
  • Page 51 INSTALLATION AND OPERATION MANUAL CNGE5MS VLAN Configuration – Port Based Traffic is forwarded to the member ports of the same VLAN group. VLAN port based startup, set in the same group of the port, can be a normal transmission packet, without restricting the types of packets.
  • Page 52 INSTALLATION AND OPERATION MANUAL CNGE5MS VLAN Configuration – Port Base interface-2 The following table describes the labels in this screen. Label Description Group Name VLAN name. VLAN ID Specify the VLAN ID Select port to join the VLAN group. Remove Remove port of the VLAN group Select Apply to activate the configurations.
  • Page 53 INSTALLATION AND OPERATION MANUAL CNGE5MS SNMP Simple Network Management Protocol (SNMP) is the protocol developed to manage nodes (servers, workstations, routers, switches and hubs etc.) on an IP network. SNMP enables network administrators to manage network performance, find and solve network problems, and plan for network growth.
  • Page 54 INSTALLATION AND OPERATION MANUAL CNGE5MS Label Description SNMP agent Three SNMP versions are supported such as SNMP V1/SNMP V2c, and Version SNMP V3. SNMP V1/SNMP V2c agent use a community string match for authentication, that means SNMP servers access objects with read-only or read/write permissions with the community default string public/private.
  • Page 55 INSTALLATION AND OPERATION MANUAL CNGE5MS SNMP – Trap Setting A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps will issue. Create a trap manager by entering the IP address of the station and a community string.
  • Page 56 Traffic Prioritization Traffic Prioritization includes 3 modes: port base, 802.1p/COS, and TOS/DSCP. By traffic prioritization function, you can classify the traffic into four classes for differential network application. CNGE5MS supports 4 priority queues. QoS policy Traffic Prioritization interface The following table describes the labels in this screen.
  • Page 57 INSTALLATION AND OPERATION MANUAL CNGE5MS Port-based priority Port-based Priority interface The following table describes the labels in this screen Label Description Port base Priority Assign Port with a priority queue. 4 priority queues can be assigned: High, Middle, Low, and Lowest.
  • Page 58 INSTALLATION AND OPERATION MANUAL CNGE5MS COS/802.1p COS/802.1p interface The following table describes the labels in this screen Label Description COS/802.1p COS (Class Of Service) is better known as 802.1p. It describes that the output priority of a packet is determined by user priority field in 802.1Q VLAN tag.
  • Page 59 INSTALLATION AND OPERATION MANUAL CNGE5MS TOS/DSCP TOS/DSCP interface The following table describes the labels in this screen Label Description TOS/DSCP TOS (Type of Service) is a field in IP header of a packet. This TOS field is also used by Differentiated Services and is calLED the Differentiated Services Code Point (DSCP).
  • Page 60 INSTALLATION AND OPERATION MANUAL CNGE5MS IGMP IGMP Snooping Internet Group Management Protocol (IGMP) is used by IP hosts to register their dynamic multicast group membership. IGMP has 3 versions, IGMP v1, v2c and v3. Please refer to RFC 1112, 2236 and 3376. IGMP Snooping improves the performance of networks that carry multicast traffic.
  • Page 61 INSTALLATION AND OPERATION MANUAL CNGE5MS Multicast Filter Multicast filtering is the system by which end stations only receive multicast traffic if they register to join specific multicast groups. With multicast filtering, network devices only forward multicast traffic to the ports that are connected to registered end stations.
  • Page 62 INSTALLATION AND OPERATION MANUAL CNGE5MS Security Five useful functions can enhance security of switch: IP Security, Port Security, MAC Blacklist, and MAC address Aging and 802.1x protocol. IP Security Only IP in the Secure IP List can manage the switch through your defined management mode.
  • Page 63 INSTALLATION AND OPERATION MANUAL CNGE5MS Port Security Port security is to add static MAC addresses to hardware forwarding database. If port security is enabled at Port Control page, only the frames with MAC addresses in this list will be forwarded, otherwise will be discarded.
  • Page 64 INSTALLATION AND OPERATION MANUAL CNGE5MS MAC Blacklist MAC Blacklist can eliminate the traffic forwarding to specific MAC addresses in list. Any frames forwarding to MAC addresses in this list will be discarded. Thus the target device will never receive any frame.
  • Page 65 INSTALLATION AND OPERATION MANUAL CNGE5MS 802.1x 802.1x - Radius Server 802.1x makes the use of the physical access characteristics of IEEE802 LAN infrastructures in order to provide an authenticated and authorized devices attached to a LAN port. Please refer to IEEE 802.1X - Port Based Network Access Control.
  • Page 66 INSTALLATION AND OPERATION MANUAL CNGE5MS Label Description Radius Server Setting Radius Server IP The IP address of the authentication server. Server port Set the UDP port number used by the authentication server to authenticate. Account port Set the UDP destination port for accounting requests to the specified Radius Server.
  • Page 67 INSTALLATION AND OPERATION MANUAL CNGE5MS 802.1x-Port Authorized Mode Set the 802.1x authorized mode of each port. 802.1x Port Authorize interface The following table describes the labels in this screen. Label Description Port Authorized Reject: force this port to be unauthorized.
  • Page 68 INSTALLATION AND OPERATION MANUAL CNGE5MS Warning This warning function is very important for managing the switch. You can manage switch by SYSLOG, Email, and Fault Relay. It helps you to monitor the switch status on remote site. When events occur, the warning message will send to your appointed server, Email, or relay fault to switch panel.
  • Page 69 INSTALLATION AND OPERATION MANUAL CNGE5MS System Warning System alarm support two warning mode: 1. SYSLOG. 2. E-MAIL. You can monitor switch through selected system events. System Warning – SYSLOG Setting The SYSLOG is a protocol to transmit event notification messages across networks. Please refer to RFC 3164 - The BSD SYSLOG Protocol System Warning –...
  • Page 70 INSTALLATION AND OPERATION MANUAL CNGE5MS System Warning – SMTP Setting. The acronym SMTP is short for Simple Mail Transfer Protocol. It is a protocol for e-mail transmission across the Internet. Please refer to RFC 821 - Simple Mail Transfer Protocol.
  • Page 71 INSTALLATION AND OPERATION MANUAL CNGE5MS System Warning – Event Selection SYSLOG and SMTP are the two warning methods that are supported by the system. Check the corresponding box to enable system event warning method you wish to choose. Please note that the checkbox cannot be checked when SYSLOG or SMTP is disabled.
  • Page 72 INSTALLATION AND OPERATION MANUAL CNGE5MS Monitor and Diagnosis MAC Address Table Refer to IEEE 802.1 D Sections 7.9. The MAC Address Table, that is Filtering Database, supports queries by the Forwarding Process, as to whether a frame received by a given port with a given destination MAC address is to be forwarded through a given potential transmission port.
  • Page 73 MAC Address Aging You can set MAC Address aging timer, as time expired, the unused MAC will be cleared from MAC table. CNGE5MS also supports Auto Flush MAC Address Table When ports Link Down. MAC Address Aging interface Port Statistics...
  • Page 74 INSTALLATION AND OPERATION MANUAL CNGE5MS Port Monitoring Port monitoring supports TX (egress) only, RX (ingress) only, and TX/RX monitoring. TX monitoring sends any data that egress out checked TX source ports to a selected TX destination port as well. RX monitoring sends any data that ingress in checked RX source ports out to a selected RX destination port as well as sending the frame where it normally would have gone.
  • Page 75 INSTALLATION AND OPERATION MANUAL CNGE5MS System Event Log If system log client is enabled, the system event logs will show in this table. System event log interface The following table describes the labels in this screen. Label Description Page Select log page.
  • Page 76 INSTALLATION AND OPERATION MANUAL CNGE5MS Save Configuration If any configuration changed, “Save Configuration” should be selected to save current configuration data to the permanent flash memory. Otherwise, the current configuration will be lost when power off or system reset. System Configuration interface The following table describes the labels in this screen.

  • Page 77: Command Line Interface Management

    INSTALLATION AND OPERATION MANUAL CNGE5MS Command Line Interface Management Configuration by Command Line Interface (CLI). About CLI Management Besides WEB-base management, the CNGE8MS also supports CLI management. You can use console or telnet to manage the switch by CLI. CLI Management by RS-232 Serial Console (9600, 8, none, 1, none) Before configuring by RS-232 serial console, use an RJ45 to DB9-F cable to connect the switches’...
  • Page 78 INSTALLATION AND OPERATION MANUAL CNGE5MS Step 2. Input a name for new connection Step 3. Select the COM port number inS_cngE5mS_rEv– Tech SupporT: 1.888.678.9427 02/19/13 PagE 78...
  • Page 79 INSTALLATION AND OPERATION MANUAL CNGE5MS Step 4. The COM port properties setting, 115200 for Bits per second, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control. Step 5. The Console login screen will appear. Use the keyboard to enter the Username and Password (The same with the password for Web Browser), then press Enter.
  • Page 80 INSTALLATION AND OPERATION MANUAL CNGE5MS CLI Management by Telnet. Users can use telnet to configure the switches. The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin Follow the steps below to access the console via Telnet.

  • Page 81: Command Level

    INSTALLATION AND OPERATION MANUAL CNGE5MS Command Level Modes Access Method Prompt Exit Method About This Model User EXEC Begin a session switch> Enter logout or The user command available at with your switch. quit. the level of user is the subset of those available at the privileged level.

  • Page 82: Commands Set List-System Commands Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—System Commands Set CNGE5MS Commands Level Description Example show config Show switch configuration switch>show config show terminal Show console information switch#show terminal menu Enter MENU mode switch>menu write memory Save your configuration into...
  • Page 83 INSTALLATION AND OPERATION MANUAL CNGE5MS dhcpserver gateway Configure gateway for DHCP clients switch(config)#dhcpserver gateway [Gateway] 192.168.1.254 dhcpserver dnsip Configure DNS IP for DHCP clients switch(config)# dhcpserver dnsip [DNS IP] 192.168.1.1 dhcpserver leasetime Configure lease time (in hour) switch(config)#dhcpserver [Hours] leasetime 1...

  • Page 84: Commands Set List-Port Commands Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—Port Commands Set CNGE5MS Commands Level Description Example interface fastEthernet Choose the port for modification. switch(config)#interface [Portid] fastEthernet 2 duplex [full | half] Use the duplex configuration switch(config)#interface command to specify the duplex...
  • Page 85 INSTALLATION AND OPERATION MANUAL CNGE5MS bandwidth out Set interface output bandwidth. switch(config)#interface [Value] Rate Range is from 100 kbps to fastEthernet 2 102400 kbps or to 256000 kbps for switch(config-if)#bandwidth out 100 giga ports, and zero means no limit. show bandwidth...

  • Page 86: Commands Set List-Trunk Command Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—Trunk command set CNGE5MS Commands Level Description Example aggregator priority Set port group system priority switch(config)#aggregator priority [1to65535] aggregator activityport Set activity port switch(config)#aggregator [Port Numbers] activityport 2 aggregator group Assign a trunk group with LACP...

  • Page 87: Commands Set List-Vlan Command Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—VLAN command set CNGE5MS Commands Level Description Example VLAN database Enter VLAN configure mode switch#VLAN database VLAN To set switch VLAN mode. switch(VLAN)# VLANmode 8021q [8021q | gvrp] switch(VLAN)# VLANmode gvrp no VLAN...

  • Page 88: Commands Set List-Spanning Tree Command Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—Spanning Tree command set CNGE5MS Commands Level Description Example spanning-tree enable Enable spanning tree switch(config)#spanning-tree enable spanning-tree priority Configure spanning tree priority switch(config)#spanning-tree [0 to 61440] parameter priority 32767 spanning-tree max-age Use the spanning-tree max-age...

  • Page 89: Commands Set List-Qos Command Set

    Show spanning-tree Display a summary of the spanning- switch>show spanning-tree tree states. no spanning-tree Disable spanning-tree. switch(config)#no spanning-tree Commands Set List—QoS command set CNGE5MS Commands Level Description Example qos policy Select QOS policy scheduling switch(config)#qos policy weighted- [weighted-fair|strict] fair qos prioritytype...

  • Page 90: Commands Set List—Igmp Command Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—IGMP command set CNGE5MS Commands Level Description Example igmp enable Enable IGMP snooping function switch(config)#igmp enable Igmp-query auto Set IGMP query to auto mode switch(config)#Igmp-query auto Igmp-query force Set IGMP query to force mode...

  • Page 91: Commands Set List—Snmp Command Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—SNMP command set CNGE5MS Commands Level Description Example snmp agent-mode Select the agent mode of SNMP switch(config)#snmp agent-mode [v1v2c | v3] v1v2c snmp-server host Configure SNMP server host switch(config)#snmp-server host [IP address] information and community string 192.168.10.50 community public...

  • Page 92: Commands Set List—Port Mirroring Command Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—Port Mirroring command set CNGE5MS Commands Level Description Example monitor rx Set RX destination port of monitor switch(config)#monitor rx function monitor tx Set TX destination port of monitor switch(config)#monitor tx function show monitor...

  • Page 93: Commands Set List—Tftp Command Set

    Display a summary of the 802.1x switch>show 8021x properties and also the port sates. no 8021x Disable 802.1x function switch(config)#no 8021x Commands Set List—TFTP command set CNGE5MS Commands Level Description Defaults Example backup flash:backup_cfg Save configuration to TFTP and switch(config)#backup...
  • Page 94 INSTALLATION AND OPERATION MANUAL CNGE5MS smtp authentication Enable SMTP authentication switch(config)#smtp authentication smtp account Configure authentication account switch(config)#smtp account User [account] smtp password Configure authentication password switch(config)#smtp password [password] smtp rcpt email Configure Rcpt e-mail Address switch(config)#smtp rcpt email 1 [Index] [Email address] Alert@test.com...

  • Page 95: Commands Set List—Sntp Command Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List—SNTP command set CNGE5MS Commands Level Description Example sntp enable Enable SNTP function switch(config)#sntp enable sntp daylight Enable daylight saving time, if SNTP switch(config)#sntp daylight function is inactive, this command can’t be applied.

  • Page 96: Commands Set List— Ring Command Set

    INSTALLATION AND OPERATION MANUAL CNGE5MS Commands Set List— Ring command set CNGE5MS Commands Level Description Example Ring enable Enable Ring switch(config)# Ring enable Ring master Enable ring master switch(config)# Ring master Ring couple ring Enable couple ring switch(config)# Ring couple ring...

  • Page 97: Technical Specifications

    INSTALLATION AND OPERATION MANUAL CNGE5MS Technical Specifications Technology Ethernet Standards IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-T(X) and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T(X), IEEE 802.3x for Flow control IEEE 802.3ad for LACP (Link Aggregation Control Protocol) IEEE 802.1D for STP (Spanning Tree Protocol)
  • Page 98 INSTALLATION AND OPERATION MANUAL CNGE5MS Mechanical Dimension (W × D × H) 54.1 × 106.1 × 145.4mm (2.13 × 4.18 × 5.72in) Casing IP-30 protection Regulatory Approvals FCC Part 15, CISPR(EN55022) class A EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge)
  • Page 99 INSTALLATION AND OPERATION MANUAL CNGE5MS inS_cngE5mS_rEv– Tech SupporT: 1.888.678.9427 02/19/13 PagE 99...
