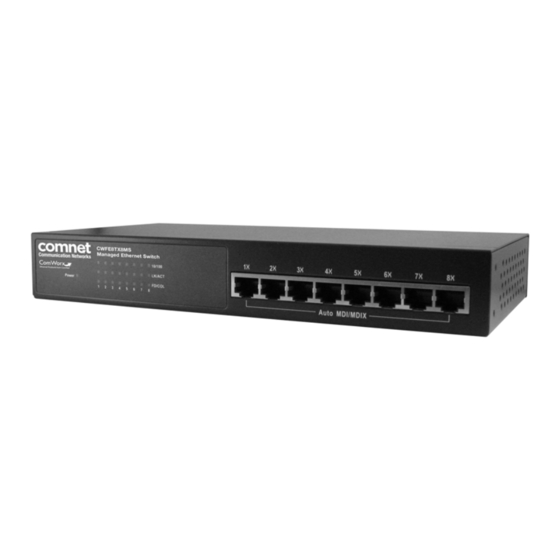

Comnet CWFE8TX8MS Installation And Operation Manual

Commercial grade 8 port managed ethernet switch with (8) 10/100tx ports
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V1.0 – September 2010
The ComNet CWFE8TX8MS Managed Ethernet Switch provides transmission of 100 BASE-TX Ethernet
data. These units are available for use with conventional CAT-5e copper transmission media. Eight
electrical ports are available for easily implementing point-to-point, linear add-drop, drop-and-repeat,
star or true self-healing ring and mesh network system architectures. The electrical ports support the
10/100 Mbps (100 BASE-TX) Ethernet IEEE 802.3 protocol, auto-negotiating and auto-MDI/MDIX features
are provided for simplicity and ease of installation. Plug-and-play design ensures ease of installation, and
no electrical adjustments are ever required. The CWFE8TX8MS incorporates LED indicators for
monitoring the operating status of the managed switch and network.
INSTALLATION AND OPERATION MANUAL
COMMERCIAL GRADE 8 PORT MANAGED
ETHERNET SWITCH WITH (8) 10/100TX PORTS
CWFE8TX8MS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CWFE8TX8MS and is the answer not in the manual?

Questions and answers

Related Manuals for Comnet CWFE8TX8MS

Summary of Contents for Comnet CWFE8TX8MS

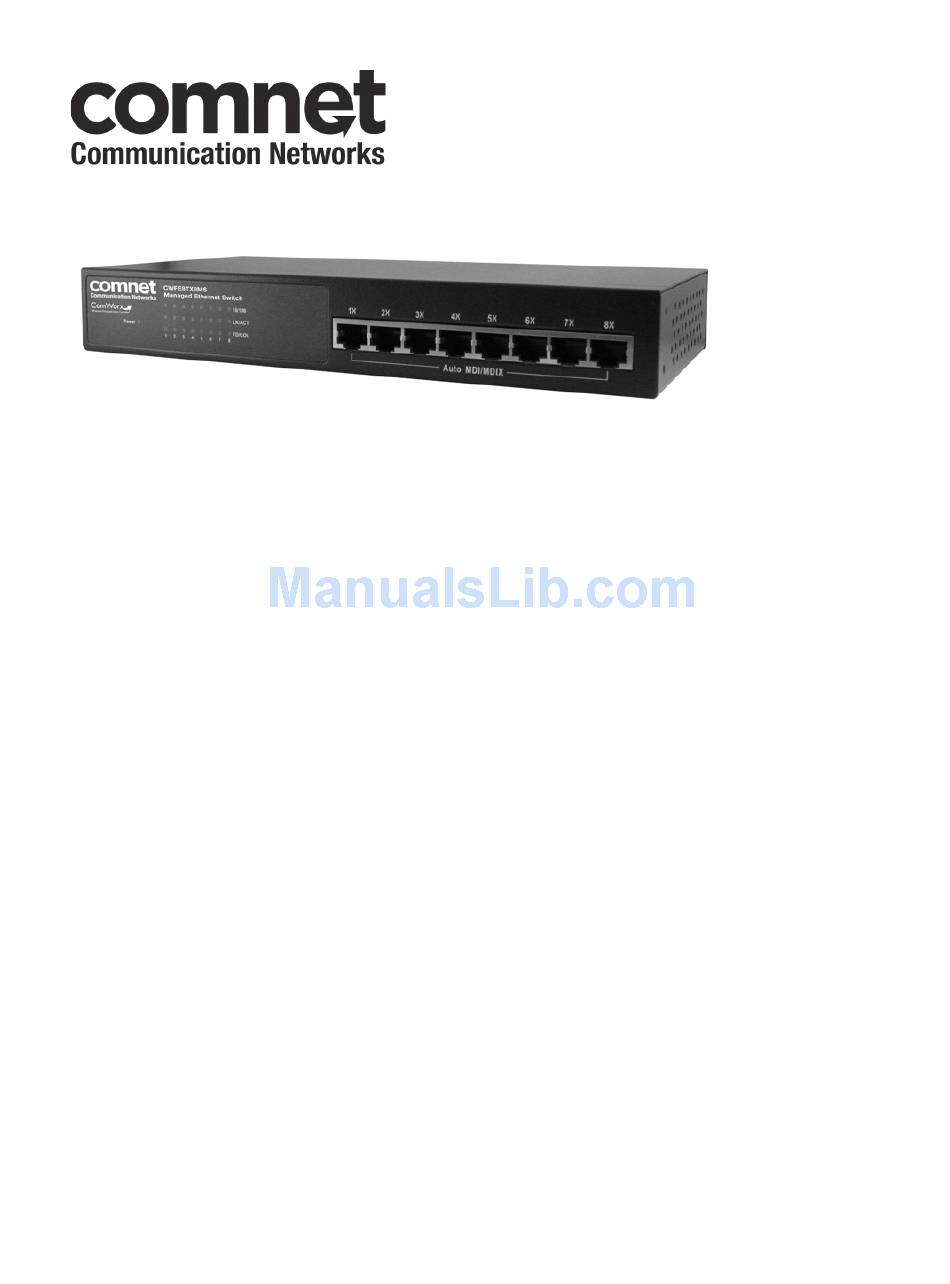

  • Page 1 ETHERNET SWITCH WITH (8) 10/100TX PORTS V1.0 – September 2010 The ComNet CWFE8TX8MS Managed Ethernet Switch provides transmission of 100 BASE-TX Ethernet data. These units are available for use with conventional CAT-5e copper transmission media. Eight electrical ports are available for easily implementing point-to-point, linear add-drop, drop-and-repeat, star or true self-healing ring and mesh network system architectures.

  • Page 2: Introduction

    Introduction The CWFE8TX8MS Managed Ethernet Switch is a compact size switch that is an ideal solution for industrial applications. It provides a Fast Ethernet switching function that allows for high-performance, low-cost network performance. The CWFE8TX8MS features a store-and-forward switching and can auto-learn and store source addresses on an 8K-entry MAC address table.

  • Page 3: Table Of Contents

    Table of Contents
 Introduction 2 Hardware Description Rear Panel ........................12 Desktop Installation ......................13 Network Application 15 Network Configuration Console – Menu 19 4.1 Main Menu........................20 4.2 Status and Counters ....................21 4.2.1 Port Status......................21 4.2.2 Port Counters ......................23 4.2.3 System Information....................24 4.3 Switch Static Configuration..................24 4.3.1 Administration Configuration .................25 4.3.2 Port / Trunk Configuration ..................28...
  • Page 4 5.3 Port Statistics ......................59 5.4 Administrator ......................60 5.4.1 IP Address ......................60 5.4.2 Switch Setting .......................61 5.4.3 Console Port Information..................66 5.4.4 Port Controls ......................67 5.4.5 Trunking .........................67 5.4.6 Filter Database.......................71 5.4.7 VLAN configuration ....................74 5.4.8 Spanning Tree......................78 5.4.9 Port Mirror ......................81 5.4.10 SNMP ........................82 5.4.11 Security Manager....................83 5.4.12 TFTP Update Firmware..................84...
  • Page 5 Features Conforms to IEEE 802.3, 802.3u, and 802.3x Ethernet Standards  Eight auto-sensing 10/100Mbps Ethernet RJ45 ports  Automatic MDI/MDIX crossover for each 10Base-T/ 100Base-TX port  One Console port on the rear side for port-based VLAN & Trunking  Configuration Half-duplex mode for backpressure, and full-duplex for flow control ...

  • Page 6: Intelligent Management Features

    Intelligent Management Features Web-based management  SNMP network management  Console and Telnet management  Port Base VLAN and IEEE 802.1q Tag VLAN, and VLAN group up to 256,  VLAN ID up to 4095. IEEE 802.3 ad LACP, Trunk group up to 4 and members up to 8 ports (8 ...

  • Page 7: Package Contents

     User Guide CWFE8TX8MS Power Cord Rubber Feet RS-232 cable User Guide Figure 1-2. Package Contents Compare the contents of your CWFE8TX8MS package with the standard checklist above. If any item is missing or damaged, please contact ComNet for assistance.

  • Page 8: Ethernet Switching Technology

    Ethernet Switching Technology Ethernet Switching Technology dramatically boosted the total bandwidth of a network, eliminated congestion problems inherent with Carrier Sense multiple access with Collision Detection (CSMA/CD) protocol, and greatly reduced unnecessary transmission. This revolutionized networking. First, by allowing two-way, simultaneous transmissions over the same port (Full-duplex), which essentially doubled the bandwidth.

  • Page 9: Management Methods

    CWFE8TX8MS by this method requires a direct connection between PC and the CWFE8TX8MS Switch. While Telnet management is done over the network. Once the CWFE8TX8MS is on the network, you can use Telnet to Log in and change the configuration.

  • Page 10: Hardware Description

    Hardware Description The CWFE8TX8MS is a compact switch (10 inches) with eight auto-sensing 10/100Mbps Ethernet RJ45 ports. The physical dimensions of the CWFE8TX8MS are: 250mmx 132mmx 37mm (Lx Wx H) Front Panel The Front Panel of the CWFE8TX8MSseries consist of eight auto-sensing 10/100Mbps Ethernet RJ45 ports (automatic MDI/MDIX), and the LED indicators are also located on the front panel of the switch.

  • Page 11: Led Indicators

    LED Indicators Figure 2-6. LED Indicators There are three LED-Indicators (100M, LNK/ACT, FDX/COL) for each UTP port. The following table provides descriptions of the LED statuses and meaning. They provide a real-time indication of systematic operation status. Status Color Description Power Green Power On...

  • Page 12: Rear Panel

    Rear Panel The Console port and 3-pronged power plug are located at the rear panel of the CWFE8TX8MS as shown in Figure 2-8. The CWFE8TX8MS will work with current in the range 100-240V AC, 50-60Hz. Figure 2-7 The Rear Panel of the 8TP Management Switch Console Port: Console management can be done through the Console Port.

  • Page 13: Desktop Installation

    Desktop Installation Set the switch on a sufficiently large flat space with a power outlet nearby. Make sure there is enough clearance around the switch to allow attachment of cables, power cord and air circulation. Attaching Rubber Feet A. Make sure mounting surface on the bottom of the Switch is grease and dust free.
  • Page 14 Power On Connect the power cord to the power socket on the rear panel of the switch. The other side of power cord connects to the power outlet. The internal power supply in the switch works in the voltage range 100-240VAC, frequency 50~60Hz.

  • Page 15: Network Application

    Network Application This section provides you a few samples of network topology in which the Switch is used. In general, the CWFE8TX8MS can be used as a desktop or segment switch. Desktop Application The CWFE8TX8MS is designed to be a desktop-sized switch that is an ideal solution for small workgroup.
  • Page 16 Segment Application For enterprise networks where large data broadcasts are constantly processed, this switch is suitable for a department to connect to the corporate backbone. Figure 3-2 Segment Applications...

  • Page 17: Network Configuration

    Connecting a Terminal or PC to the Console Port Figure 4-1. Connecting the CWFE8TX8MS to a terminal via RS-232 cable Use the supplied RS-232 cable to connect a terminal or PC to the console port. The terminal or PC to be connected must support the terminal emulation program.
  • Page 18 Baud Rate: 9600 bps Data Bits: 8 Parity: none Stop Bit: 1 Control flow: None Figure 4-2. The settings of communication parameters After you have finished parameter settings, press “Enter” Key and the Main Menu of console management appears.

  • Page 19: Console - Menu

    Console – Menu 1. The switch also provide a serial interface to manage and monitor the switch, the user can follow the Console Port Information provide by web to use windows HyperTerminal program to link the switch. 2. You can type user name and password to login. The default user name is “admin”...

  • Page 20: Main Menu

    4.1 Main Menu There are five items for selected as follows: Status and Counters: Shows the status of the switch. Switch Static Configuration: Configure the switch. Protocol Related Configuration: Configure the protocol function. Reboot Switch: Restart the system or reset switch to the default configuration. Logout: Exit the menu line program.

  • Page 21: Status And Counters

    4.2 Status and Counters You can press the key of Tab or Backspace to choose item, and press Enter key to select item. 4.2.1 Port Status This page displays every port’s status Type: Displays the port type. Enabled: Displays if the port is enabled or disabled depended on user setting. Enabled will be display “Yes”, disabled will be display “No”.
  • Page 22 Actions-> You can press the Tab or Backspace key to choose menu action, and press the Enter key to select the item <Quit>: Exit the page of port status, and return it to the previous menu. <Previous Page>: Displays previous page. <Next page>: Displays next page.

  • Page 23: Port Counters

    4.2.2 Port Counters The following information provides a view of the current status of the unit. Actions-> You can press the Tab or Backspace key to choose a menu action, and press Enter key to select the item <Quit>: Exit the port status page, and return to previous menu. <Reset All>: Set all counts to 0.

  • Page 24: System Information

    4.2.3 System Information System Description: Displays the name of device type. MAC Address: The unique hardware address assigned by manufacturer. Firmware Version: Displays the switch’s firmware version. Hardware Version: Displays the switch’s Hardware version. Default configure value version: Displays write to default EEPROM value version. 4.3 Switch Static Configuration You can press the Tab or Backspace key to choose the item, and press the Enter key to select the item...

  • Page 25: Administration Configuration

    4.3.1 Administration Configuration 4.3.1.1 Device Information This page provides information the user needs to configure the device. Actions-> <Edit>: Configure all items. When the configuration is finished, press BackSpace to go back to the action menu line. <Save>: Save all configured values. <Quit>: Exit the device information page and return to the previous menu.
  • Page 26 4.3.1.2 IP Configuration User can configure the IP setting and fill in the new values. Actions-> <Edit>: Configure all items. When the configuration is finished, press ESC to go back to the action menu line. <Save>: Save all configuration values. <Quit>: Exit the IP configuration page and return to the previous menu.
  • Page 27 Note: Restart the computer after finishing the setup. 4.3.1.3 Change Username Using this page; the user can change the web management user’s name.

  • Page 28: Port / Trunk Configuration

    4.3.1.4 Change Password Using this page, the user can change the web management user’s password. 4.3.2 Port / Trunk Configuration This page can change every port’s status and configure the trunk group. Press TAB key to change configuration of each item. 1.Enabled: The User can disable or enable this port control.

  • Page 29: Port Mirroring Configuration

    Actions-> <Quit>: Exit the port configuration page and return to previous menu. <Edit>: Configure all items. When the configuration is finished, press ESC to go back to the action menu line. <Save>: Save all configured values. <Previous Page>: Return to previous page to configure. <Next page>: Go to next page to configure.

  • Page 30: Vlan Configuration

    Actions-> <Quit>: Exit the port monitoring configuration page and return to previous menu. <Edit>: Configure all items. When the configuration is finished, press ESC to go back to the action menu line. <Save>: Save all configured values. <Previous Page>: Return to previous page to configure. <Next page>: Go to next page to configure.
  • Page 31 4.3.4.1 VLAN Configure 1. PVID (Port VID): Set the port VLAN ID that will be assigned to untagged traffic on a given port. This feature is useful for accommodating devices that you want to participate in the VLAN but that do not support tagging. Only one untagged VLAN is allowed per port.

  • Page 32: Create A Vlan Group

    4.3.4.2 Create a VLAN Group Create a VLAN and add tagged /untagged member ports to it. 1. VLAN Name: Type a name for the new VLAN. 2. VLAN ID: Type a VID (between 2~4094). The default is 1. 3. Protocol VLAN: Press Space key to choose protocols type. 4.

  • Page 33: Priority Configuration

    4.3.4.3 Edit/Delete a VLAN Group In this page, the user can edit or delete a VLAN group. 1. Press <Edit> or <Delete> item. 2. Choose the VLAN group that you want to edit or delete and then press enter. 3. The User can modify the protocol VLAN item and the member port can be tagged or un-tagged to remove some member ports from this VLAN group.
  • Page 34 Actions-> <Edit>: Configure all items. When the configuration is finished, press ESC to go back action menu line. <Save>: Save all configured values. <Quit>: Exit this page and return to previous menu. First In First Out: The sequence of packets sent is dependent on the arrival order. High to Low: The high priority packets are sent before low priority packets.

  • Page 35: Mac Address Configuration

    4.3.6 MAC Address Configuration 4.3.6.1 Static MAC Address When you add a static MAC address, it remains in the switch's address table, regardless of whether the device is physically connected to the switch. This saves the switch from having to re-learn a device's MAC address when the disconnected or powered-off device is active on the network again.
  • Page 36 Add static MAC address 1. Press <Add> --> <Edit> key to add a static MAC address. 2. Enter the MAC address to and from which the port should permanently forward traffic, regardless of the device’s network activity. 3. In the Port num item, enter the port number. 4.

  • Page 37: Filtering Mac Address

    4.3.6.2 Filtering MAC Address Edit Filtering MAC address 1.Press <Edit> key to modify a static Filtering address. 2.Choose the MAC address that you want to modify and then press enter. 3.Press <Edit> key to modify all the items. 4.Press ESC to go back action menu line, and then select <Save> to save all configure value.

  • Page 38: Misc Configuration

    4.3.7 Misc Configuration 4.3.7.1 Port Security A port in security mode will be “locked” without permission of address learning. Only the incoming packets with SMAC already existing in the address table can be forwarded normally. The User can disable the port from learning any new MAC addresses, then use the static MAC addresses screen to define a list of MAC addresses that can use the secure port.

  • Page 39: Mac Age Interval

    1.Press <Edit> to enable or disable the port security. 2.Press Space key to choose enable / disable item. 3.Press ESC to go back action menu line, and then select <Save> to save all configure value. 4.3.7.2 MAC Age Interval Type the number of seconds that an inactive MAC address remains in the switch’s address table.

  • Page 40: Broadcast Storm Filtering

    Actions-> <Edit>: Configure all items. When the configuration is finished, press ESC to go back action menu line. <Save>: Save all configured values. <Quit>: Exit this page and return to previous menu. 4.3.7.3 Broadcast Storm Filtering This page is to configure broadcast storm control, press <Edit> to configure the broadcast storm filter mode.
  • Page 41 Actions-> <Edit>: Configure all items. When the configuration is finished, press ESC to go back to the action menu line. <Save>: Save all configured values. <Quit>: Exit this page and return to previous menu.

  • Page 42: Max Bridge Transmit Delay Bound

    4.3.7.4 Max Bridge transmit delay bound Max bridge transmit delay bound: Limit the packet queuing time in the switch. If enabled, the packets queued exceeded will be dropped. Press the Space key to set the time. This valid values are 1 sec, 2 sec, 4 sec and off. Default is 1 second. Enable Delay Bound: Limit the low priority packets queuing time in the switch.

  • Page 43: Protocol Related Configuration

    4.4 Protocol Related Configuration 4.4.1 STP 4.4.1.1 STP Enable This page enables or disables the Spanning Tree function. Press the Space key to enable or disable the Spanning Tree function.

  • Page 44: System Configuration

    4.4.1.2 System Configuration 1. You can view spanning tree information about the Root Bridge on the left. 2. On the right, the user can set a new value for the STP parameter.

  • Page 45: Snmp

    4.4.1.3 Port Configuration 1. PortState: You can view the spanning tree status within the switch for each port. 2. PathCost: Specifies the path cost of the port that the switch uses to determine which ports are the forwarding ports. If you change the value, restart the switch for a valid value.

  • Page 46: System Options

    4.4.2.1 System Options Press <Edit> to enter all items, and then press <Save> to save the configuration value. 1. System Name: Enter a name to be used for the switch. 2. System Contact: Enter the name of the contact person or organization. 3.

  • Page 47: Community Strings

    4.4.2.2 Community Strings 1. Community Name: Enter the name of the current strings. 2. Write Access: Enable the rights as read-only or read/write. Read-only: Read-only, enables requests accompanied by this string to display MIB-object information. Read/Write: Read/write, enables requests accompanied by this string to display MIB-object information and to set MIB objects.

  • Page 48: Trap Managers

    Actions-> <Add>: Create a community string. <Edit>: Modify all items. When the configuration is finished, press ESC to go back action menu line. <Delete>: Delete a community string. After delete item, press <Save> to complete the delete operation. <Save>: Save all configured values. <Quit>: Exit this page and return to the previous menu.

  • Page 49: Gvrp

    Actions-> <Add>: Create a trap manager. <Edit>: Modify all items. When the configuration is finished, press ESC to go back to the action menu line. <Delete>: Delete a trap manager. After deleting the item press <Save> to complete the deleting operation. <Save>: Save all configured values.

  • Page 50: Lacp

    Actions-> <Edit>: Configure all items. Press Space key to choose Enable or Disabled mode. When the configuration is finished, press ESC to go back to the action menu line. <Save>: Save all configured values. <Quit>: Exit this page and return to previous menu. 4.4.4 LACP...

  • Page 51: Aggregator Setting

    4.4.4.1 Aggregator Setting 1. Group: Display the trunk group ID. 2. LACP: Press Space key to enable or disable LACP (Link Aggregation Control Protocol) support. If enabled, the group is LACP static trunking group. If disabled, the group is the local static trunking group. 3.

  • Page 52: State Activity

    4.4.4.2 State Activity Active: The port automatically sends LACP protocol packets. Passive: The port does not automatically send LACP protocol packets, and responds only if it receives LACP protocol packets from the opposite device. Actions-> <Edit>: Configure all items. When the configuration is finished, press ESC to go back action menu line.

  • Page 53: Lacp Status

    4.4.4.3 LACP Status Actions-> <Quit>: Exit this page and return to the previous menu. <Previous Page>: Return to the previous page to view. <Next page>: Go to next page to view.

  • Page 54: Reboot Switch

    4.5 Reboot Switch Default: Resets switch to default configuration. Restart: Reboots the switch in software reset. 4.6 X-modem Upgrade 1. Press X key to start upgrading for X-modem. 2. Disconnect the terminal and modify the baud rate to 57600bps, then reconnect.
  • Page 55 3. Select “send file" under "transfer" menu from menu bar. 4. Press "browse" button to select the path. 5. Select "1K X-modem" of protocol and press "Send" button. 6. After successfully upgrading the new firmware, modify the baud rate to 9600bps.

  • Page 57: Web-Based Management

    CWFE8TX8MS. The CWFE8TX8MS provides an embedded HTML website residing in the switch’s flash memory. It offers management features and allows users to manage the CWFE8TX8MS from anywhere on the network through a standard web browser. NOTE: For those who use Windows2000, you must have the Service Pack2 function, the web management function will have an unexpected display if the Internet Explorer version is below version 5.5.

  • Page 58: Web Management Home Overview

    5.1 Web Management Home Overview Home Page. 5.2 Port status 1. Port Status State: Displays port status off or on depended on user setting. “unlink” will be treated as “off ”. Link Status: Down is “No Link”, Up is “Link” Auto Negotiation: auto negotiation mode Speed status: Display 100Mbps or 10Mbps speed, Port 1- 8 is 10/100Mbps, Duplex status: Display full-duplex or half-duplex mode.

  • Page 59: Port Statistics

    Flow control: Display flow control status enable or disable mode Config: Display the state of user setting. Atual: Display the negotiation result. 5.3 Port Statistics 1. The following information provides a view of the current status of the unit.

  • Page 60: Administrator

    5.4 Administrator Those management functions include: IP address, Switch settings, Console port information, Port controls, Link aggregation, Filter database, VLAN configuration, Spanning Tree, Port Mirror, SNMP, Security Manager, TFTP Update Firmware Configuration Backup, Reset system and Reboot. 5.4.1 IP Address 1.

  • Page 61: Switch Setting

    5.4.2 Switch Setting 5.4.2.1 Basic 1. Description: Displays the name of device. 2. MAC Address: The unique hardware address assigned by the manufacturer (default) 3. Firmware Version: Display the switch’s firmware version. 4. Hardware Version: Display the switch’s hardware version. 5.

  • Page 62: Miscellaneous Settings

    5.4.2.2 Advanced Miscellaneous Settings MAC Address Age-out Time: Type the number of seconds that an inactive MAC address remains in the switch's address table. The valid range is 300~765 seconds. Default is 300 seconds. Max bridge transit delay bound control: Limit the packets queuing time in switch. If enabled, the packets queued exceeded will be dropped.
  • Page 63 1. Auto Mode: Choose the indicated Switch, which has the smallest IP address will be set for the IGMP Query. 2. Enable Mode: Enable one of Switch to be the IGMP Query. 3. Disable Mode: Disable the other CWFE8TX8MS to be the IGMP Query.
  • Page 64 VLAN Operation Mode: No VLAN 802.1Q(Tag VLAN) without GVRP VLAN mode 802.1Q(Tag VLAN) with GVRP VLAN mode (Default) Port Based Also, the three topologies shown below illustrate how the IGMP Query works within a network: 1. This topology has to be set for when the switch’s IP address is smaller than other switch in the subnet.
  • Page 65 2. This topology has to be set for when the switch’s IP address is not smaller than other switch in subnet. Note: This switch supports IGMP protocol, but IGMP function has to be in enable mode, and the switch has to be the Query. 3.

  • Page 66: Console Port Information

    4. All switches must be in Disable mode when VOD server is set up for IGMP Query. GVRP (GARP [Generic Attribute Registration Protocol] VLAN Registration Protocol) GVRP allows automatic VLAN configuration between the switch and nodes. If the switch is connected to a device with GVRP enabled, you can send a GVRP request using the VID of a VLAN defined on the switch and the switch will automatically add that device to the existing VLAN.

  • Page 67: Port Controls

    5.4.4 Port Controls 1. This page can change every port status State: User can disable or enable this port control Auto Negotiation: User can set auto negotiation as enabled or disabled per port Speed setting: User can set 100Mbps or 10Mbps speed (Port1~Port8) Duplex setting: User can set full-duplex or half-duplex mode Flows control setting: User can set the flow control function as enabled or disabled...
  • Page 68 feature can expand bandwidth to a device on the network. LACP operation requires full-duplex mode, more detailed information, refer to IEEE 802.3ad. 5.4.5.1 Aggregator setting System Priority: A value used to identify the active LACP. The switch with the lowest value has the highest priority and is selected as the active LACP. 1.Group ID: you can create a link aggregation across two or more ports, choose the "group id"...

  • Page 69: Aggregator Information

    5.4.5.2 Aggregator Information When you are setting the LACP aggregator, you can see related information here. 5.4.5.3 State Activity Active (select): The port automatically sends LACP protocol packets. Passive (no select): The port does not automatically sends LACP protocol packets, and responds only if it receives LACP protocol packets from the opposite device.

  • Page 71: Filter Database

    5.4.6 Filter Database 5.4.6.1 IGMP Snooping The CWFE8TX8MS supports IP multicast, you can enable IGMP protocol on the web management’s switch setting advanced page, then display the IGMP snooping information in this page, you can view different multicast groups, VID and member ports here.

  • Page 72: Static Mac Address

    IP manages multicast traffic by using the CWFE8TX8MS, routers, and hosts that support IGMP. Enabling IGMP allows the ports to detect IGMP queries and report packets and manage IP multicast traffic through the switch. IGMP has three fundamental types of messages as displayed below:...

  • Page 73: Port Security

    1. To add a static MAC address 2. From the main menu, select administrator, then click Filter Database. 3. Click Static MAC Addresses. In the MAC address box, enter the MAC address to and from which the port should permanently forward traffic, regardless of the device's network activity.

  • Page 74: Vlan Configuration

    However, all the network devices are still physically plugged into the same switch. The CWFE8TX8MS supports port-based and protocol-base VLAN in the web management page. In the default configuration, VLAN support is enabled and all ports on the switch belong to default VLAN, and the VID is 1.
  • Page 75 Support Port-based VLANs (IEEE 802.1Q VLAN) Port-based tagging rule VLAN is an IEEE 802.1Q specification standard. Therefore, it is possible to create a VLAN across devices from different switch venders. IEEE 802.1Q VLAN uses a technique to insert a “tag” into the Ethernet frames. This tag contains a VLAN Identifier (VID) that indicates the VLAN numbers.
  • Page 76 5.4.7.1 Basic Create a VLAN and add tagged member ports to it. 1. From the main menu, click administrator -- VLAN configuration. 2. Click Add 3. Type a name for the new VLAN. 4. Type a VID (between 2-4094). The default is 1. 5.
  • Page 77 Ingress Filtering Ingress filtering lets frames belonging to a specific VLAN to be forwarded if the port belongs to that VLAN. The CWFE8TX8MS has two ingress filtering rules as follows: Ingress Filtering Rule 1: Forward only packets with VID matching this port's configured VID.

  • Page 78: Spanning Tree

    You can enable Spanning-Tree Protocol on the web management’s switch setting advanced item. Select enable Spanning-Tree protocol. ComNet recommends that you enable STP on all CWFE8TX8MS switches to ensure a single active path on the network. 1. You can view spanning tree information about the Root Bridge on the...
  • Page 79 2. You can view spanning tree status about the switch on the following screen. Parameter Description A value used to identify the root bridge. The bridge with the lowest value Priority has the highest priority and is selected as the root. Enter a number 1 through 65535.
  • Page 80 3. The following parameter can be configured on each port, select the Apply button to modify. Parameter Description You can make it more or less likely to become the root port, the Port range is 0-255, the default setting is 128. Priority The lowest number has the highest priority.

  • Page 81: Port Mirror

    5.4.9 Port Mirror The Port Mirror is a method for monitoring traffic in switched networks. Traffic through ports can be monitored by one specific port. That is, the traffic that goes in or out of monitored ports will be duplicated into the mirror port. Roving Analysis State: Enable or disable the port mirror function.

  • Page 82: Snmp

    The SNMP is a protocol that governs the transfer of information between management and agent. The CWFE8TX8MS supports SNMP V1. 1. Use this page to define the management stations as trap managers and to enter SNMP community strings.

  • Page 83: Security Manager

    Read write: Enables requests accompanied by this string to display MIB-object information and to set MIB objects. 3. Trap Manager A trap manager is a management station that receives traps, the system alerts generated by the switch. If no trap manager is defined, no traps are issued. Create a trap manager by entering the IP address of the station and a community string.

  • Page 84: Tftp Update Firmware

    5.4.12 TFTP Update Firmware 1. The following menu options provide some system control functions to allow a user to update firmware and remote boot switch system: * Executing TFTP software * Copy firmware update version image.bin to TFTP software directory. * In web management select administrator—TFTP update firmware.

  • Page 85: Configuration Backup

    5.4.13 Configuration Backup 5.4.13.1 TFTP Restore Configuration Use this page to set TFTP server address. You can restore EEPROM value from here, but you must put back image in TFTP server, switch will download back flash image. 5.4.13.2 TFTP Backup Configuration Use this page to set TFTP server IP address.

  • Page 86: Reset System

    5.4.14 Reset System Reset Switch to default configuration. 5.4.15 Reboot Reboot the Switch in software reset.

  • Page 87: Technical Specifications

    EIA/TIA-568 100-ohm (100m) Dimensions 250mm x 132mm x 37mm (L x W x H) Weight 8TP Management Switch: 1060 g CWFE8TX8MS series: 1080 ±20 g Storage Temp. -40ºC to 85ºC (-40ºF to 185ºF) Operational Temp. 0ºC to 50ºC (32ºF to 122ºF)

  • Page 88: Problem Solving

    Problem Solving This section is intended to help you solve the most common problems on the CWFE8TX8MS managed Ethernet switch. Incorrect connections Faulty or loose cables  Look for loose or obviously faulty connections. If they appear to be connected, make sure the connections are snug.
  • Page 89 Diagnostic LED Indicators The switch can be easily monitored through panel indicators to assist in identifying problems, which describes common problems you may encounter and where you can find possible solutions. If the power indicator does not turn on when the power cord is plugged in, you may have a problem with power outlet, or power cord.
