This guide serves the following
ComNet Model Numbers:
CNGE11FX3TX8MS
CNGE11FX3TX8MSPOE
CNGE11FX3TX8MSPOEHO
QUICK START GUIDE

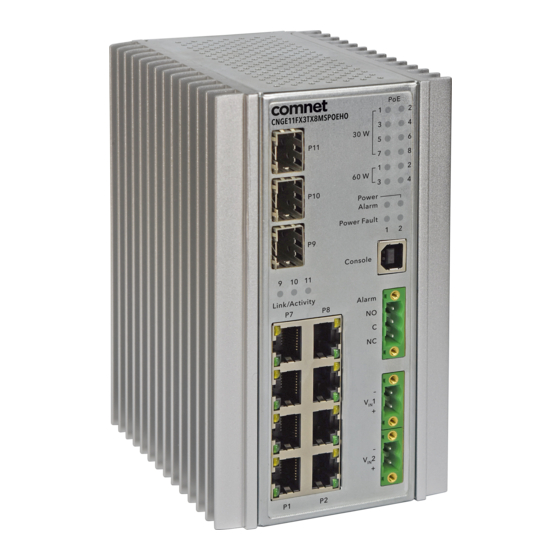

CNGE11FX3TX8MS[POE][HO]
Environmentally Hardened Managed Ethernet Switch
3 SFP + 8 Electrical Ports with Optional 30 or 60 Watt PoE
The ComNet CNGE11FX3TX8MS[POE][HO] has three 100/1000Base-FX SFP ports
and eight 10/100/1000Base-TX ports. Two of the SFP ports support 2.5 Gbps
SFPs for high speed communication in bandwidth intensive applications. All SFP
ports utilize ComNet SFP modules for fiber and connector type and distance. The
IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (MSTP/RSTP/
STP/ERPS (G.8032)) which protect your applications from network interruptions or
temporary malfunctions by redirecting transmission within the network. The switch
provides advanced IP-based management that can limit the maximum bandwidth
for each connected IP device, allowing the user to adjust usage. Two models are
available which supply Power over Ethernet (PoE). The CNGE11FX3TX8MSPOE
model provides eight electrical ports supporting up to thirty watts of power. On the
CNGE11FX3TX8MSPOEHO model, four of the eight PoE ports can support up to sixty
watts of PoE power. All PoE ports are IEEE802.3at compliant.
Rev. 11.6.17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Comnet CNGE11FX3TX8MS
Summary of Contents for Comnet CNGE11FX3TX8MS
- Page 1 10/100/1000Base-TX ports. Two of the SFP ports support 2.5 Gbps ComNet Model Numbers: SFPs for high speed communication in bandwidth intensive applications. All SFP CNGE11FX3TX8MS ports utilize ComNet SFP modules for fiber and connector type and distance. The CNGE11FX3TX8MSPOE IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (MSTP/RSTP/ CNGE11FX3TX8MSPOEHO STP/ERPS (G.8032)) which protect your applications from network interruptions or...
-
Page 2: Table Of Contents
QUICK START GUIDE CNGE11FX3TX8MS[POE][HO] Contents Regulatory Compliance Statement Warranty Disclaimer Safety Information Hardware Installation Installing the Switch on DIN-Rail Wall Mounting Installation Hardware Overview Power Supply Front Panel LEDs POEHO 60 W PoE Model WEB Management TECH SUPPORT: 1.888.678.9427 QSG_CNGE11FX3TX8MS[POE][HO]_REV– Rev. 11.6.17 PAGE 2... -
Page 3: Regulatory Compliance Statement
ComNet warrants that all ComNet products are free from defects in material and workmanship for a specified warranty period from the invoice date for the life of the installation. ComNet will repair or replace products found by ComNet to be defective within this warranty period, with shipment expenses apportioned by ComNet and the distributor. -
Page 4: Safety Information
QUICK START GUIDE CNGE11FX3TX8MS[POE][HO] Safety Information » Only ComNet service personnel can service the equipment. Please contact ComNet Technical Support. » The equipment should be installed in locations with controlled access, or other means of security, and controlled by persons of authority. When operating at temperatures above 51º C, the equipment surfaces will be hot to the touch. -
Page 5: Hardware Installation
QUICK START GUIDE CNGE11FX3TX8MS[POE][HO] Hardware Installation Installing the Switch on DIN-Rail Each switch has a Din-Rail kit on the rear panel. The DIN-Rail kit affixes the switch to the DIN-Rail. TECH SUPPORT: 1.888.678.9427 QSG_CNGE11FX3TX8MS[POE][HO]_REV– Rev. 11.6.17 PAGE 5... - Page 6 QUICK START GUIDE CNGE11FX3TX8MS[POE][HO] It is easy to install the switch on the Din-Rail: Mount Series on DIN-Rail Step 1: Tilt the switch and mount the metal spring to DIN-Rail. Step 2: Push the switch toward the DIN-Rail until you hear the spring snap into place TECH SUPPORT: 1.888.678.9427...
-
Page 7: Wall Mounting Installation
QUICK START GUIDE CNGE11FX3TX8MS[POE][HO] Wall Mounting Installation Each switch has another installation method for users to fix the switch. A wall mount panel can be found in the package. The following steps show how to mount the switch on the wall:... -
Page 8: Hardware Overview
QUICK START GUIDE CNGE11FX3TX8MS[POE][HO] Hardware Overview CNGE11FX3TX8MS[POE][HO] Call-out Description 1 × 100/1000Base-FX SFP Port 2 × 100/1000/2500Base-FX SFP Ports Link/Activity LED Indicators for SFP Ports 8 × 10/100/1000Base-TX RJ45 Ports PoE LED Indicators (PoE models only) Alarm and Power LED Indicators... -
Page 9: Power Supply
CNGE11FX3TX8MS[POE][HO] Power Supply For CNGE11FX3TX8MS Models, Power Supply must be 12 to 57 VDC @ 15 W max. For CNGE11FX3TX8MSPOE Model, Power Supply must be 44 to 57 VDC @ 255W max. For CNGE11FX3TX8MSPOEHO Model, Power Supply must be 44 to 57 VDC @ 375W max. -
Page 10: Web Management
QUICK START GUIDE CNGE11FX3TX8MS[POE][HO] WEB Management Attention: While installing and upgrading firmware, please remove physical loop connection first. DO NOT power off equipment while the firmware is upgrading! Configuration by Web Browser About Web-based Management An embedded HTML web site resides in the flash memory on the CPU board. It contains advanced management features and allows you to manage the switch from anywhere on the network through a standard web browser such as Microsoft Internet Explorer. - Page 11 QUICK START GUIDE CNGE11FX3TX8MS[POE][HO] TECH SUPPORT: 1.888.678.9427 QSG_CNGE11FX3TX8MS[POE][HO]_REV– Rev. 11.6.17 PAGE 11...
- Page 12 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2017 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC.
