INSTALLATION AND OPERATION MANUAL
CWFE(1,2)COAX[M]
100MBPS ETHERNET-OVER-COAX
SINGLE / DUAL CHANNEL
™

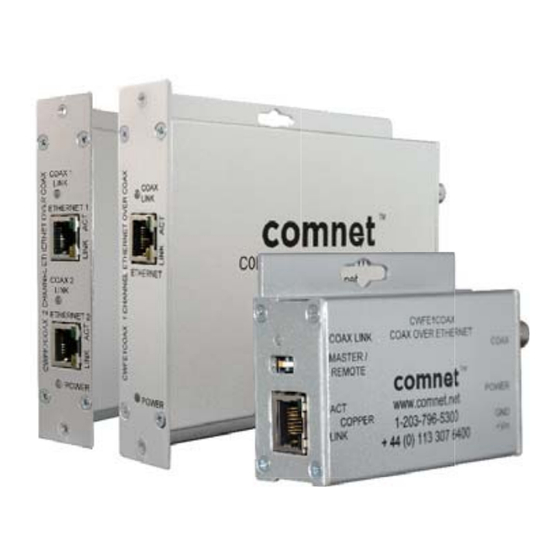

The ComNet CWFE1COAX[M] and CNFE2COAX support high-speed Ethernet
transmission over standard 75 Ω coaxial cable circuits, at data rates of
100Mbps, and transmission distances of up to 305 meters (1000 feet).
The CWFE1COAXM is a small sized unit and the CWFE2COAX contains two
independent channels in a single standard-sized enclosure (ComFit). These
modems are the perfect solution for upgrading an existing coaxial cable plant
for use with Ethernet, when compared to the significant costs and nuisance of
installing new network cabling.
User-configurable master/remote selection is included for unparalleled
versatility. See Figure 10 on Page 5 for Switch settings.
LED indicators are provided for rapidly ascertaining the operating status of the
device. See Figure 9 on Page 5 for LED explanations.
These units are designed for shelf, card cage or stand-alone mounting, making
them ideal for those installations were space is limited. The CWFE1COAXM
and CWFE2COAX may also be DIN-rail mounted by the addition of the ComNet
model DINBKT2 Adaptor Plate Kit. See Figures A and B on Page 6 for
mounting instructions.
See Figures 1 – 10 for complete installation details.
INS_CWFE(1,2)COAX[M]_REV–
11/18/10
PAGE 1
