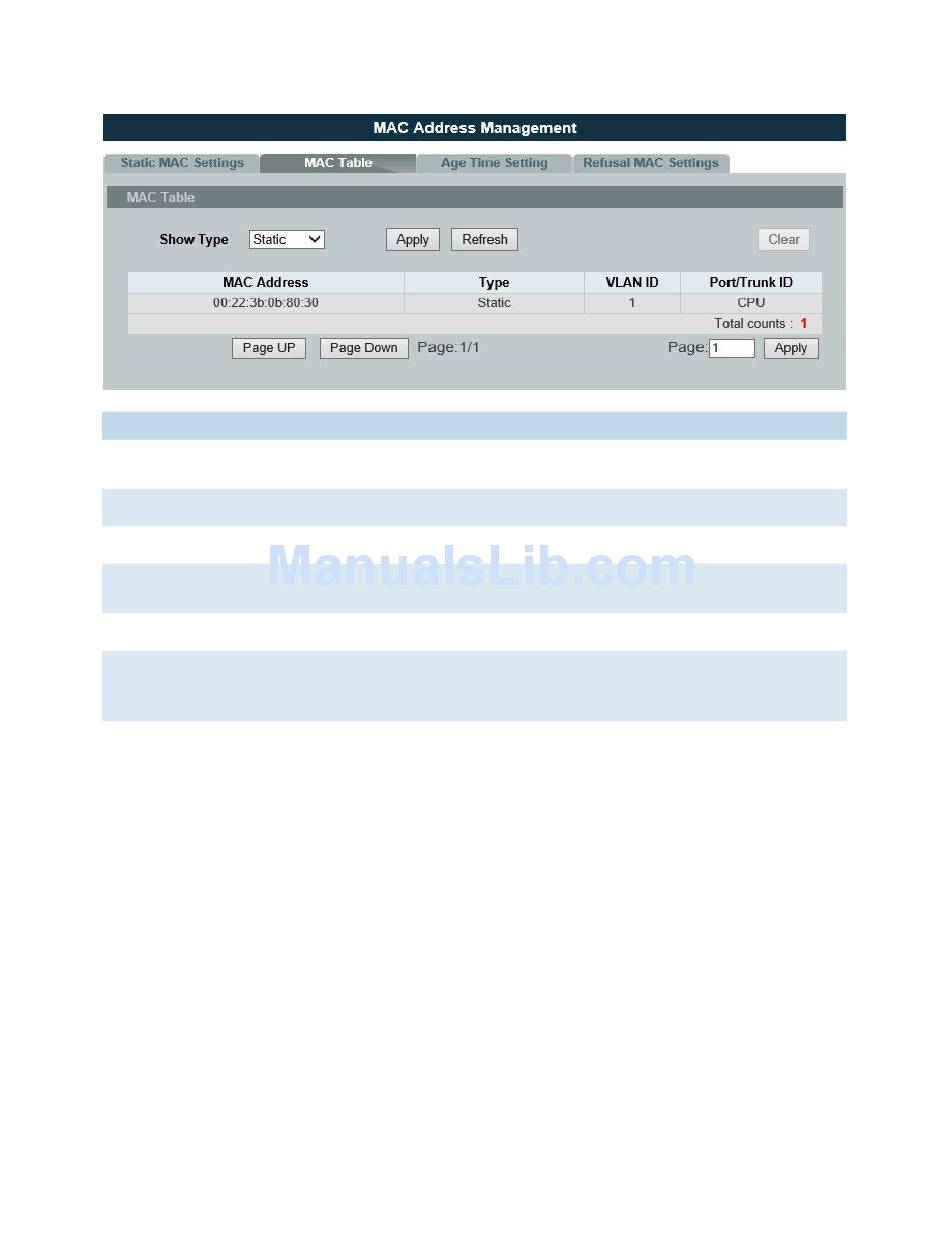

MAC Table
Parameter
Show Type
Apply
Refresh
MAC Address
Type
VLAN ID
Port
Total Counts
TECH SUPPORT: 1.888.678.9427
Description
Select All, Static, Dynamic or Port and then click Apply to display the
corresponding MAC address entries on this screen.
Click this to update the information in the MAC table.
This field displays a MAC address.
This field displays whether this entry was entered manually (Static) or
whether it was learned by the Switch (Dynamic).
This field displays the VLAN ID of the MAC address entry.
This field displays the port number the MAC address entry is
associated. It displays CPU if it is the entry for the Switch itself.
The CPU means that it is the Switch's MAC.
This field displays the total entries in the MAC table.
