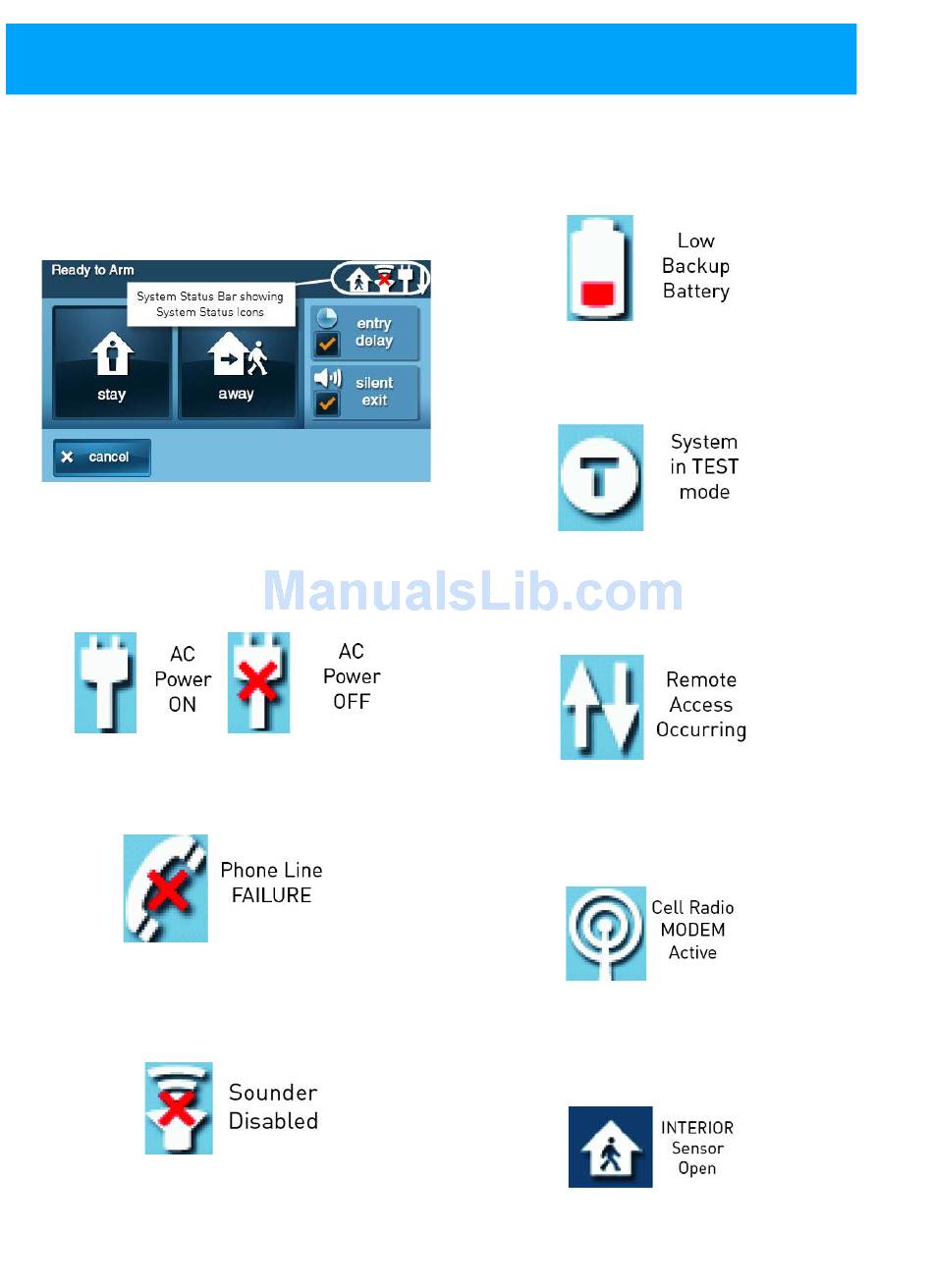

SYSTEM STATUS ICONS

The top line of the Control Panel's display is the
status bar that shows the current system mode, the
status of the sensors, and any current system
trouble alerts. Special icons are displayed to
visually show the system's current condition.
AC Power Icon
The AC power icon indicates the Control Panel's AC
line power status. The icon displays a white plug
when the AC power is present; the icon will display
with a red "X" over the white plug when AC power
is absent.
Phone Line Failure Icon
If the Control Panel detects that the telephone line
is disconnected, the phone line failure icon
appears.
Sounder Disabled Icon
If the system's internal sounder has been lowered
and external sounder has been disabled by the
installer for testing, the sounder disabled icon
appears. It also flashes to indicate silent arming.
20
©2013 2GIG Technologies Inc. All Rights Reserved.
Backup Battery Status Icon
If the Control Panel's backup battery tests low, the
low backup battery icon appears.
Test Mode Icon
When the system is being tested in Walk Test
Mode, the test mode icon will be displayed on the
status bar.
Touch Screen Keypad Traffic Icon
When the Control Panel is communicating to a
touch screen keypad the up arrow icon appears.
When a touch screen keypad communicates to the
Control Panel the down arrow icon appears.
Cell Radio Icon
If the system's optional cell radio module is
installed, the cell radio icon appears while the
Control Panel is receiving over‐the‐air firmware
updates.
Interior Sensor Open Icon
If an interior sensor is open (or a motion detector
has just been activated) the house icon appears on
the status bar. As a warning, the icon flashes during
arming.
