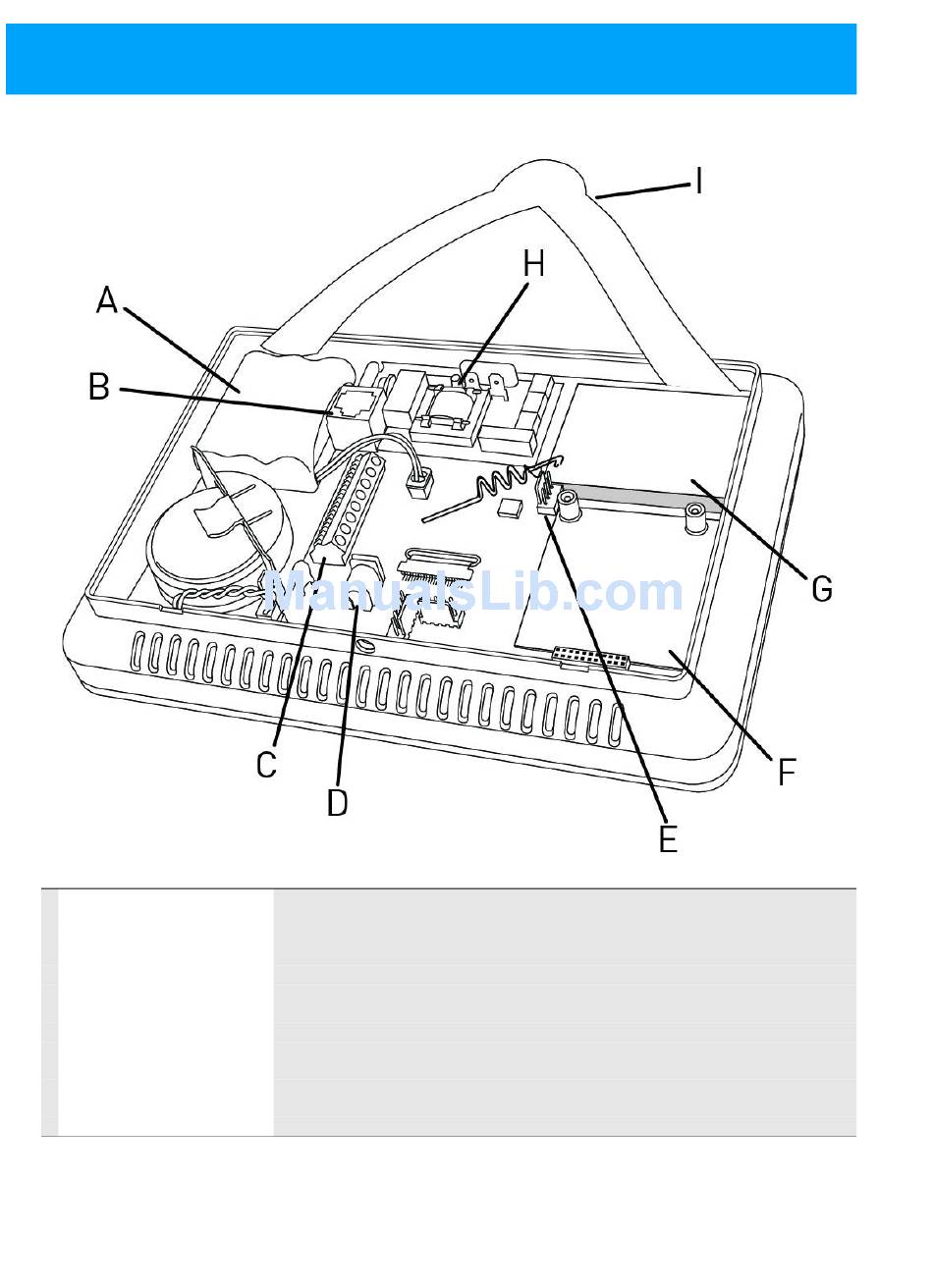

CONTROL PANEL INTERNAL FEATURES

A Backup Battery Pack

B Telephone Jack

C Terminal Block

D Alternate Power Supply

E J4 Pin Connector

F Optional Receiver Module

G Main Receiver Module

H POTS Module (OPTIONAL)

I THIRD HAND Hanger Strap

7.2 Volt Ni‐mh battery pack is included with the Control Panel, replacement part number

2GIG‐BATT1.

Used for RJ45 connection to installation's RJ31X telephone jack.

Connections for power, solid state output bell, and hardwire loops.

Alternate connection for power. (Plug‐in barrel connector)

Connector for the Firmware Update Cable used to update the firmware version on the

Control Panel.

Module for over‐the‐air communication with the Central Station.

345 MHz receiver for wireless sensors Optional Model XCVR2 345 / 900 MHz transceiver

for touch screen keypads.

POTS (Plain Old Telephone System) Module for connecting lineman's "buttset" for

monitoring the telephone line.

Hooks onto mounting plate during installation to hold the Control Panel while wiring.
