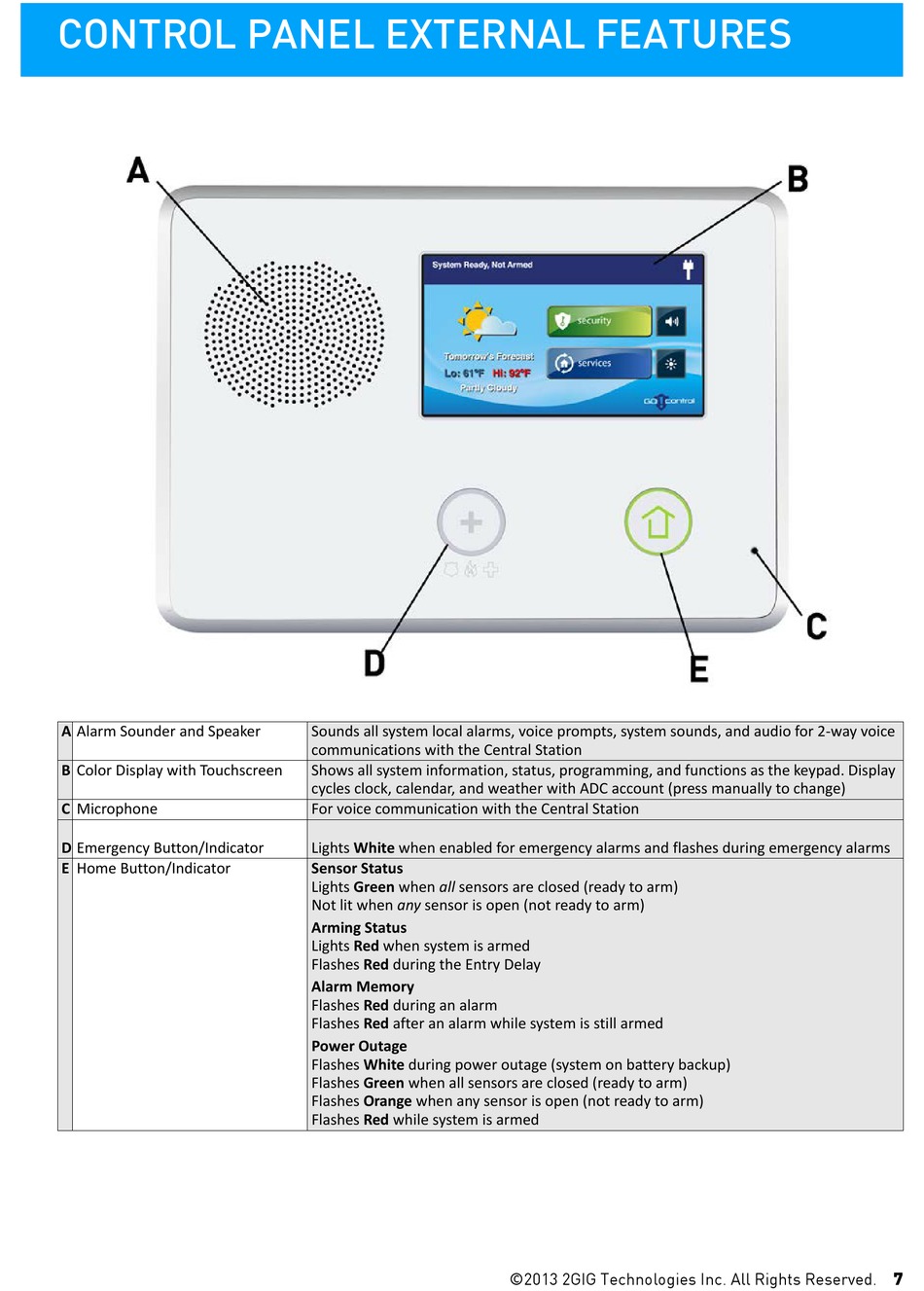

CONTROL PANEL EXTERNAL FEATURES

A Alarm Sounder and Speaker
B Color Display with Touchscreen
C Microphone

D Emergency Button/Indicator
E Home Button/Indicator
Sounds all system local alarms, voice prompts, system sounds, and audio for 2‐way voice
communications with the Central Station
Shows all system information, status, programming, and functions as the keypad. Display
cycles clock, calendar, and weather with ADC account (press manually to change)
For voice communication with the Central Station

Lights White when enabled for emergency alarms and flashes during emergency alarms
Sensor Status
Lights Green when all sensors are closed (ready to arm)
Not lit when any sensor is open (not ready to arm)
Arming Status
Lights Red when system is armed
Flashes Red during the Entry Delay
Alarm Memory
Flashes Red during an alarm
Flashes Red after an alarm while system is still armed
Power Outage
Flashes White during power outage (system on battery backup)
Flashes Green when all sensors are closed (ready to arm)
Flashes Orange when any sensor is open (not ready to arm)
Flashes Red while system is armed
