At the demarcation box, connect the Black
4
cable wire to the house telephone Ring wire(s),
and the Yellow cable wire to the house
telephone Tip wire(s).
At the Control Panel, connect the cable's Red
5
wire to the RJ31X jack's Ring in terminal, and
the Green wire to the RJ31Xjack's Tip in
terminal.
At the Control Panel, connect the cable's Black
6
wire to the RJ31X jack's Ring out terminal, and
the Yellow wire to the RJ31Xjack's Tip out
terminal.
Snap the cover on the jack. Plug one end of the
7
modular cable into the jack and slide it through
the hole in the mounting plate into the wall.
Power up the Control Panel. From the Menu
8
Screen, press the Toolbox / System
Configuration. Press the Go To button to jump
directly to Q8, Q11 and Q12 to program the
POTS module. If you do not program the POTS
module the Control Panel will never access or
use the POTS module.
CELL RADIO MODULE
INSTALLATION
If installing the Cell Radio Module, see below:

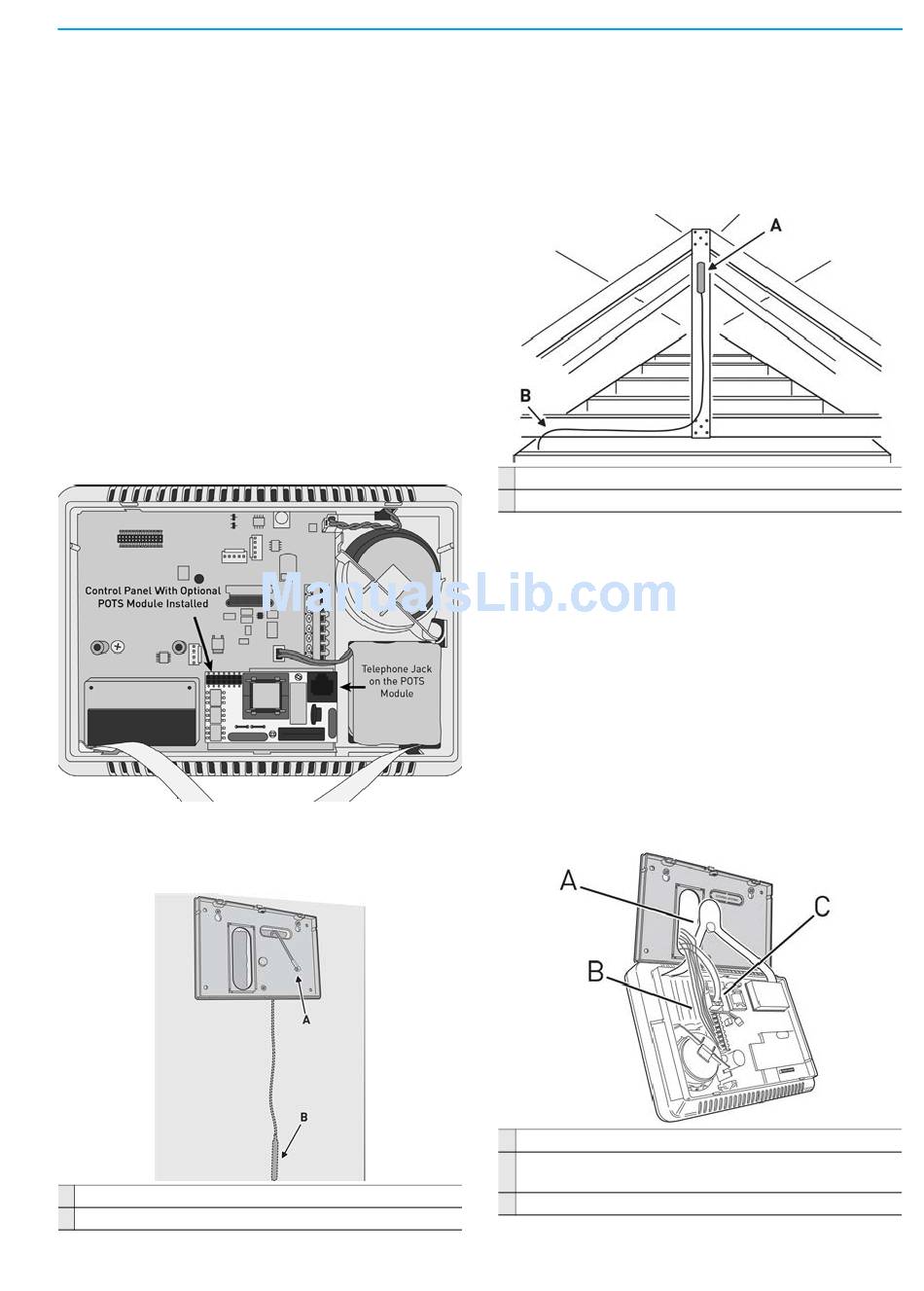

A Cell Radio Module Connector
B End of antenna hangs down inside the wall
The routing of the antenna wire is
NOTE:
critical. Route the wire as directed or cell
radio interference will occur!
when using external antennas, plug the
1
antenna connector into the Cell Radio Module.
The antenna drops into the wall or mounts in
the attic with the cable passing through the
slot in the Control Panel's mounting plate.
A Attic antenna mounted as high as possible
B Coaxial cable to Control Panel
The cell radio module should already be activated by
the factory. If not, contact your service provider. For
the Cell Radio Module to function, it needs to be
activated before it can be enrolled (by creating an
account with the service provider).
CONTROL PANEL WIRING
The "third‐hand" plastic strap allows the unit to
hang on the mounting plate during installation.
Using the "third hand" strap, hang the Control
1
Panel on the mounting plate.
Connect the hardwire loop, external sounder,
2
and open collector output wiring (if used) to
the Control Panel's terminal block.
Plug the telephone line (if used) into the
3
connector on the Control Panel's circuit board.
A Hang console on "third‐hand" strap.
B Connect hardwire loops, external sounder, and open
collector output to terminals.
C Plug telephone line into telephone jack.
