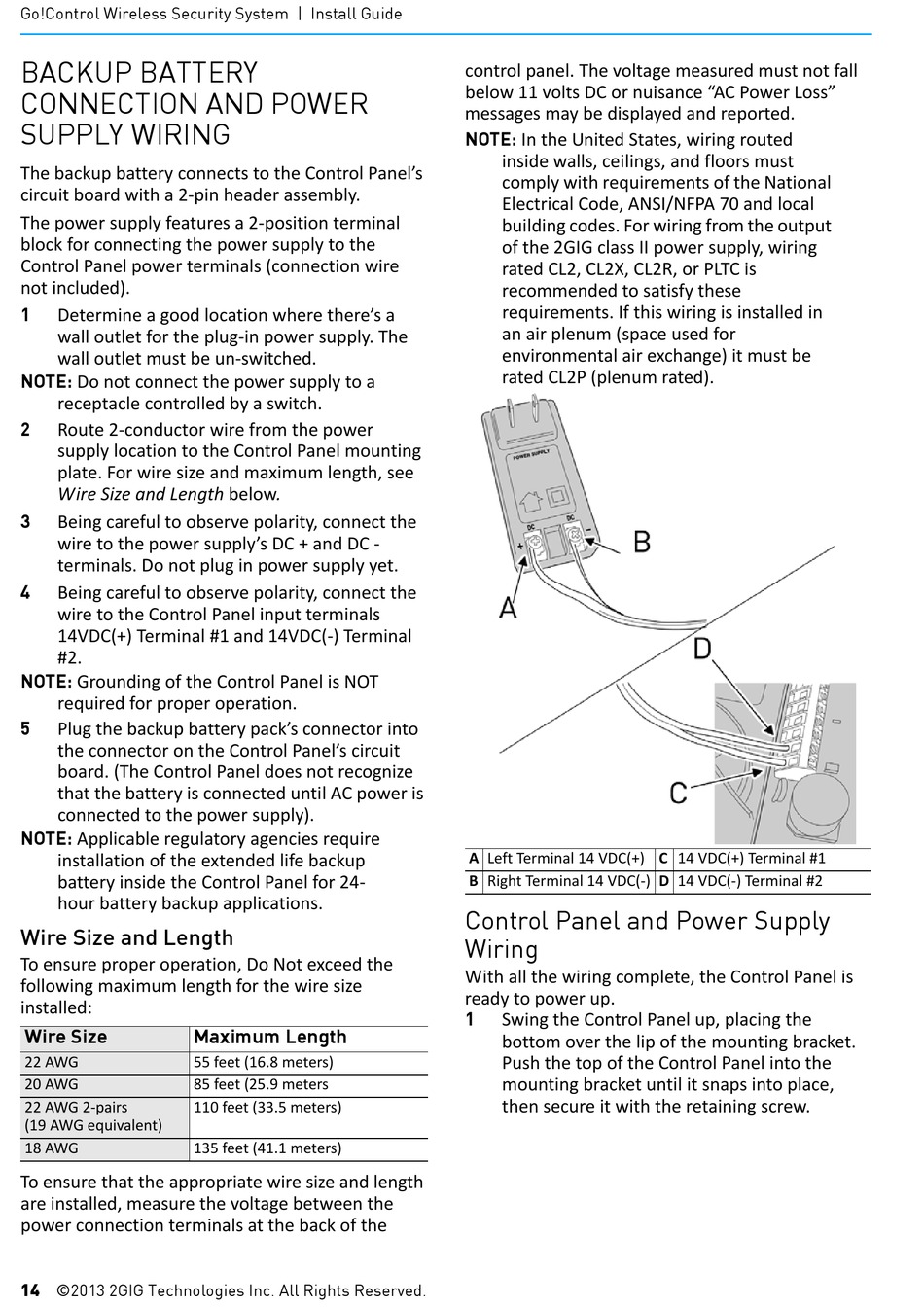

Backup Battery Connection And Power Supply Wiring - 2gig Technologies Go Control Install Manual

Go!Control Wireless Security System | Install Guide
BACKUP BATTERY
CONNECTION AND POWER
SUPPLY WIRING
The backup battery connects to the Control Panel's
circuit board with a 2‐pin header assembly.
The power supply features a 2‐position terminal
block for connecting the power supply to the
Control Panel power terminals (connection wire
not included).
Determine a good location where there's a
1
wall outlet for the plug‐in power supply. The
wall outlet must be un‐switched.
Do not connect the power supply to a
NOTE:
receptacle controlled by a switch.
Route 2‐conductor wire from the power
2
supply location to the Control Panel mounting
plate. For wire size and maximum length, see
Wire Size and Length below.
3 Being careful to observe polarity, connect the
wire to the power supply's DC + and DC ‐
terminals. Do not plug in power supply yet.
Being careful to observe polarity, connect the
4
wire to the Control Panel input terminals
14VDC(+) Terminal #1 and 14VDC(‐) Terminal
#2.
Grounding of the Control Panel is NOT
NOTE:
required for proper operation.
Plug the backup battery pack's connector into
5
the connector on the Control Panel's circuit
board. (The Control Panel does not recognize
that the battery is connected until AC power is
connected to the power supply).
Applicable regulatory agencies require
NOTE:
installation of the extended life backup
battery inside the Control Panel for 24‐
hour battery backup applications.
Wire Size and Length
To ensure proper operation, Do Not exceed the
following maximum length for the wire size
installed:
Wire Size Maximum Length
22 AWG 55 feet (16.8 meters)
20 AWG 85 feet (25.9 meters
22 AWG 2‐pairs 110 feet (33.5 meters)
(19 AWG equivalent)
18 AWG 135 feet (41.1 meters)
To ensure that the appropriate wire size and length
are installed, measure the voltage between the
power connection terminals at the back of the
14 ©2013 2GIG Technologies Inc. All Rights Reserved.
control panel. The voltage measured must not fall
below 11 volts DC or nuisance "AC Power Loss"
messages may be displayed and reported.
In the United States, wiring routed
NOTE:
inside walls, ceilings, and floors must
comply with requirements of the National
Electrical Code, ANSI/NFPA 70 and local
building codes. For wiring from the output
of the 2GIG class II power supply, wiring
rated CL2, CL2X, CL2R, or PLTC is
recommended to satisfy these
requirements. If this wiring is installed in
an air plenum (space used for
environmental air exchange) it must be
rated CL2P (plenum rated).
A Left Terminal 14 VDC(+) C 14 VDC(+) Terminal #1
B Right Terminal 14 VDC(‐) D 14 VDC(‐) Terminal #2
Control Panel and Power Supply
Wiring
With all the wiring complete, the Control Panel is
ready to power up.
1 Swing the Control Panel up, placing the
bottom over the lip of the mounting bracket.
Push the top of the Control Panel into the
mounting bracket until it snaps into place,
then secure it with the retaining screw.
