Press each test item displayed, observe the
6
Control Panel item being tested, and answer
the yes/no question for the test.
When all sensors and devices have been
7

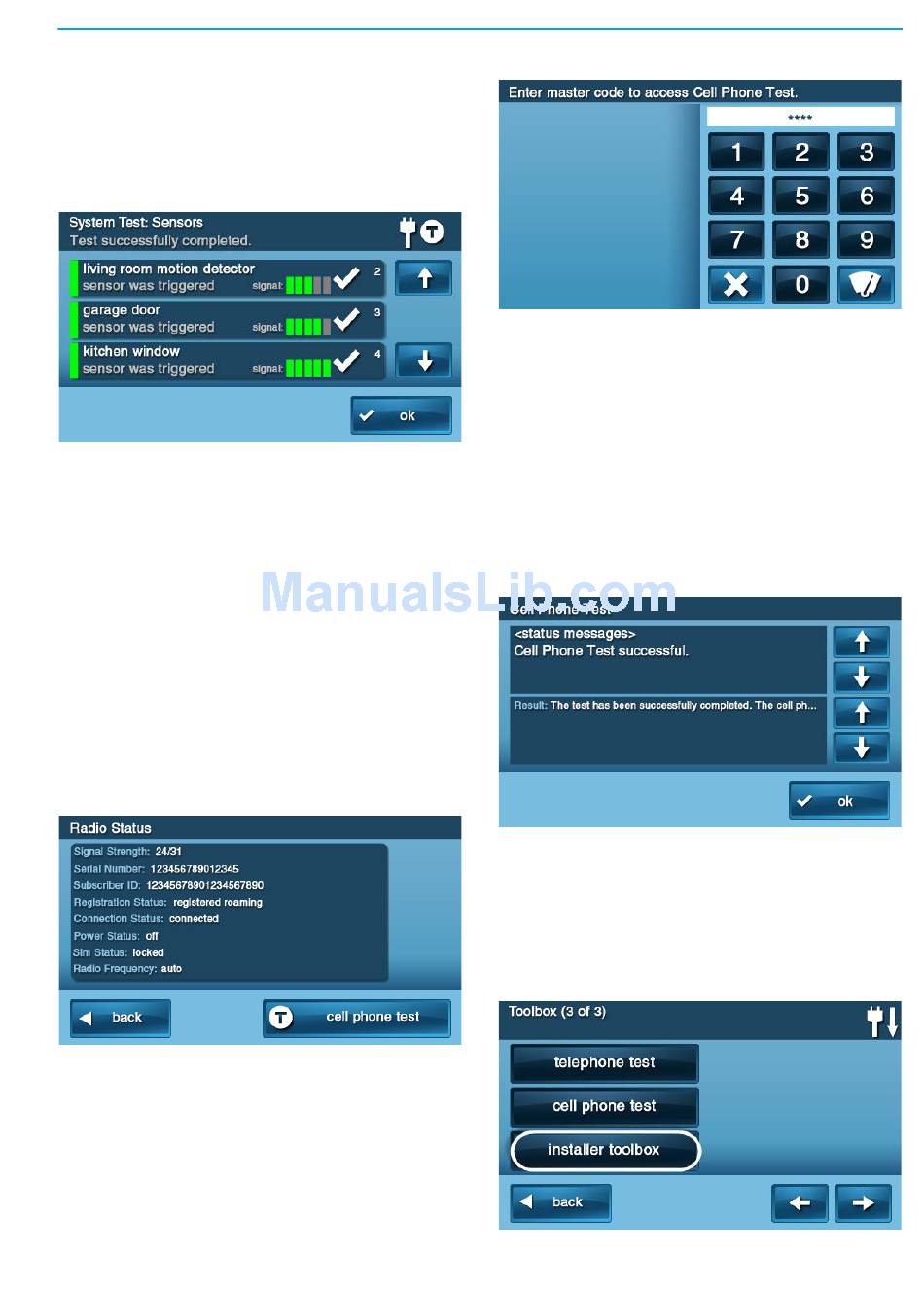

tested, press Ok. The Control Panel displays a
summary of the test results. To return to the
Installer Toolbox, press Ok.
RADIO STATUS MODE
The Cell Radio Module must be installed to use this
function.
The Cell Radio Status screen displays data for the
Cell radio (if installed). The screen displays signal
strength, serial number, registration status, and
other information about the cell radio module
status. The information may be helpful for radio
installation troubleshooting.
Cell Radio Test
To check the radio status, do the following:
1 From the Installer Toolbox screen, press the
Radio Status button.
2 Press the Cell Phone Test button.
Enter the Master User Code.
3
The Cell Phone Test Screen appears. Each test
4
item is displayed, followed with its current
condition. Scroll through the info screen with
the ↓ and ↑ arrows.
• Text is displayed in red if the tested signal
strength is zero or too low, or the cell radio
module is not registered.
• Text is displayed in orange if the connection is
idle and the cell radio module is registered.
• Text is displayed in green if the signal strength
is good and the cell radio module is registered.
When the test is complete, press Ok to return
5
to the Toolbox.
Telephone Test
The telephone test checks the land‐line connection
to the Central Station through the Control Panel's
built‐in digital communicator. The test is accessed
through the User Toolbox screen #3.
1 On toolbox screen #3, press the Telephone
Test button.
