Terminal Block Wiring Diagram - 2gig Technologies Go Control Install Manual

Peel off the adhesive backing from the power
2
supply retaining bracket and attach the
bracket to the outlet with a wall plate screw.
A Connect battery
B Align mounting plate inside of console bottom edge
C Swing console up and snap into the mounting plate
D Secure console with screw in retaining hole
Spread the retaining bracket ears and plug the
3
Control Panel's power supply into the un‐
switched outlet. Slots are provided on the
bracket to secure the power supply with a zip‐
tie.
After about 5 seconds, the Control Panel
4
indicates that power has been applied. If the
Control Panel does not power up, check the
power supply polarity.
1 Place the screw here for a bracket on a standard style outlet.
2 Place the screw here for a bracket on a decora style outlet.
Use the power supply retaining bracket
NOTE:
in the United States (and other countries
where it is required). Canada does not
require the power supply retaining
bracket.

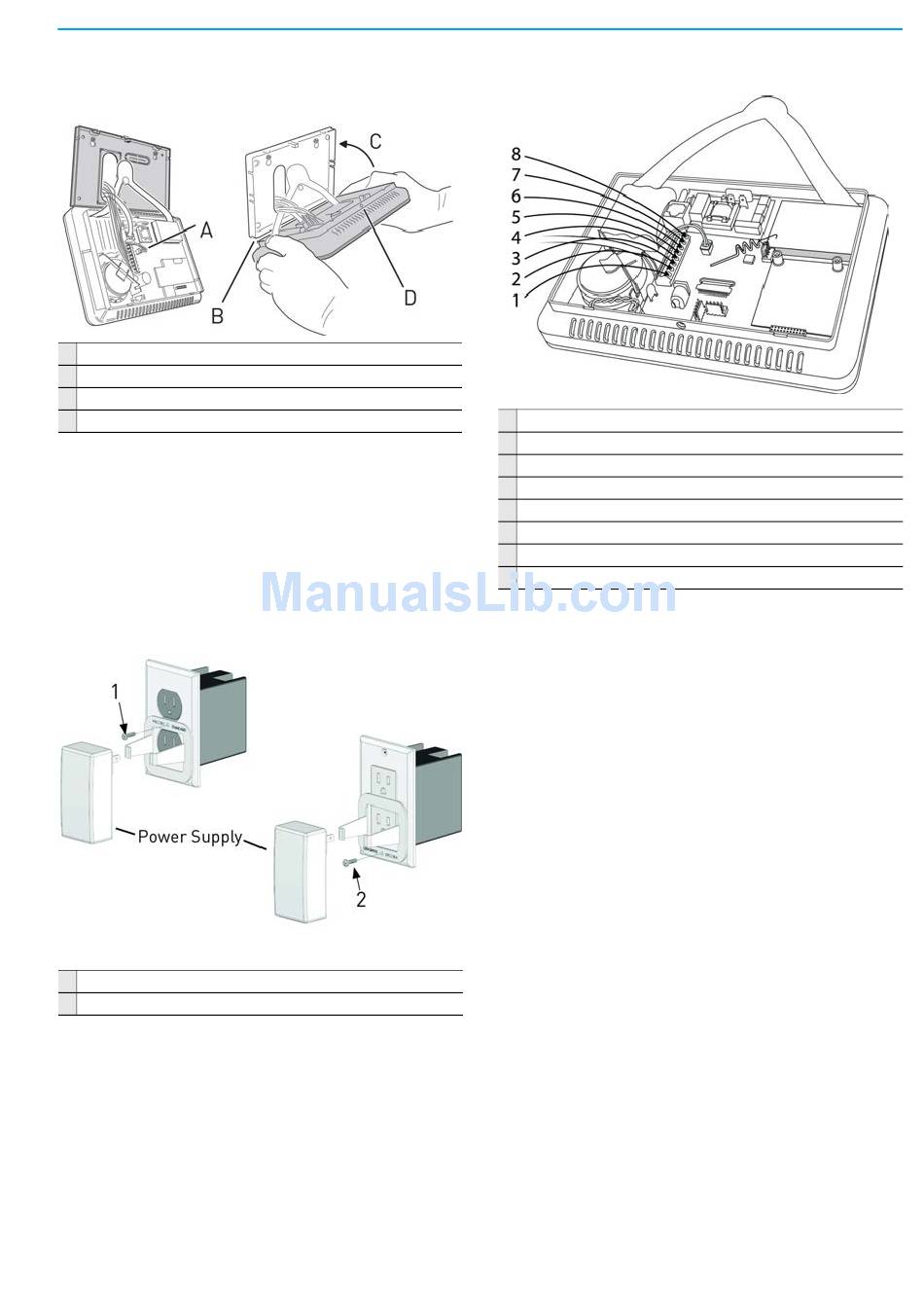

Terminal Block Wiring Diagram
1 +14 VDC
2 ‐14 VDC
3 GND
4 Open Collector
5 +Bell
6 ‐Bell
7 Hardwire 1
8 Hardwire 2
RECOMMENDED COMMERCIAL
INSTALLATIONS
Security systems installed in a commercial location
are for use only as a burglar alarm system and not
for fire protection.
NOTE: This security system is in compliance
with UL 681 (Burglar and Holdup Alarm
Systems) and UL 827 (Central Station
Alarm Services).
All entries and exits within a
NOTE:
commercial installation setup must be
protected according to UL 681 (Burglar
and Holdup Alarm Systems).
Stranded conductors clamped under wire‐binding
screws or similar parts shall have the individual
strands soldered together or arranged in a
construction that has been determined to be the
equivalent. Note that international requirements
do not allow stranded conductors to be soldered
together if they are to be clamped because of cold
flow of the solder. An approved type crimp
connector must be used or bare conductors
themselves must be inspected to ensure that there
are no stray wire strands.
See "Commercial Regulatory Listings" on page 62.
©2013 2GIG Technologies Inc. All Rights Reserved.
Installation Outline
15
