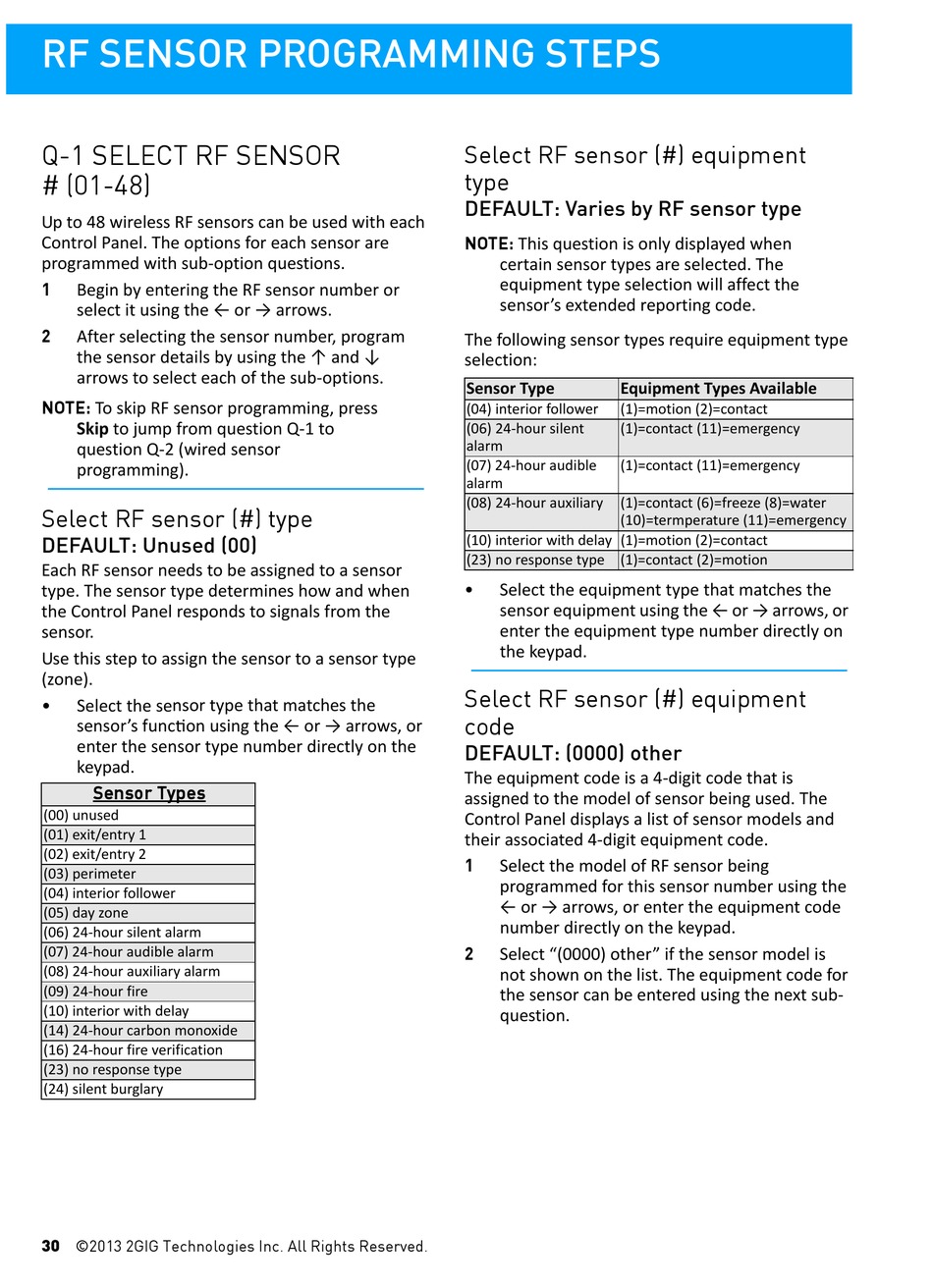

RF SENSOR PROGRAMMING STEPS

Q-1 SELECT RF SENSOR
# (01-48)
Up to 48 wireless RF sensors can be used with each
Control Panel. The options for each sensor are
programmed with sub‐option questions.
Begin by entering the RF sensor number or
1
select it using the ← or → arrows.
After selecting the sensor number, program
2
the sensor details by using the ↑ and ↓
arrows to select each of the sub‐options.
To skip RF sensor programming, press
NOTE:
Skip to jump from question Q‐1 to
question Q‐2 (wired sensor
programming).
Select RF sensor (#) type
DEFAULT: Unused (00)
Each RF sensor needs to be assigned to a sensor
type. The sensor type determines how and when
the Control Panel responds to signals from the
sensor.
Use this step to assign the sensor to a sensor type
(zone).
• Select the sensor type that matches the
sensor's func on using the ← or → arrows, or
enter the sensor type number directly on the
keypad.
Sensor Types
(00) unused
(01) exit/entry 1
(02) exit/entry 2
(03) perimeter
(04) interior follower
(05) day zone
(06) 24‐hour silent alarm
(07) 24‐hour audible alarm
(08) 24‐hour auxiliary alarm
(09) 24‐hour fire
(10) interior with delay
(14) 24‐hour carbon monoxide
(16) 24‐hour fire verification
(23) no response type
(24) silent burglary
30
©2013 2GIG Technologies Inc. All Rights Reserved.
Select RF sensor (#) equipment
type
DEFAULT: Varies by RF sensor type
NOTE: This question is only displayed when
certain sensor types are selected. The
equipment type selection will affect the
sensor's extended reporting code.
The following sensor types require equipment type
selection:
Sensor Type Equipment Types Available
(04) interior follower (1)=motion (2)=contact
(06) 24‐hour silent (1)=contact (11)=emergency
alarm
(07) 24‐hour audible (1)=contact (11)=emergency
alarm
(08) 24‐hour auxiliary (1)=contact (6)=freeze (8)=water
(10)=termperature (11)=emergency
(10) interior with delay (1)=motion (2)=contact
(23) no response type (1)=contact (2)=motion
• Select the equipment type that matches the
sensor equipment using the ← or → arrows, or
enter the equipment type number directly on
the keypad.
Select RF sensor (#) equipment
code
DEFAULT: (0000) other
The equipment code is a 4‐digit code that is
assigned to the model of sensor being used. The
Control Panel displays a list of sensor models and
their associated 4‐digit equipment code.
Select the model of RF sensor being
1
programmed for this sensor number using the
← or → arrows, or enter the equipment code
number directly on the keypad.
2 Select "(0000) other" if the sensor model is
not shown on the list. The equipment code for
the sensor can be entered using the next sub‐
question.
