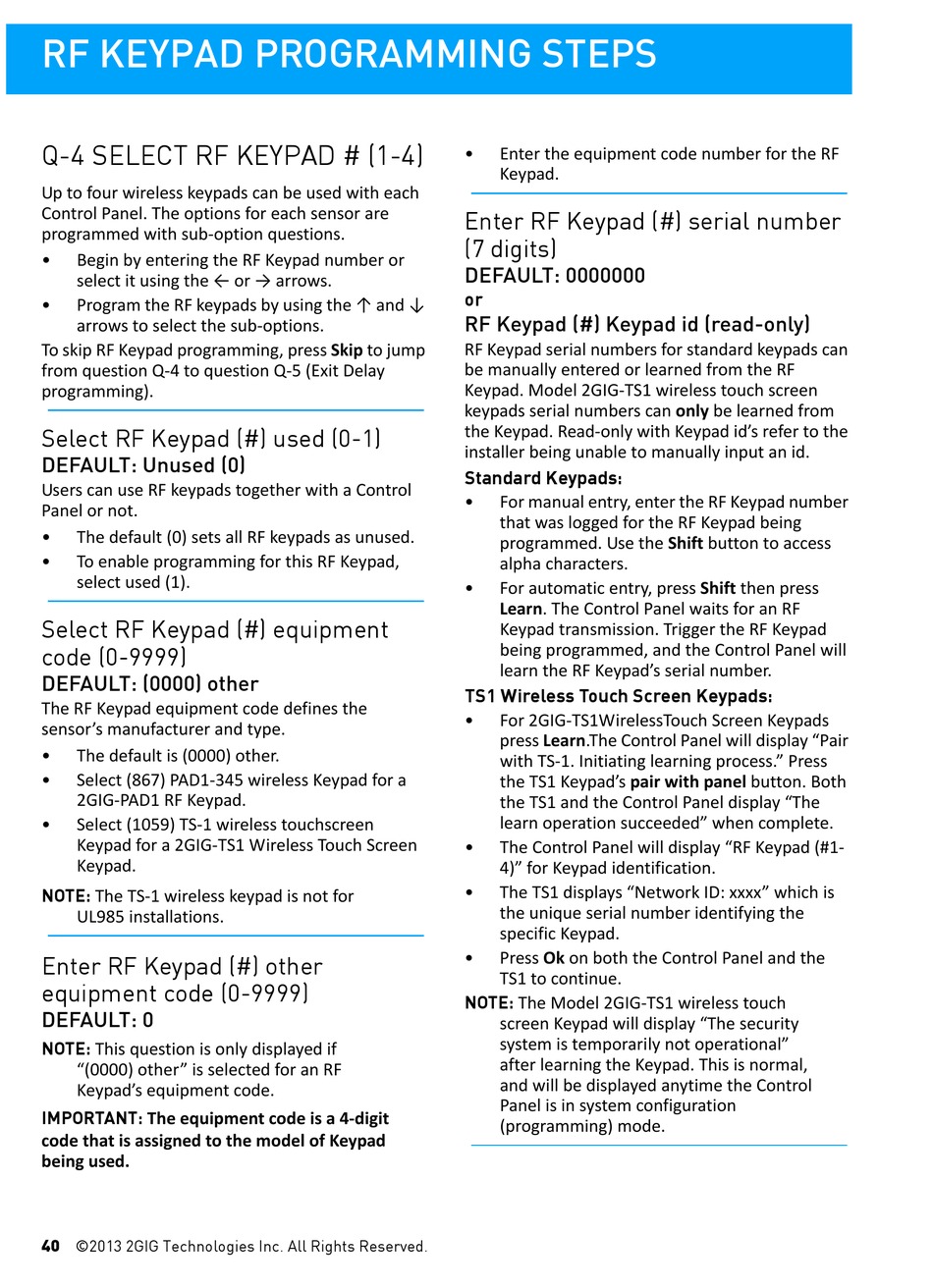

RF KEYPAD PROGRAMMING STEPS

Q-4 SELECT RF KEYPAD # (1-4)
Up to four wireless keypads can be used with each
Control Panel. The options for each sensor are
programmed with sub‐option questions.
• Begin by entering the RF Keypad number or
select it using the ← or → arrows.
• Program the RF keypads by using the ↑ and ↓
arrows to select the sub‐options.
To skip RF Keypad programming, press Skip to jump
from question Q‐4 to question Q‐5 (Exit Delay
programming).
Select RF Keypad (#) used (0-1)
DEFAULT: Unused (0)
Users can use RF keypads together with a Control
Panel or not.
• The default (0) sets all RF keypads as unused.
• To enable programming for this RF Keypad,
select used (1).
Select RF Keypad (#) equipment
code (0-9999)
DEFAULT: (0000) other
The RF Keypad equipment code defines the
sensor's manufacturer and type.
• The default is (0000) other.
• Select (867) PAD1‐345 wireless Keypad for a
2GIG‐PAD1 RF Keypad.
• Select (1059) TS‐1 wireless touchscreen
Keypad for a 2GIG‐TS1 Wireless Touch Screen
Keypad.
The TS‐1 wireless keypad is not for
NOTE:
UL985 installations.
Enter RF Keypad (#) other
equipment code (0-9999)
DEFAULT: 0
This question is only displayed if
NOTE:
"(0000) other" is selected for an RF
Keypad's equipment code.
The equipment code is a 4‐digit
IMPORTANT:
code that is assigned to the model of Keypad
being used.
40
©2013 2GIG Technologies Inc. All Rights Reserved.
• Enter the equipment code number for the RF
Keypad.
Enter RF Keypad (#) serial number
(7 digits)
DEFAULT: 0000000
or
RF Keypad (#) Keypad id (read-only)
RF Keypad serial numbers for standard keypads can
be manually entered or learned from the RF
Keypad. Model 2GIG‐TS1 wireless touch screen
keypads serial numbers can only be learned from
the Keypad. Read‐only with Keypad id's refer to the
installer being unable to manually input an id.
Standard Keypads:
• For manual entry, enter the RF Keypad number
that was logged for the RF Keypad being
programmed. Use the Shift button to access
alpha characters.
• For automatic entry, press Shift then press
Learn. The Control Panel waits for an RF
Keypad transmission. Trigger the RF Keypad
being programmed, and the Control Panel will
learn the RF Keypad's serial number.
TS1 Wireless Touch Screen Keypads:
• For 2GIG‐TS1WirelessTouch Screen Keypads
press Learn.The Control Panel will display "Pair
with TS‐1. Initiating learning process." Press
the TS1 Keypad's pair with panel button. Both
the TS1 and the Control Panel display "The
learn operation succeeded" when complete.
• The Control Panel will display "RF Keypad (#1‐
4)" for Keypad identification.
• The TS1 displays "Network ID: xxxx" which is
the unique serial number identifying the
specific Keypad.
• Press Ok on both the Control Panel and the
TS1 to continue.
NOTE: The Model 2GIG‐TS1 wireless touch
screen Keypad will display "The security
system is temporarily not operational"
after learning the Keypad. This is normal,
and will be displayed anytime the Control
Panel is in system configuration
(programming) mode.
