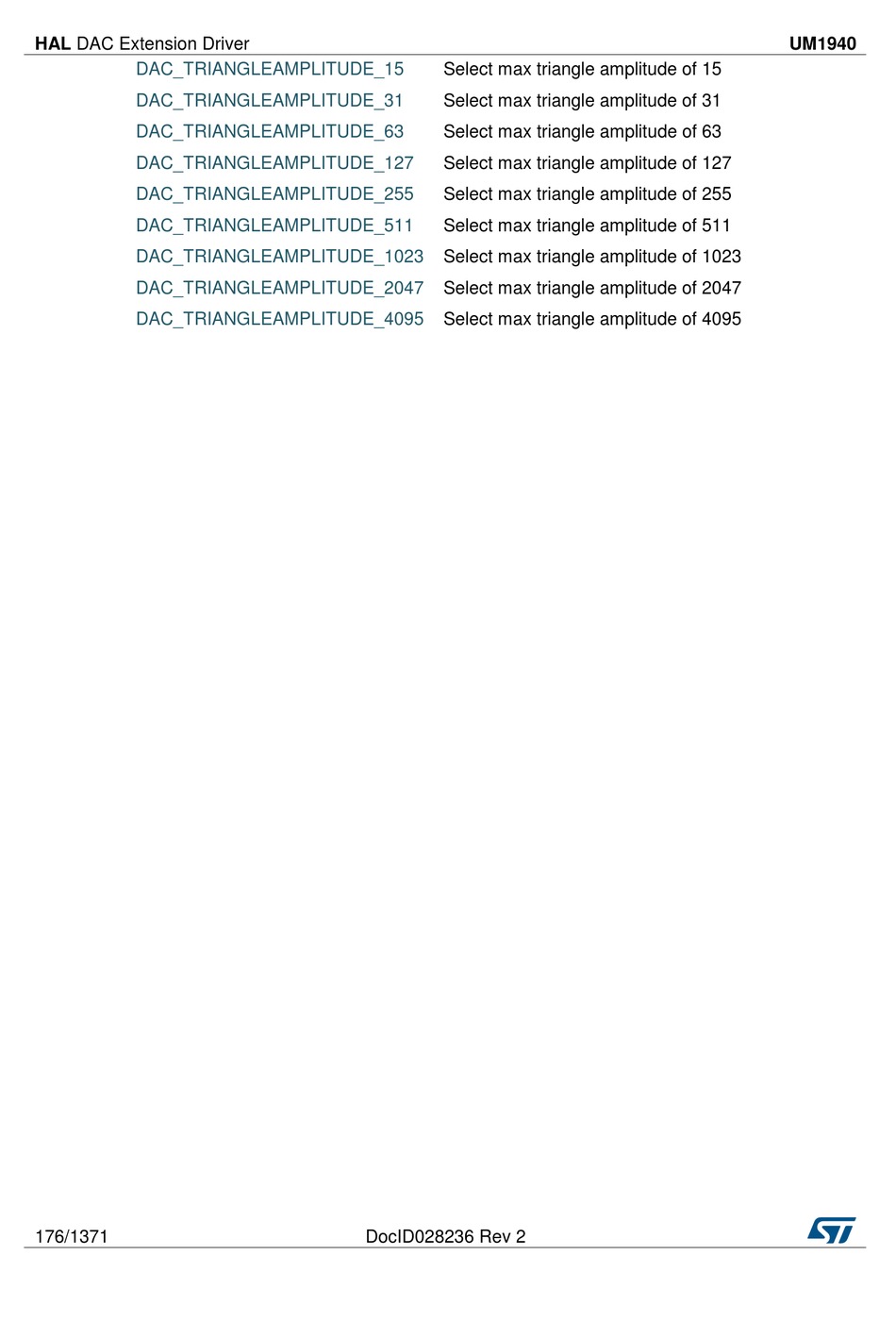

HAL DAC Extension Driver

DAC_TRIANGLEAMPLITUDE_15

DAC_TRIANGLEAMPLITUDE_31

DAC_TRIANGLEAMPLITUDE_63

DAC_TRIANGLEAMPLITUDE_127

DAC_TRIANGLEAMPLITUDE_255

DAC_TRIANGLEAMPLITUDE_511

DAC_TRIANGLEAMPLITUDE_1023

DAC_TRIANGLEAMPLITUDE_2047

DAC_TRIANGLEAMPLITUDE_4095

Select max triangle amplitude of 15

Select max triangle amplitude of 31

Select max triangle amplitude of 63

Select max triangle amplitude of 127

Select max triangle amplitude of 255

Select max triangle amplitude of 511

Select max triangle amplitude of 1023

Select max triangle amplitude of 2047

Select max triangle amplitude of 4095

DocID028236 Rev 2
