Install the Server (4-Post, 19-Inch Hardmount Rack Kit)

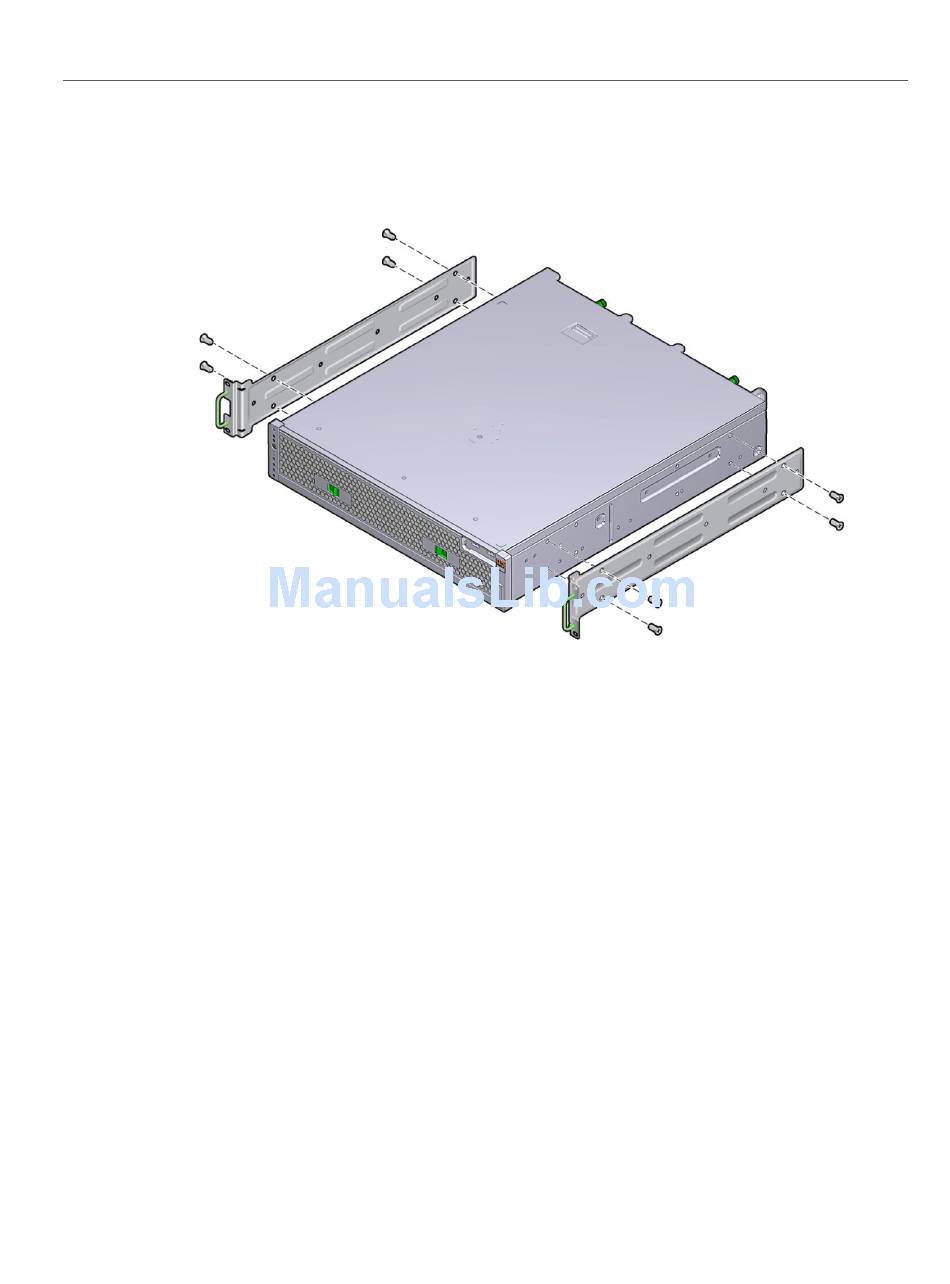

Use four M5 x 4.5 mm flathead Phillips screws for each bracket.

Measure the depth of the rack.

The measurement is used in the next step.

Install the rear mount support brackets at the rear of the server, extending the

rear mount support brackets to the measured depth of the rack.

Netra Server X5-2 Installation Guide • June 2016
