Install the Server (2-Post, 19-Inch Hardmount Rack Kit)

The screw heads should be facing the rear of the server. The other side of the rear plate

should be in front of the rack post.

Tighten the screws to secure the rear plate to the set of eyelets on the side

bracket.

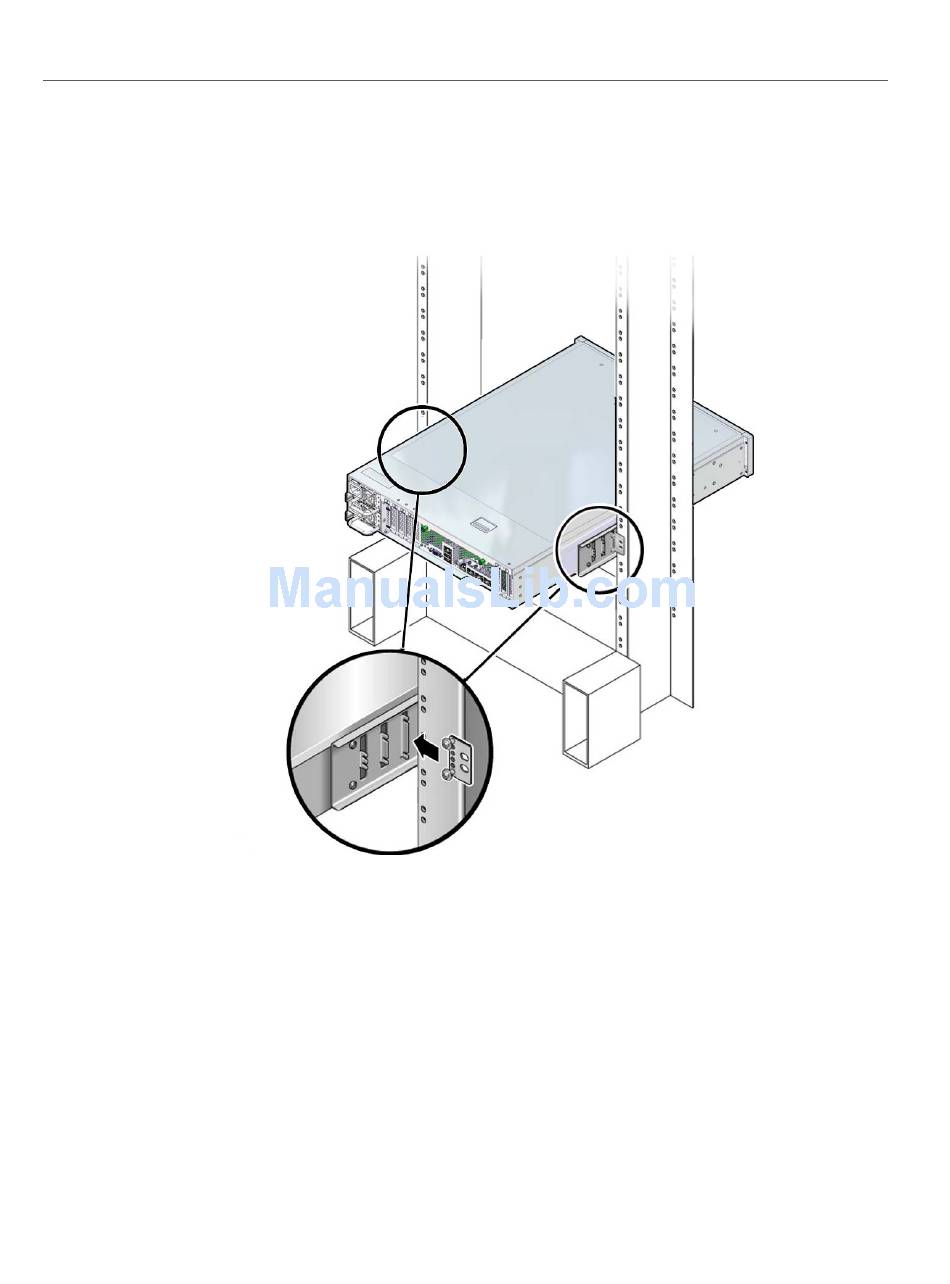

Secure the other side of the rear plates to the back of the posts.

Installing the Server
